4F50N

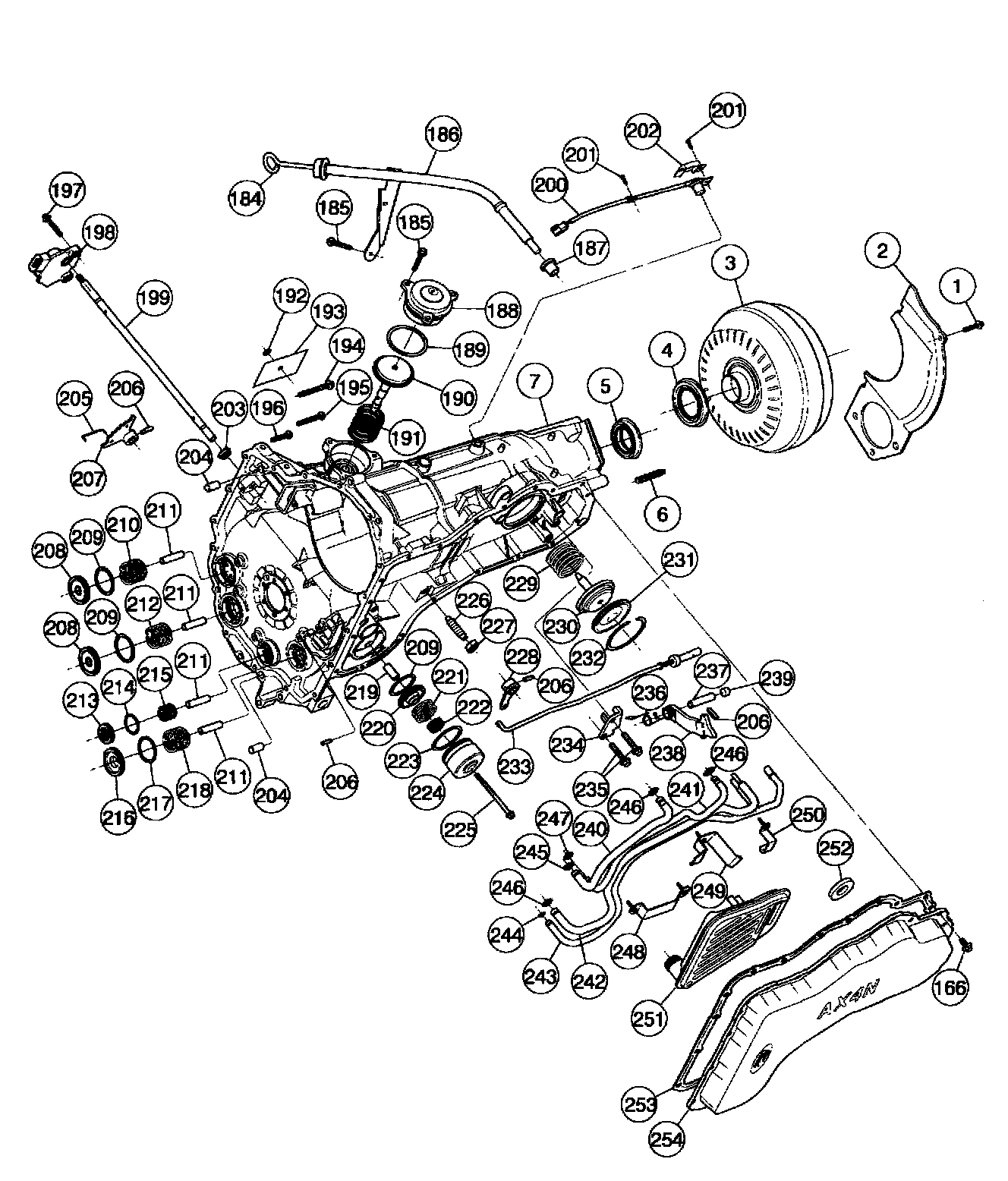

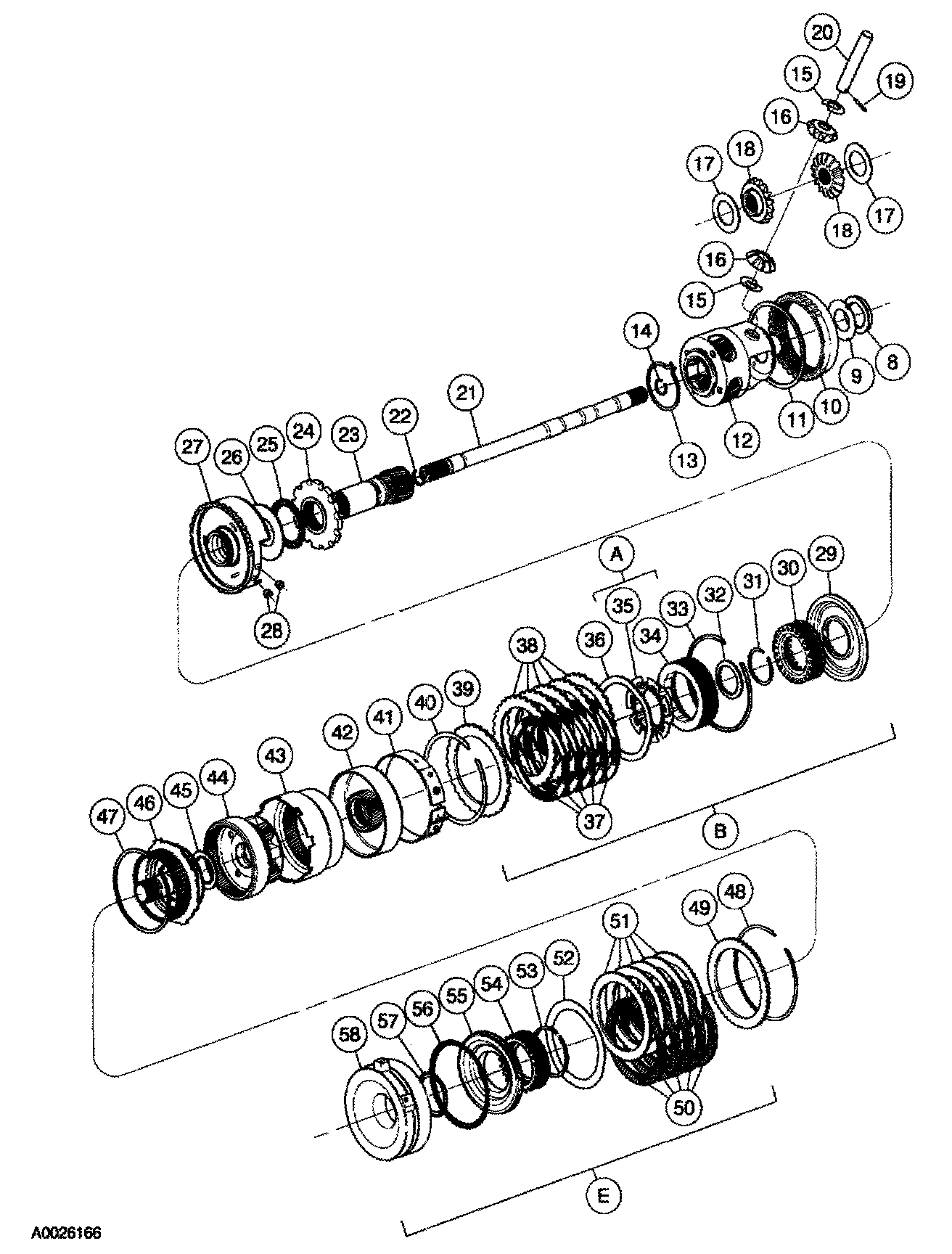

Disassembled Views

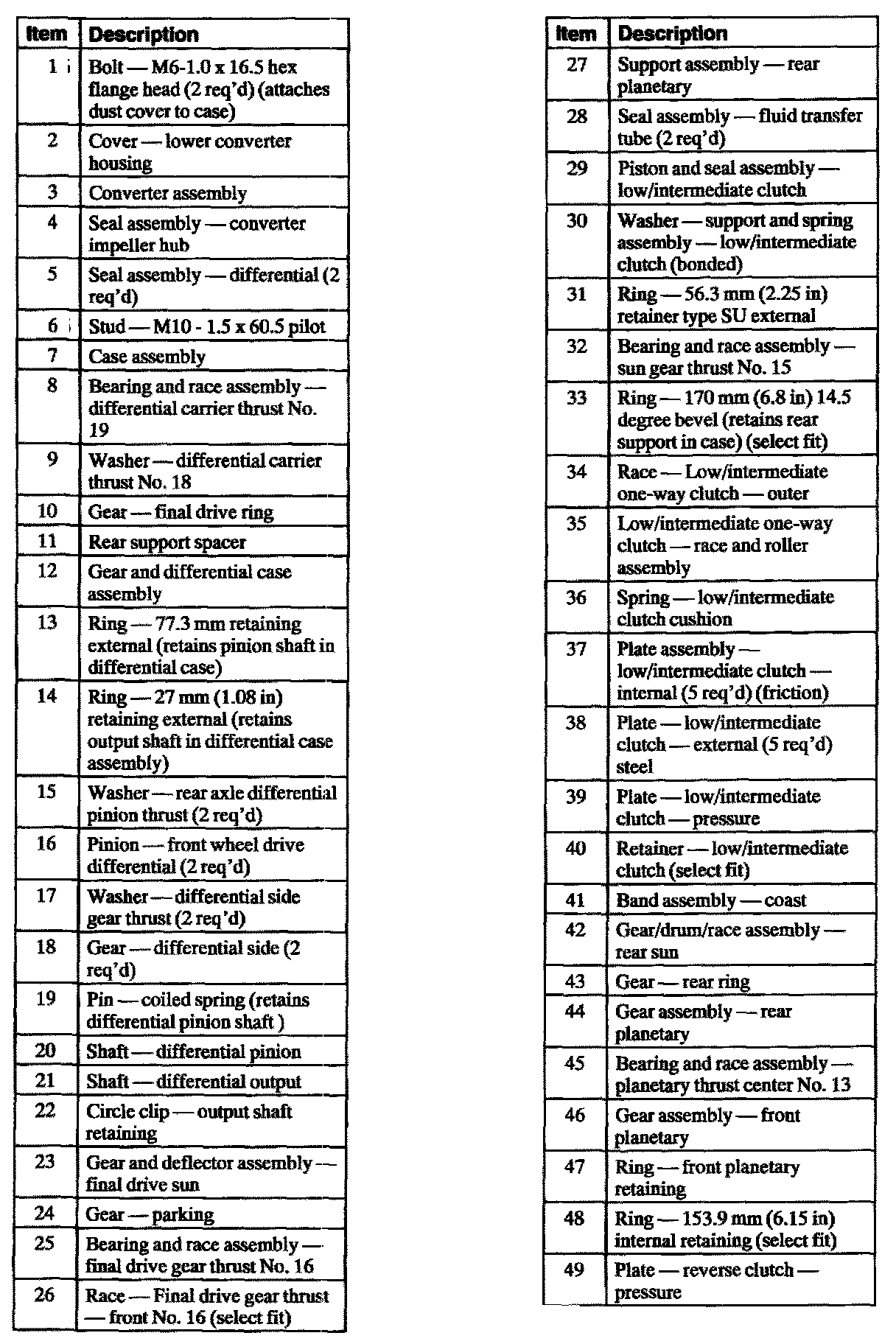

Step 1 - 49

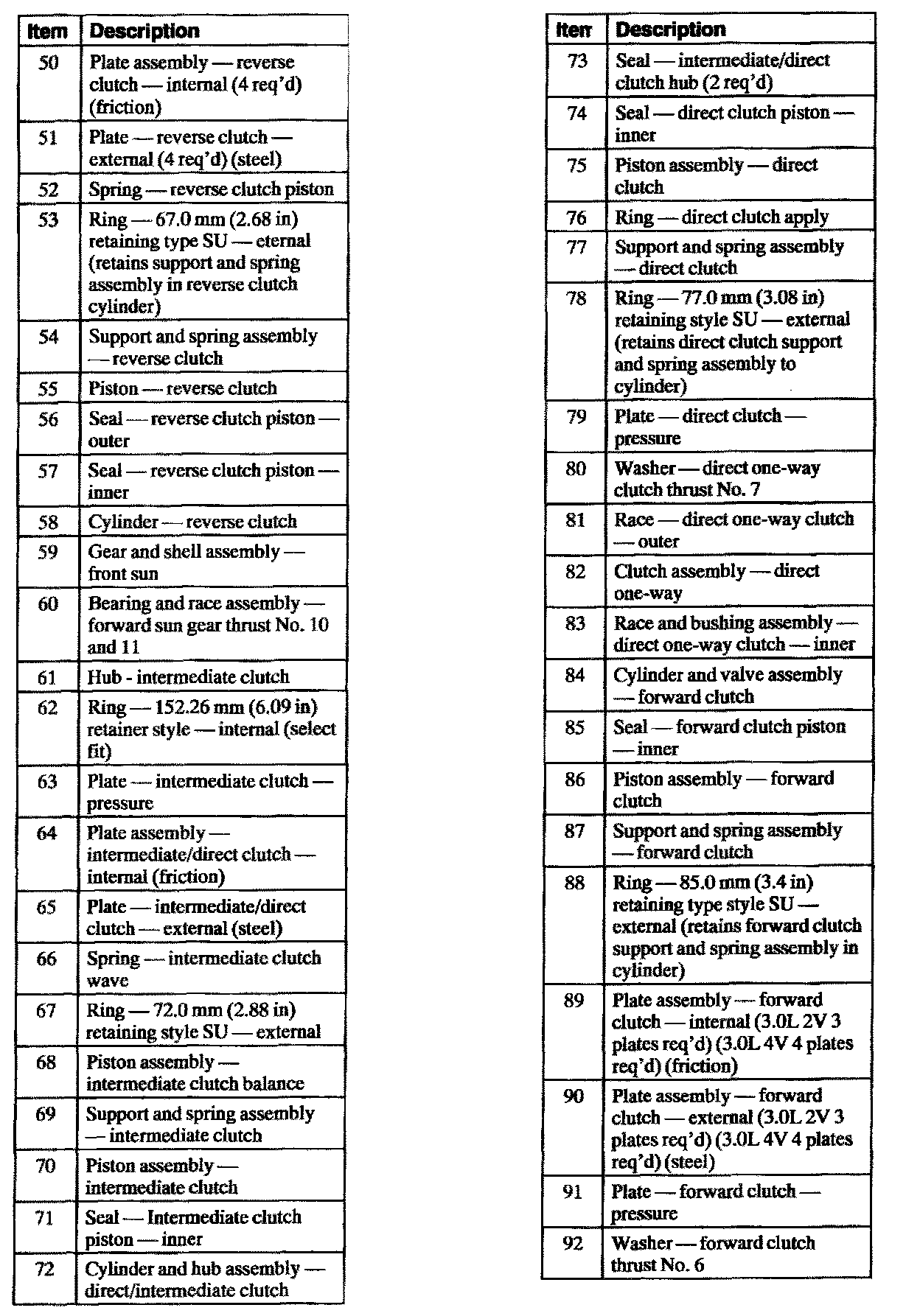

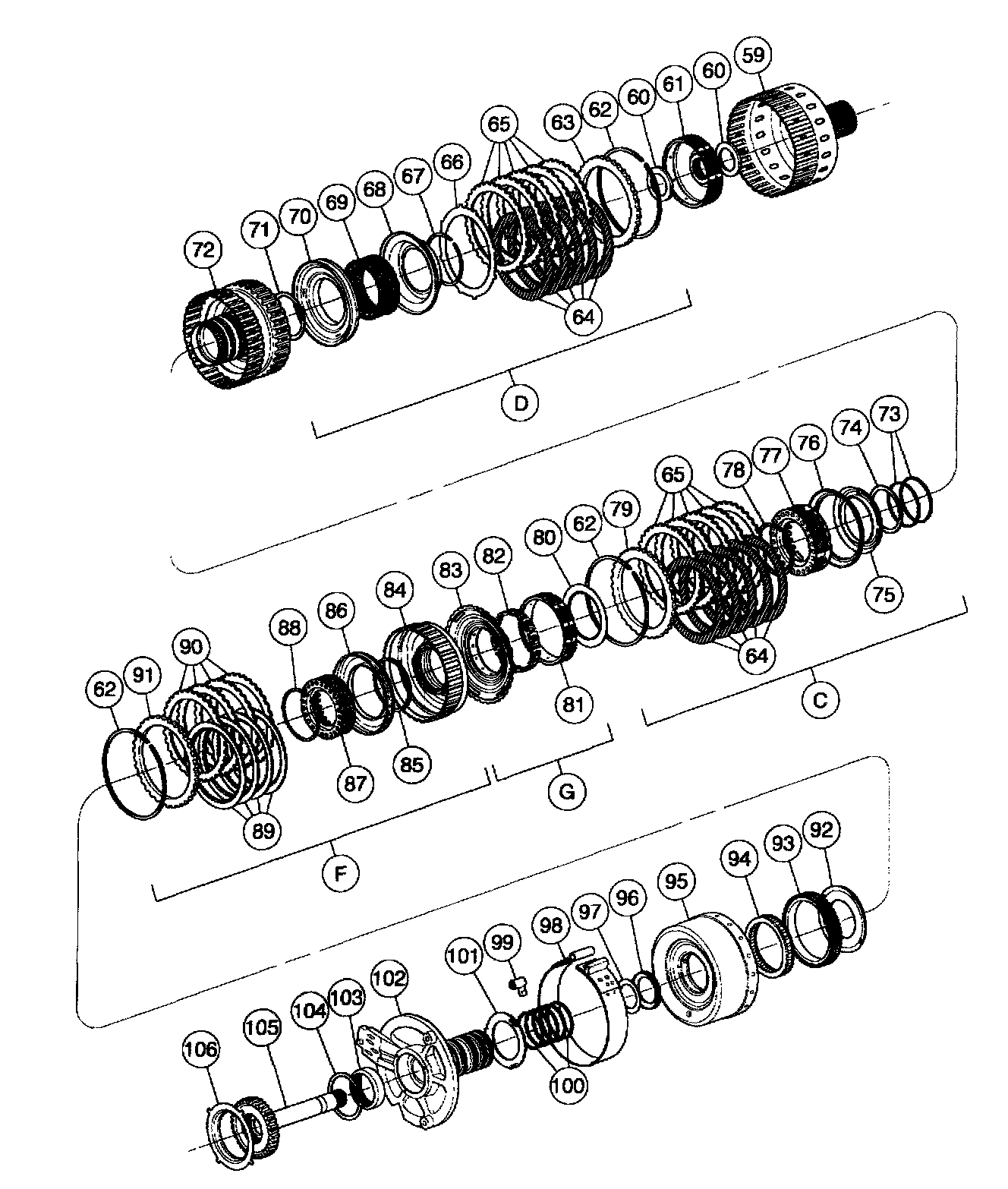

Step 50 - 92

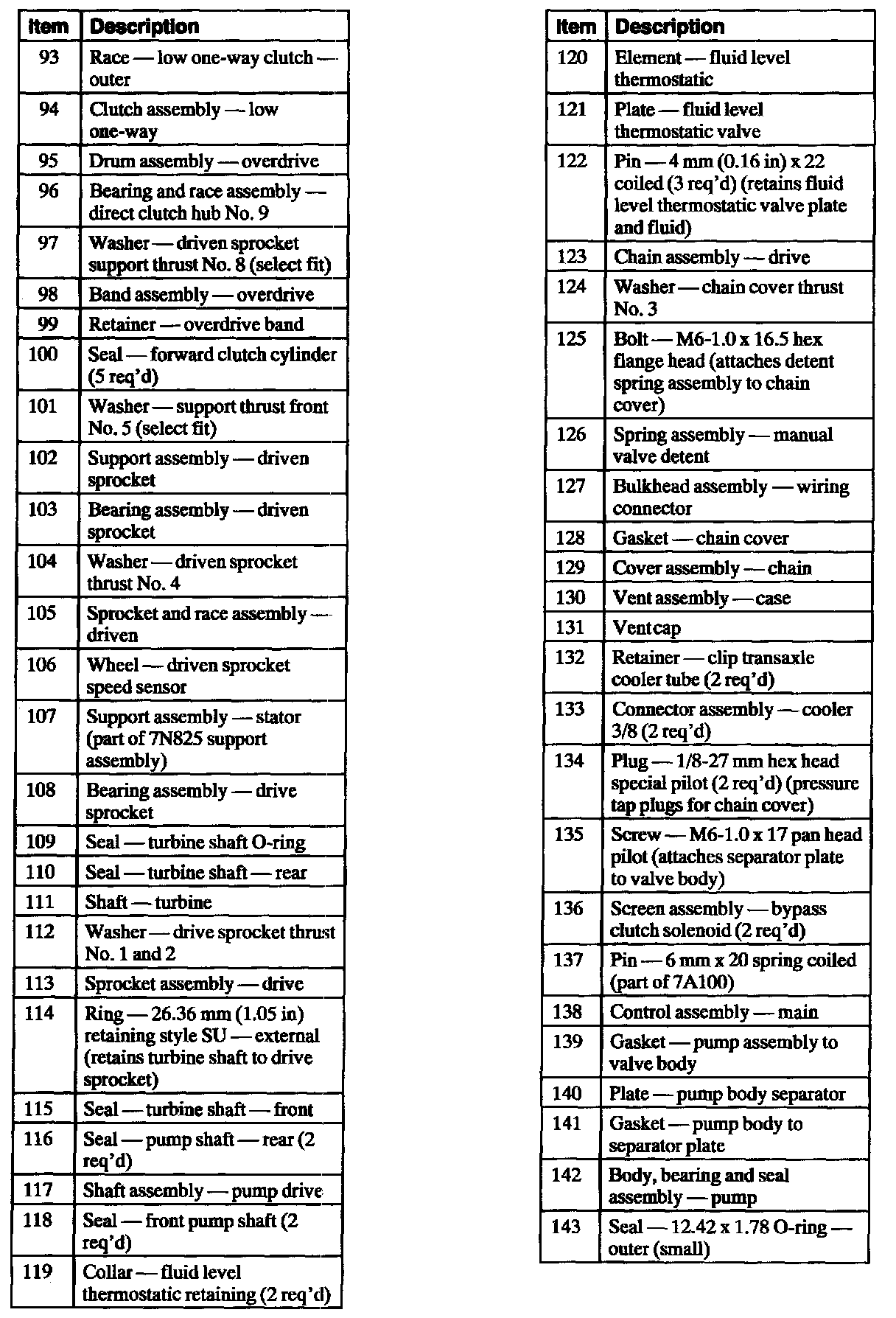

Step 93 - 143

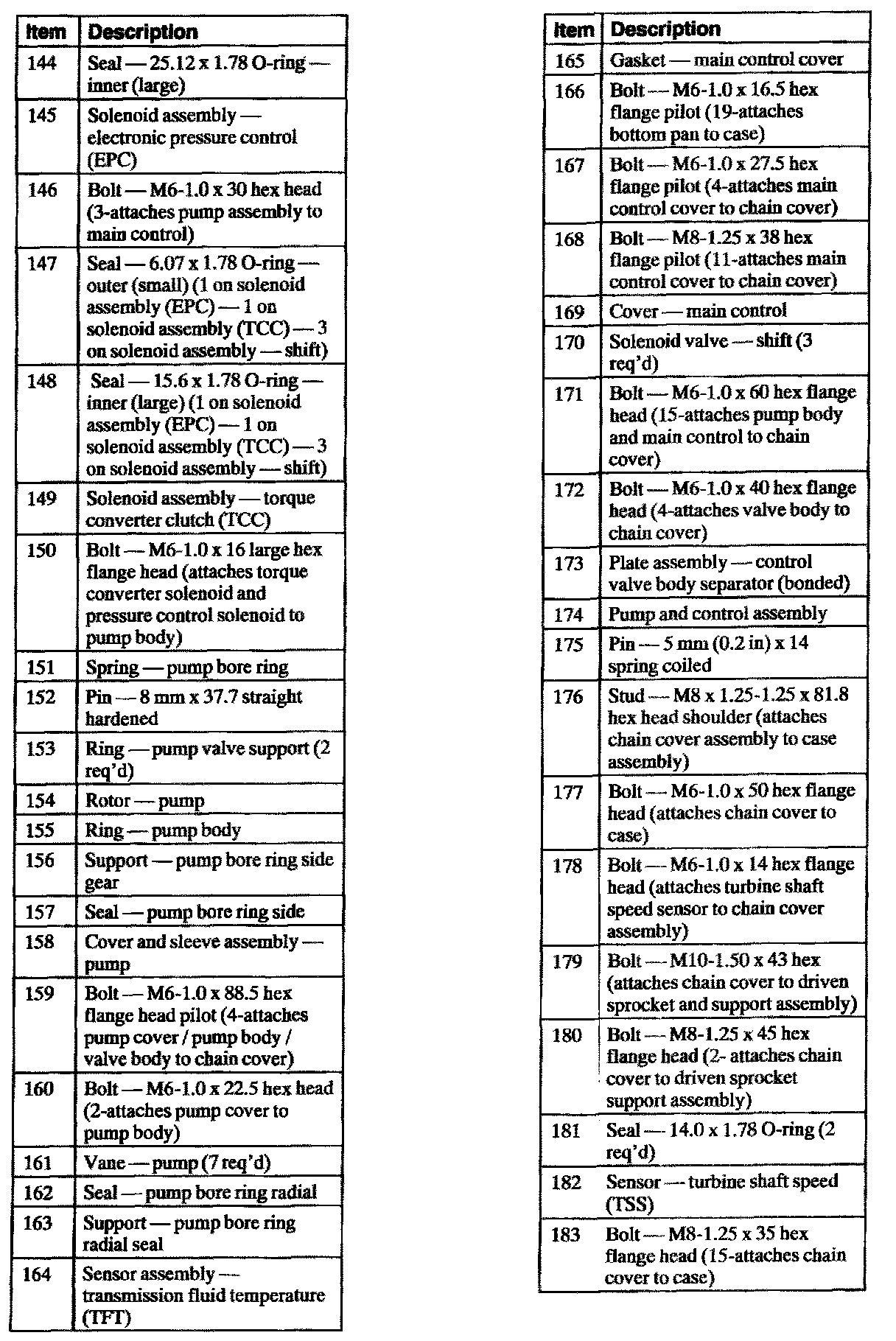

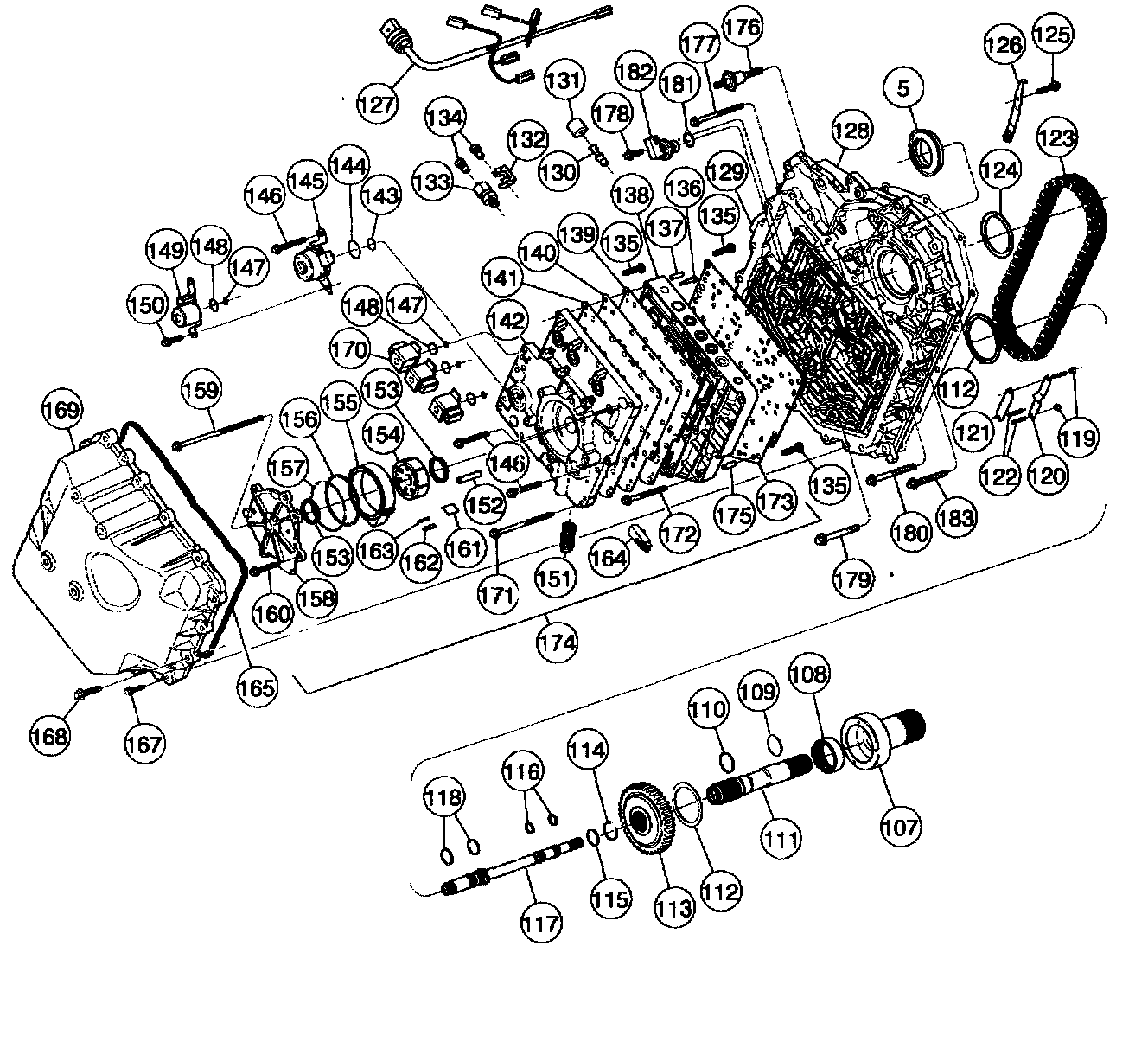

Step 144 - 183

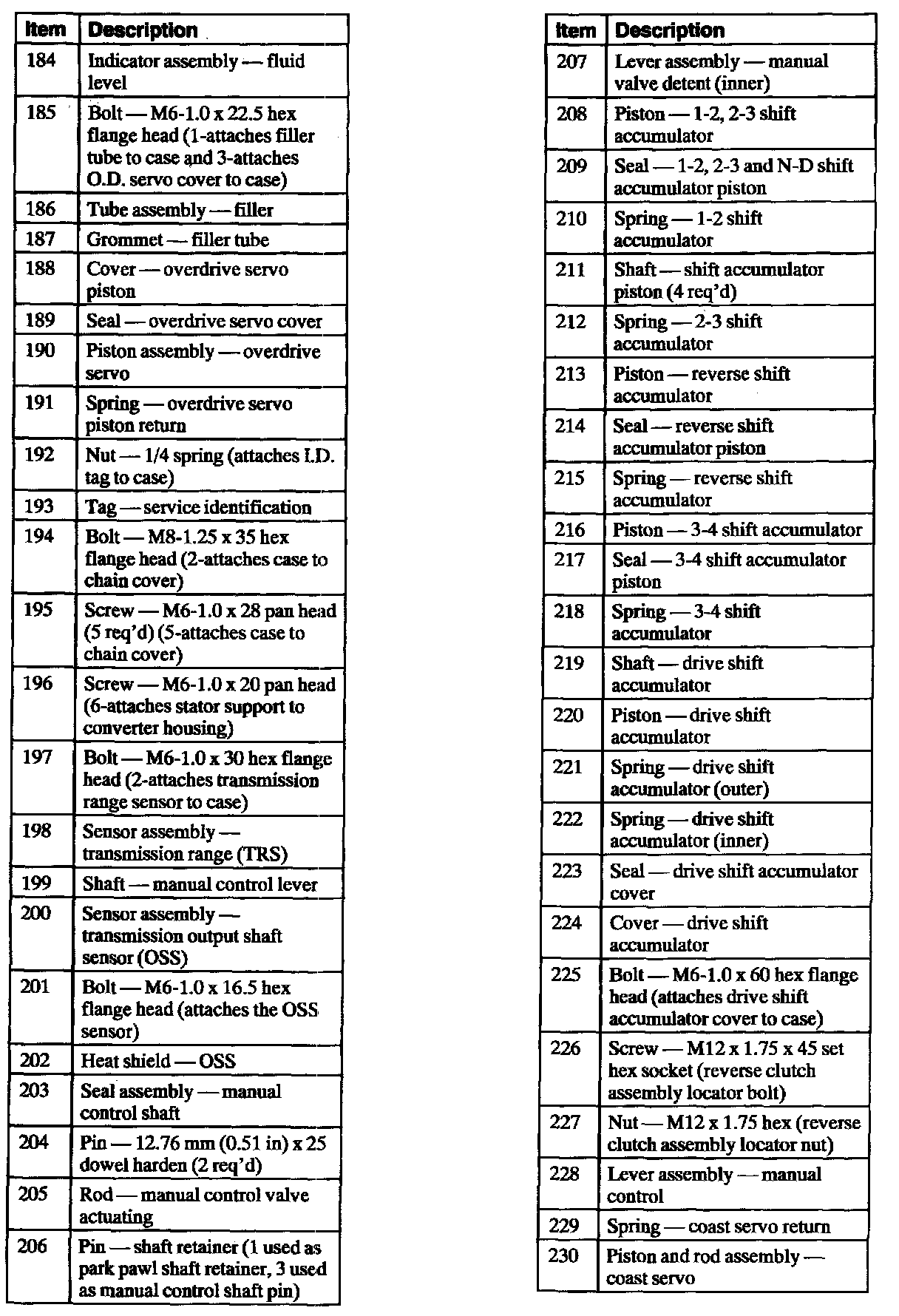

Step 184 - 230

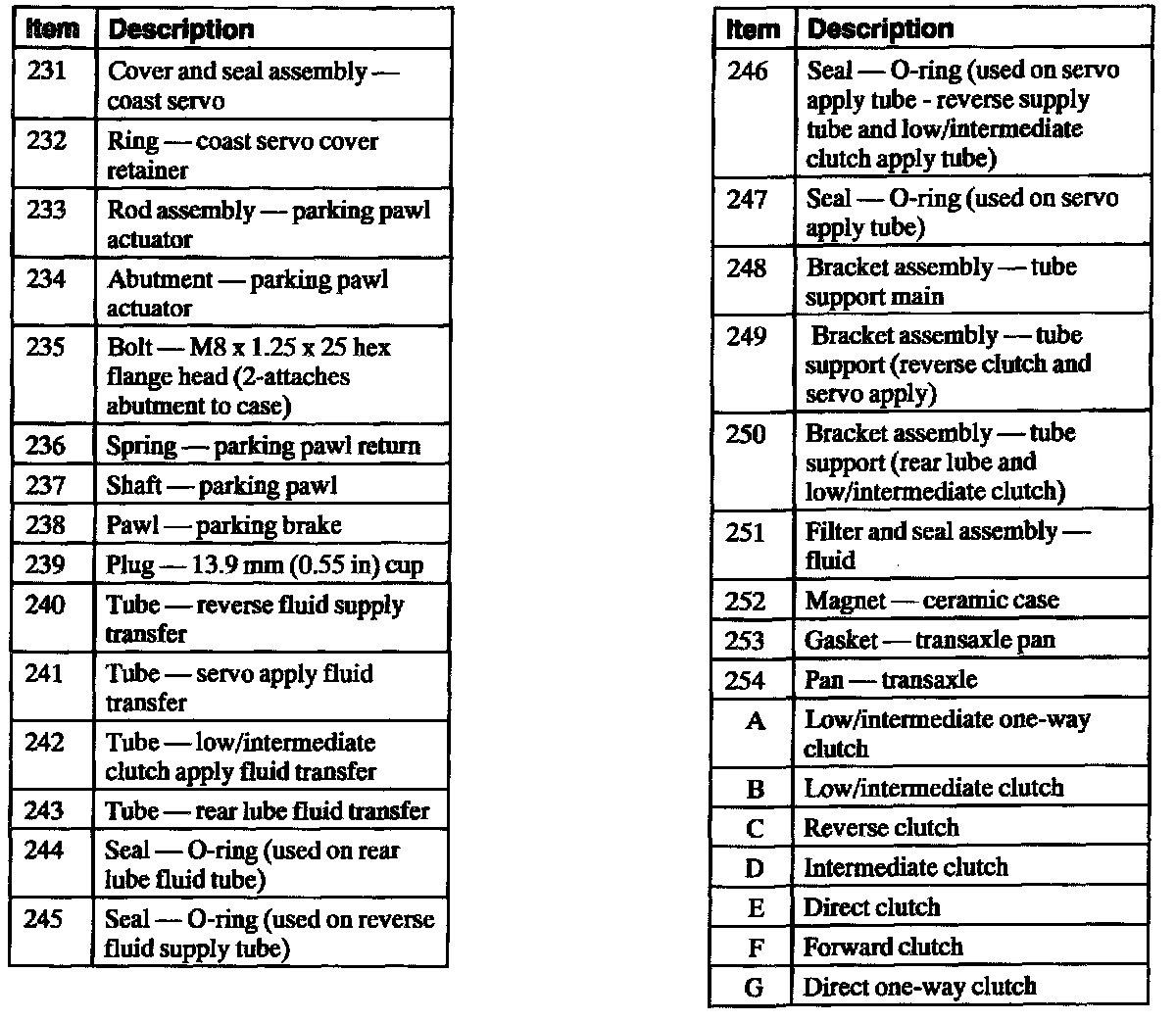

Step 231 - G
