Home >> Ford >> 2002 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Major Upper Engine Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

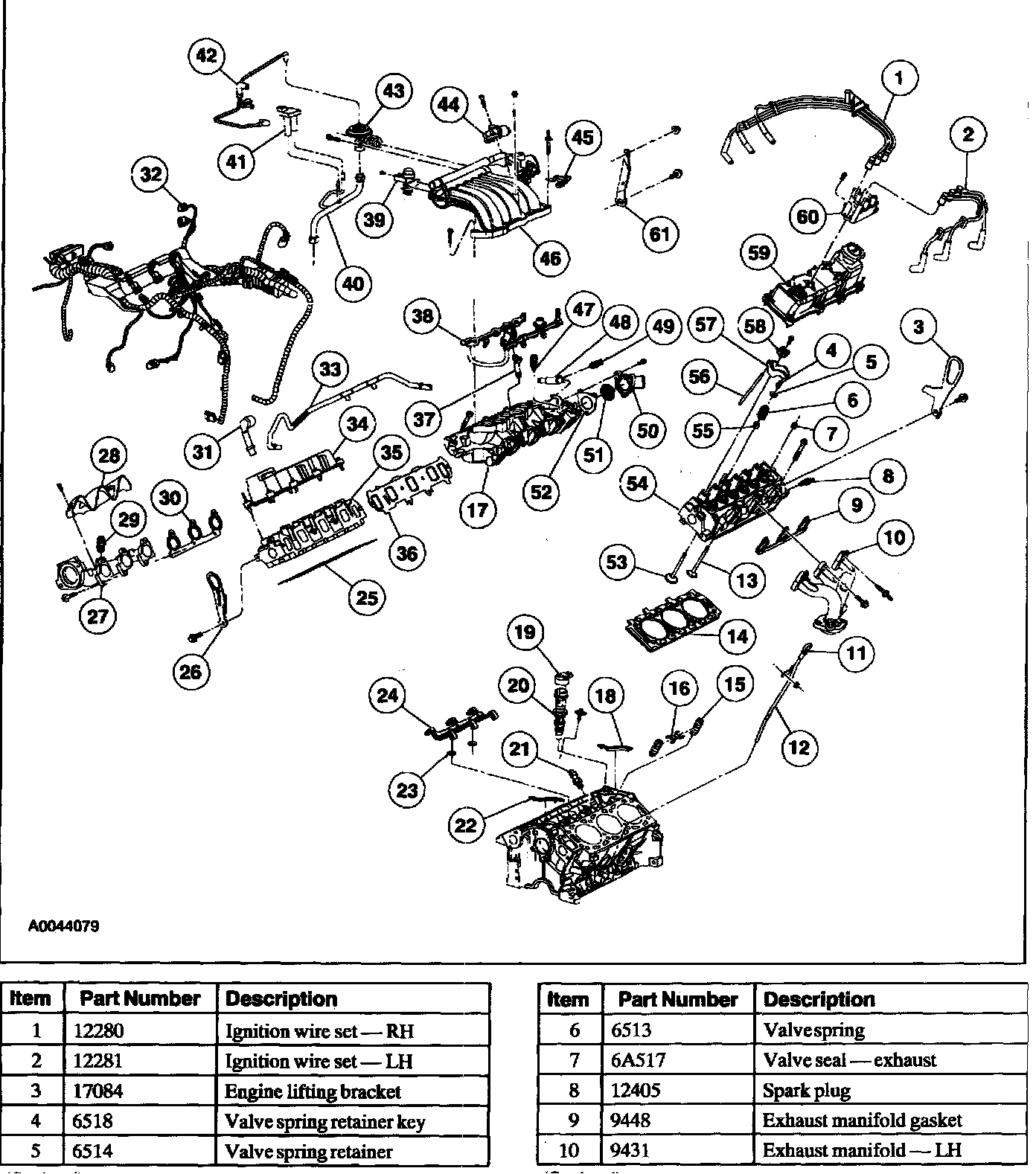

Major Upper Engine Components

Major Upper Engine Components

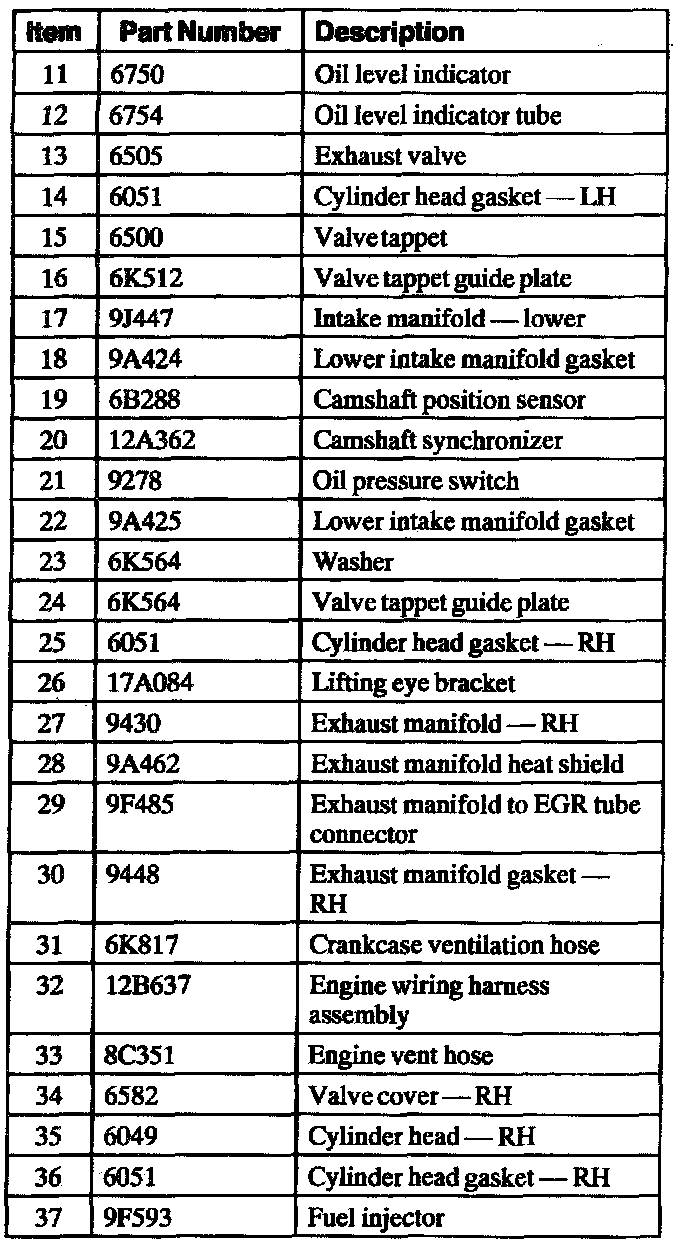

Part 1 of 3

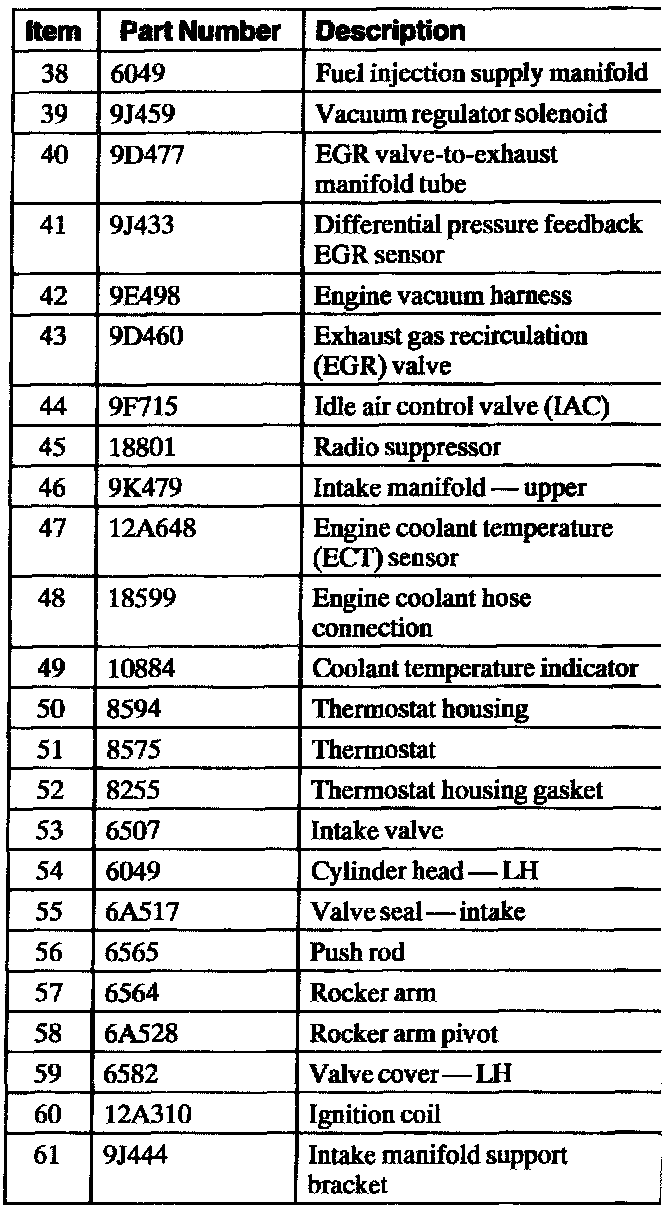

Part 2 of 3





Part 3 of 3
