Blower Motor Speed Control

REMOVAL

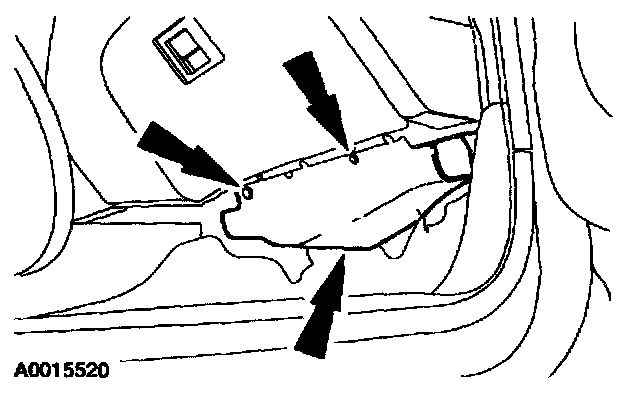

1. Remove the right-side instrument panel insulator.

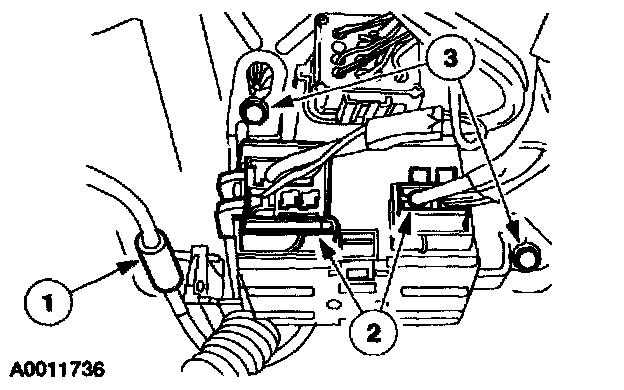

2. Remove the blower motor speed control.
1 Disconnect the vacuum line.
2 Disconnect the electrical connectors.
3 Remove the screws and the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
