Sedan

Rear Toe Adjustment-Sedan





1. Loosen the nuts approximately one full turn.

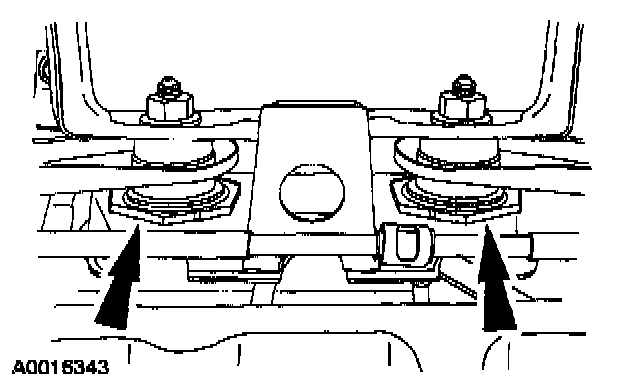

2. Rotate the adjusting cam to achieve the specified toe setting.

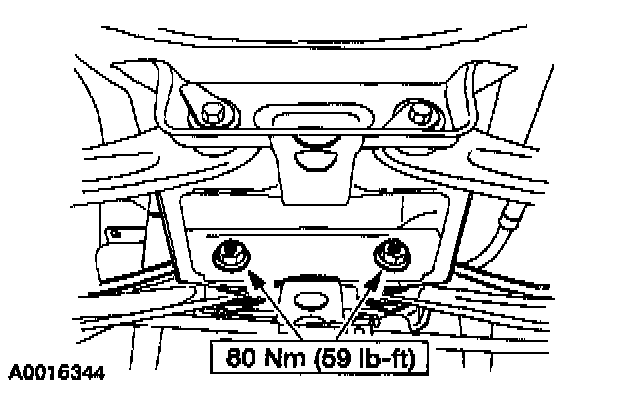

3. CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.





While holding the adjusting cam, tighten the nuts.
