System Specifications
Item SpecificationBattery
Manufacturer Motorcraft
Voltage 12 volts
Amps at -17.7°C (0°F) Cold Crank 650
Reserve Capacity 130 minutes
Amps/hrs. -20 hour rate 72
Generator
Current Output 105 amps @ 6,000 gen rpm
Type 6G with internal voltage regulator
Pulley Ratio 2.58 (3.0L 2V); 2.06 (3.0L 4V)

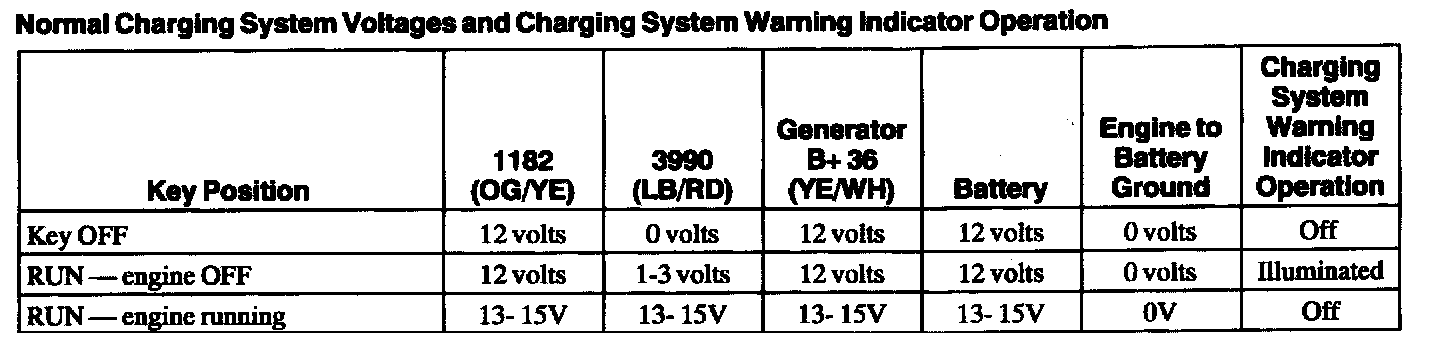

NORMAL CHARGING SYSTEM VOLTAGES CHART
Normal Charging System Voltages And Charging System Warning Indicator Operation:
