4F50N

SPECIFICATIONS

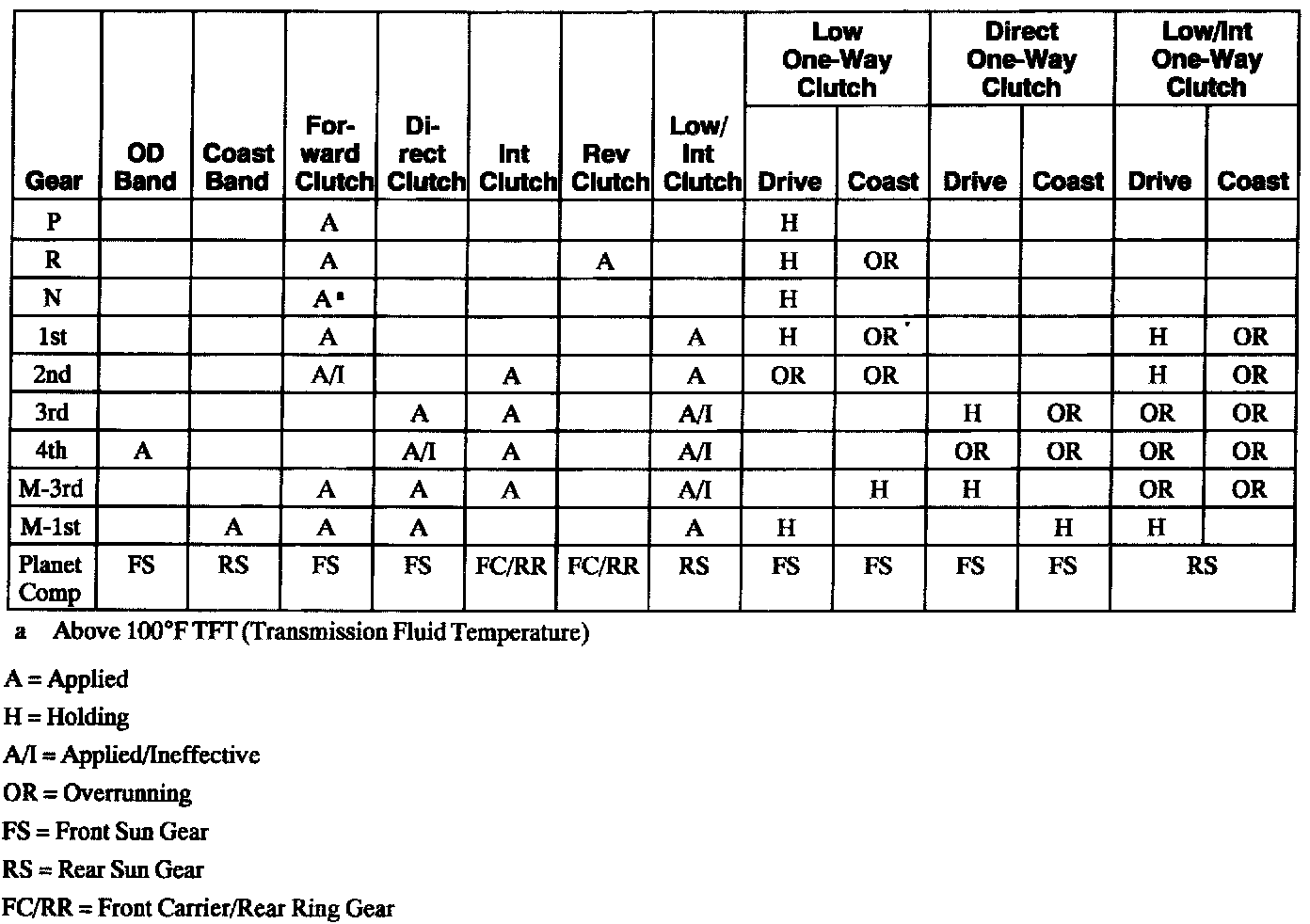

Band And Clutch Application Chart

a Above 100�F TFT (Transmission Fluid Temperature)
A = Applied
H = Holding
A/I = Applied/Ineffective
OR = Overrunning
FS = Front Sun Gear
RS = Rear Sun Gear
FC/RR = Front Carrier/Rear Ring Gear

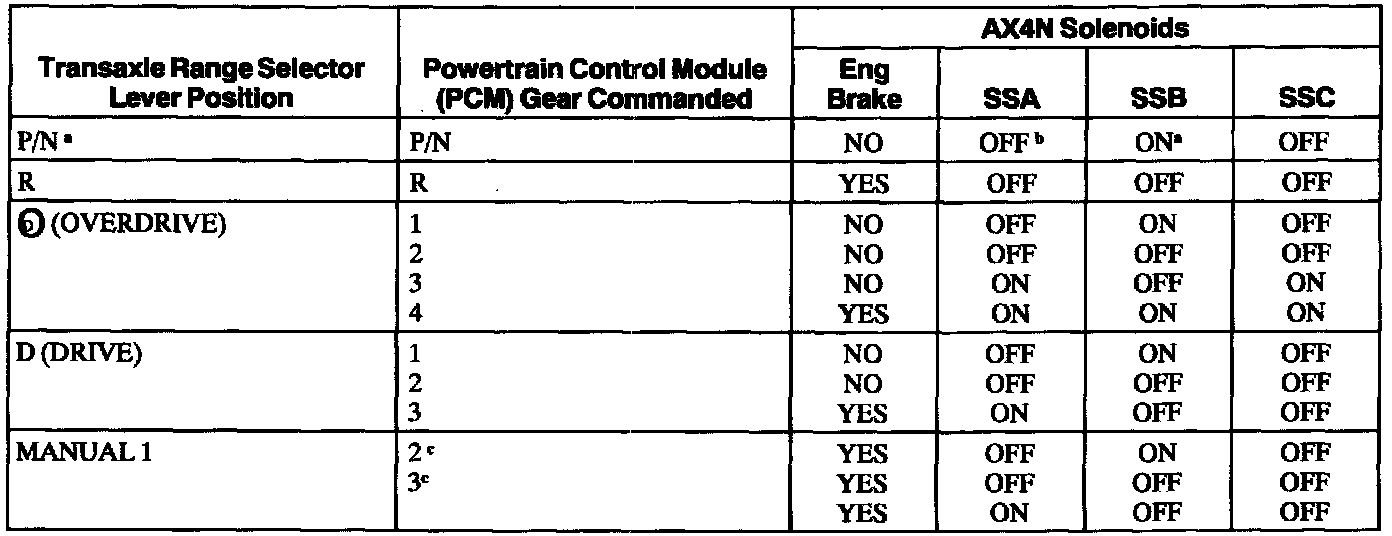

Shift Solenoid Operation Chart

a. When transmission fluid temperature is below 50° then SSA=OFF, SSB=ON, SSC=ON to prevent cold creep.
b. Not contributing to power flow.
c. When a manual pull-in occurs above calibrated speed the transaxle will downshift from the higher gear until the vehicle speed drops below this calibrated speed.

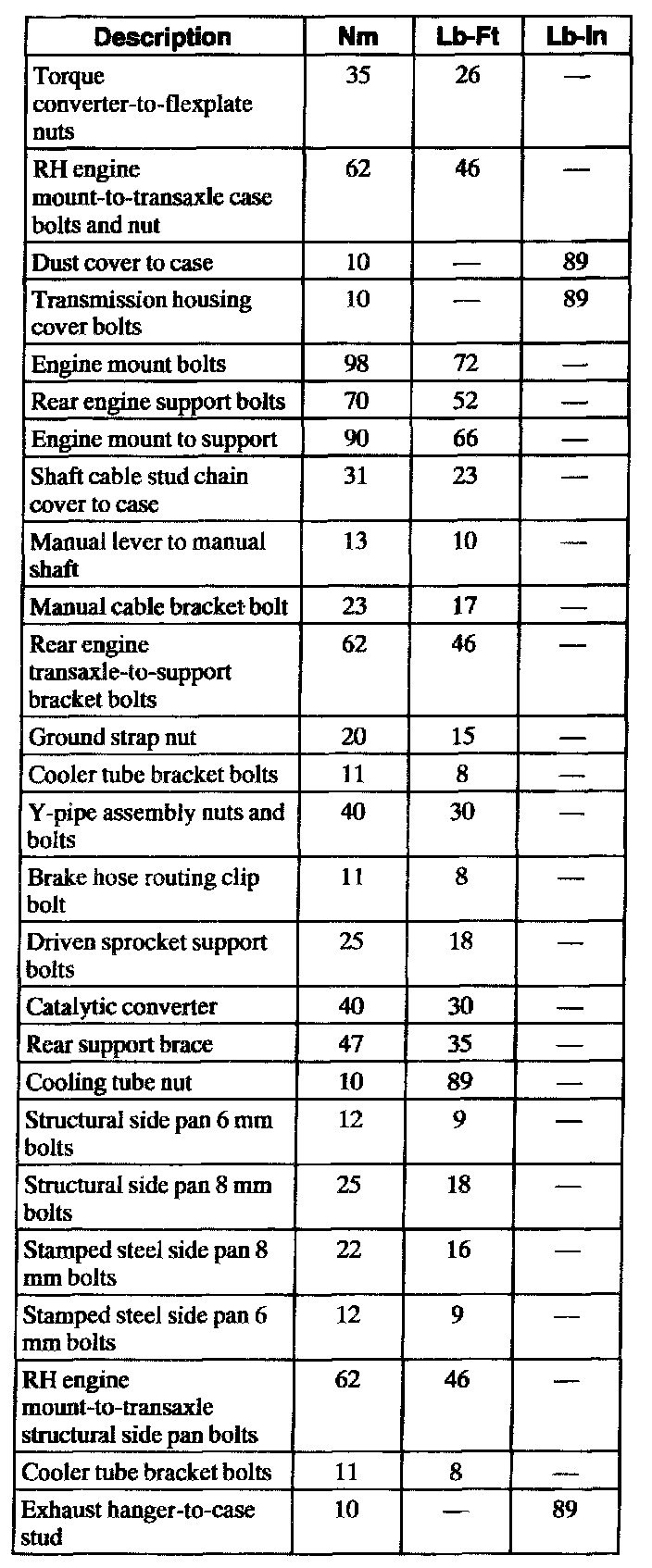

Torque Specifications





Flex Plate Torque/Sequence

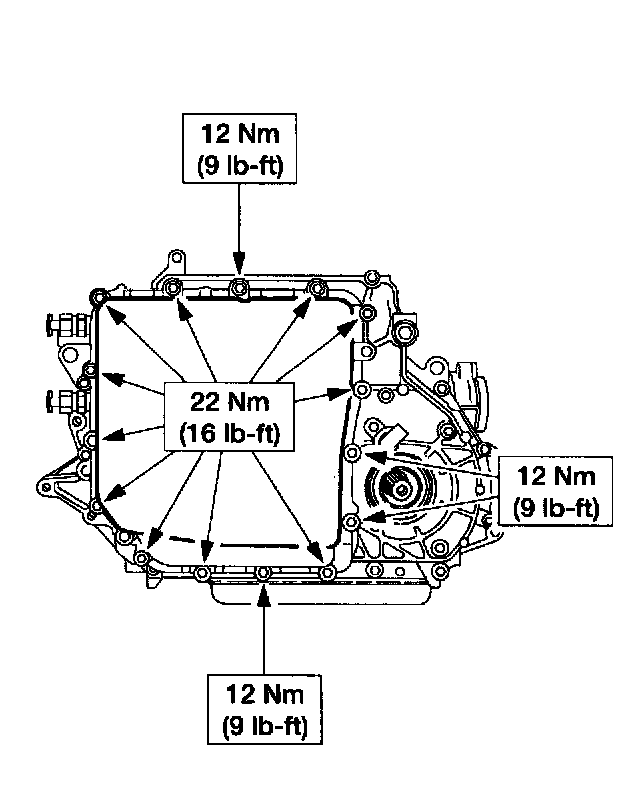

Transmission Pan Torque/Sequence

Transaxle/Transmission Cooling

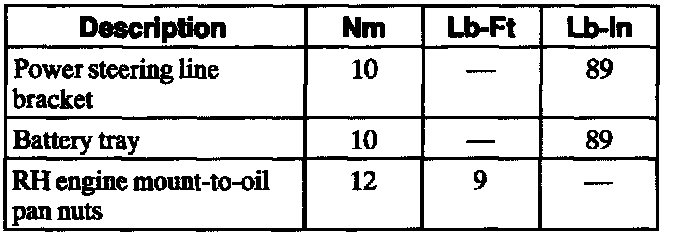

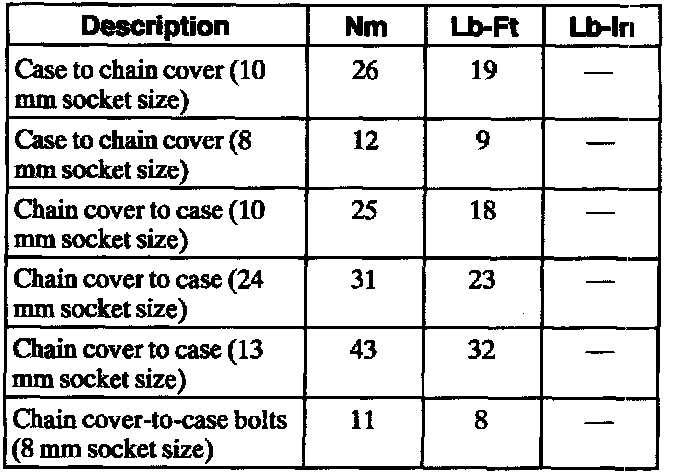

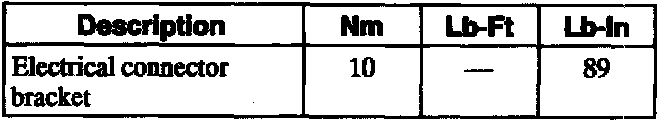

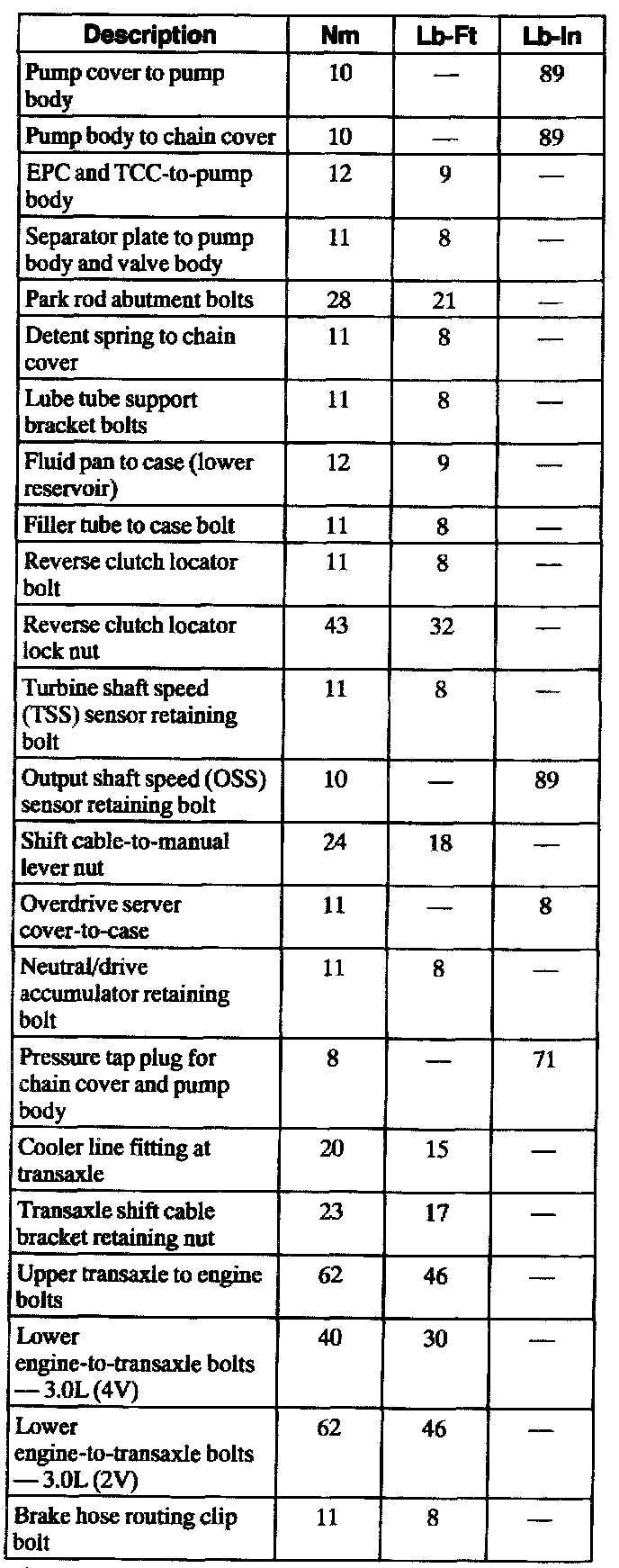

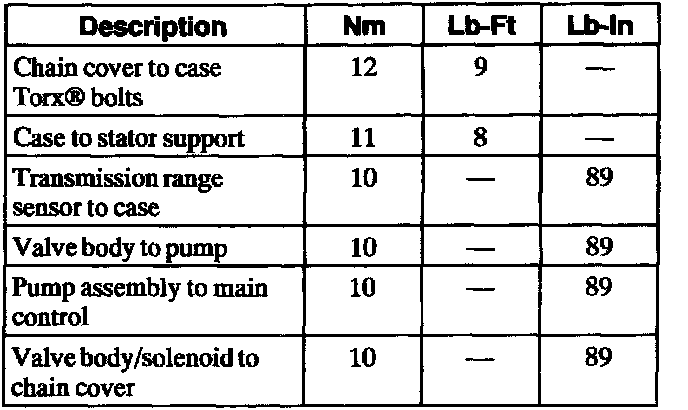

Torque Specifications
