AX4S
SPECIFICATIONS

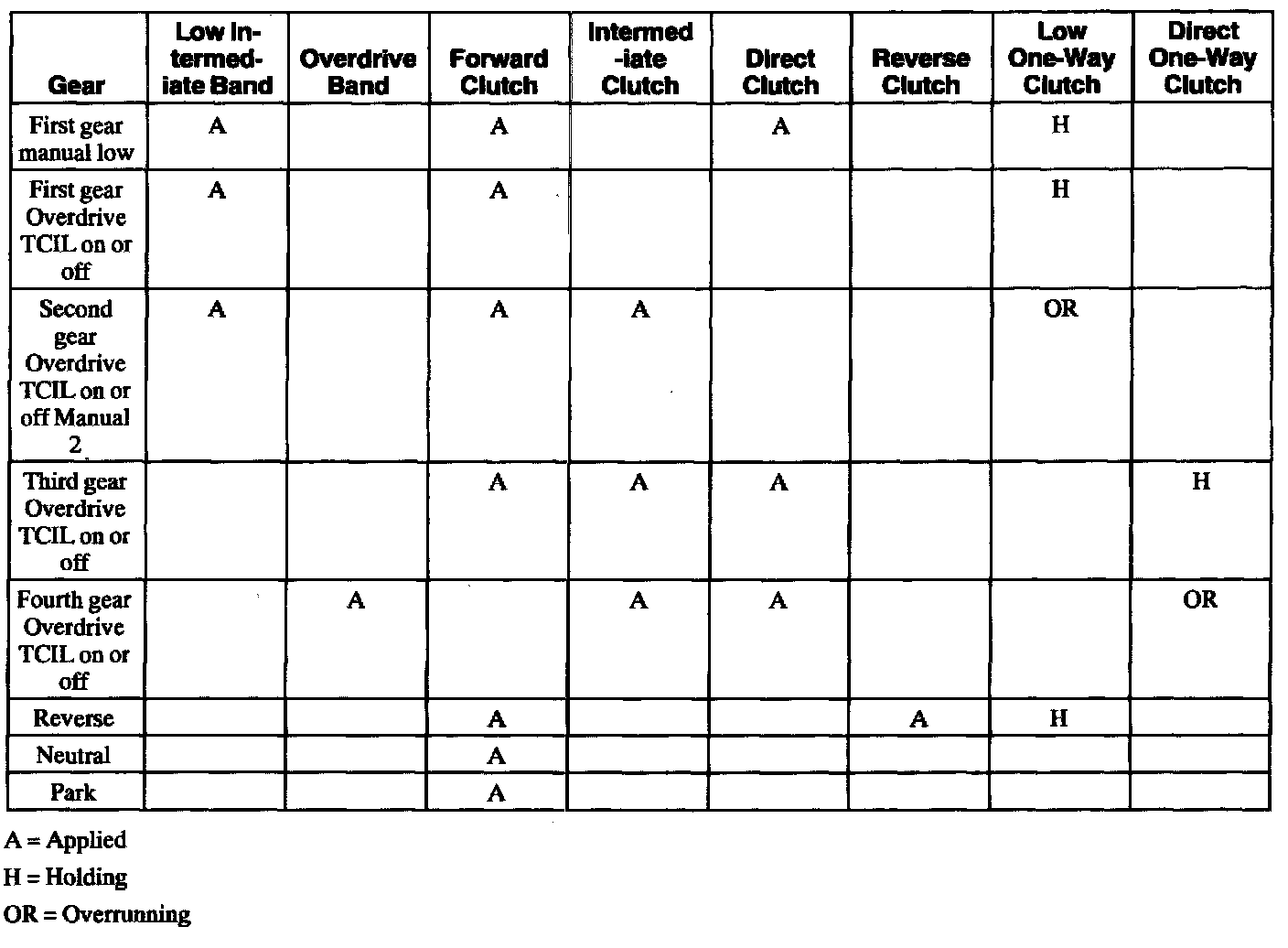

Band and clutch application chart
A = Applied
H = Holding
OR = Overrunning

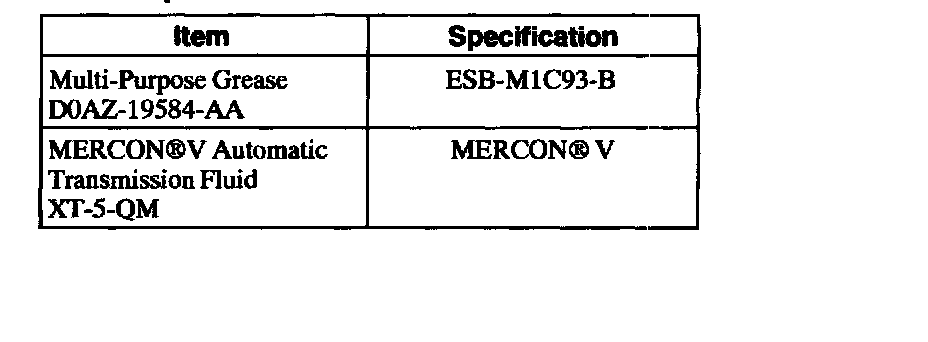

General Specifications

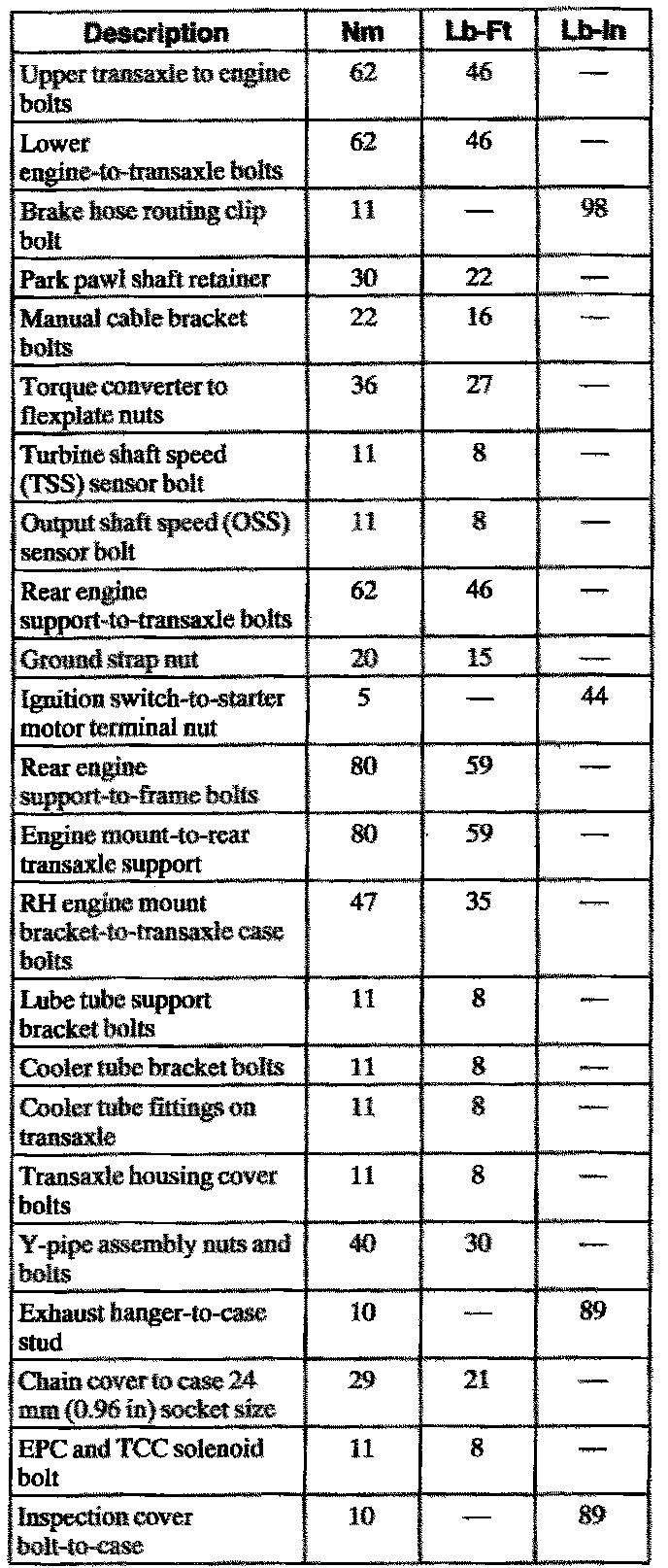

Torque Specifications

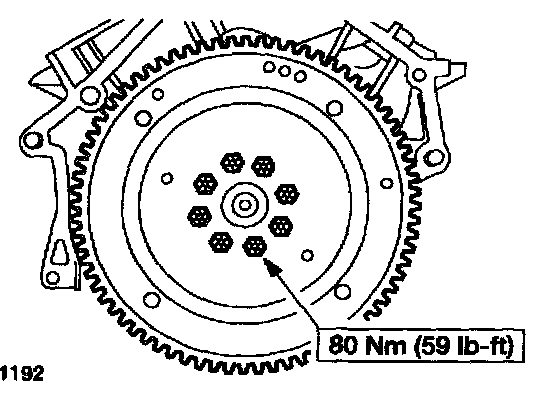

Flex Plate Torque/Sequence

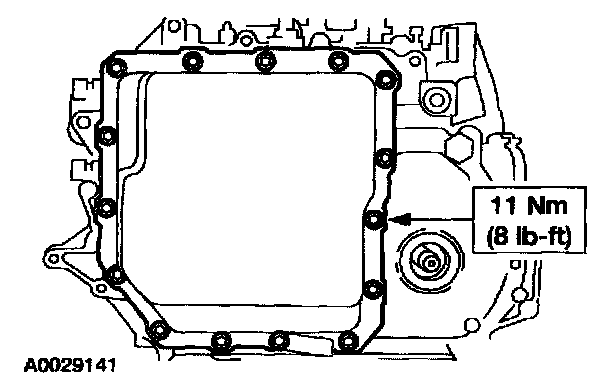

Transmission Pan Torque/Sequence

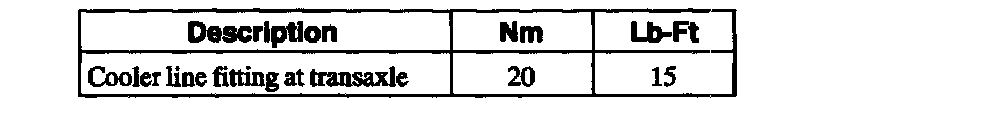

Transaxle/Transmission Cooling

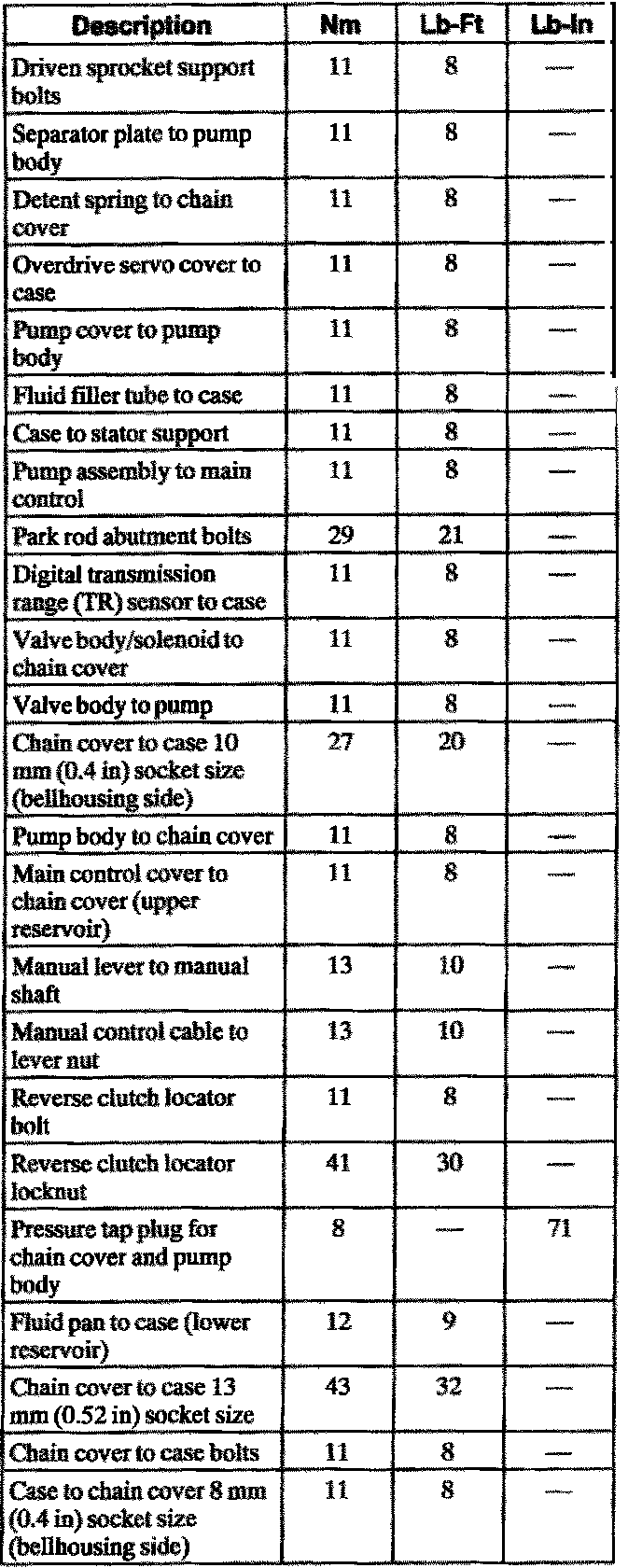

Torque Specifications
