Climate Control System Electrical Components-Directly Linked to DATC Module

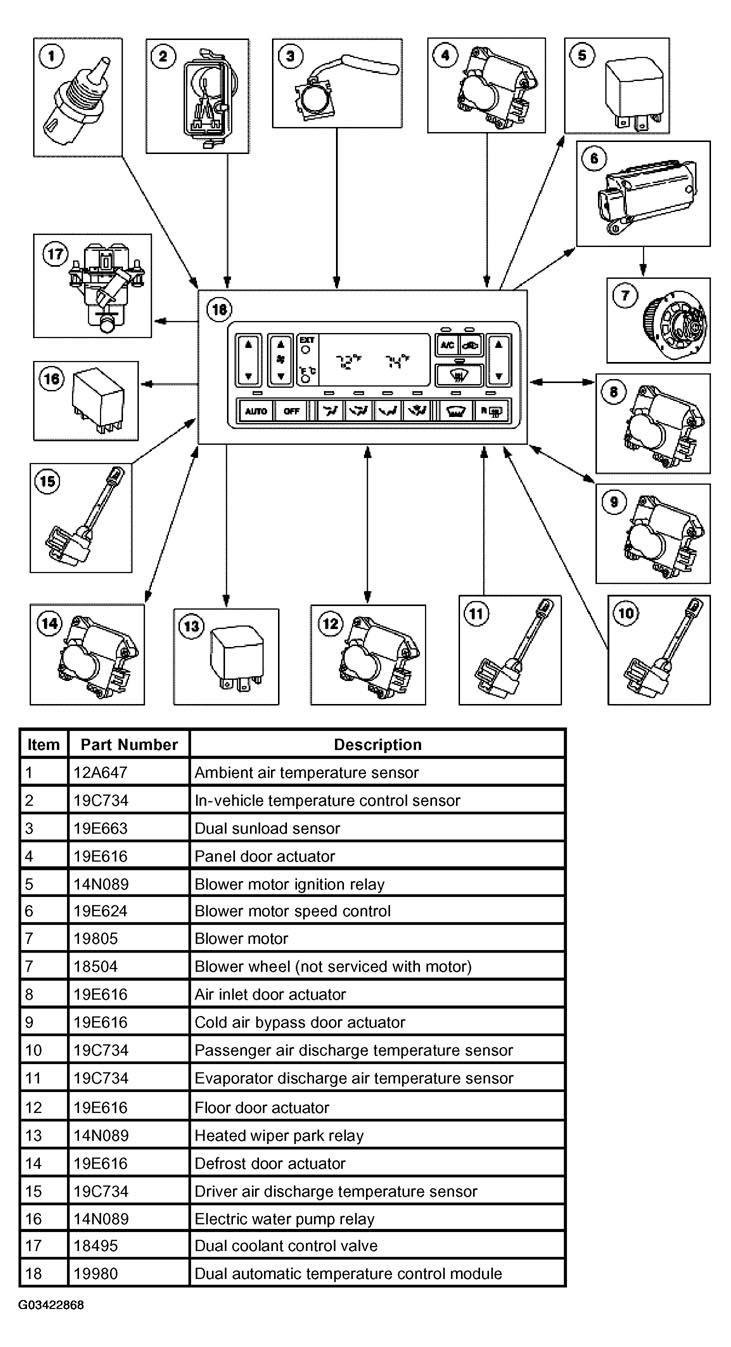

Fig 1: Identifying Climate Control System Electrical Components-Directly Linked To DATC Module
G03422868Courtesy of FORD MOTOR CO.
