Pinpoint Test A: No Communication With The Anti-Lock Brake System (Abs) Module

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

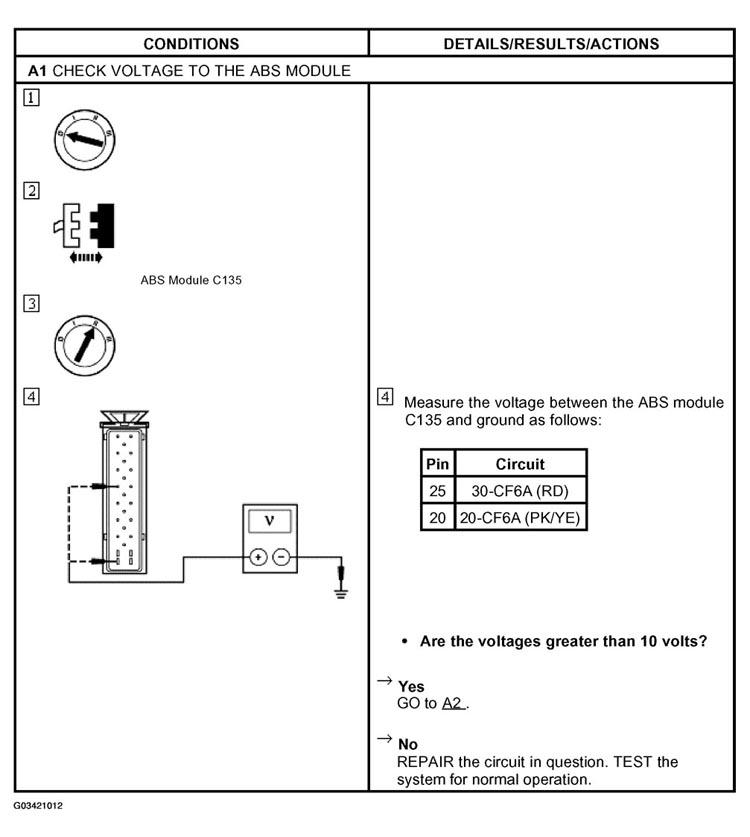

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake System (ABS) Module (A1)

Courtesy of FORD MOTOR CO.

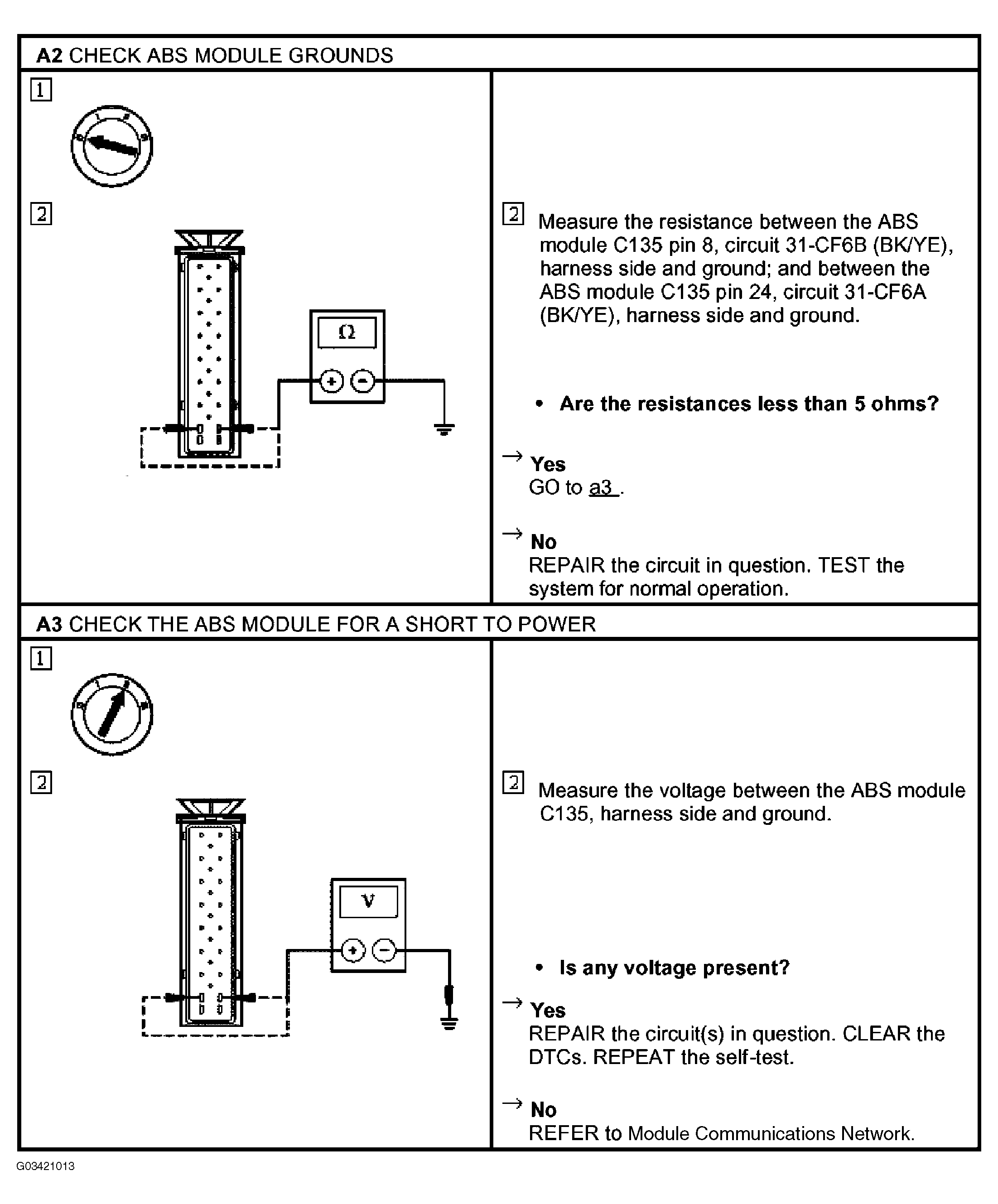

Fig 2: Pinpoint Test A: No Communication With Anti-Lock Brake System (ABS) Module (A2-A3)

Courtesy of FORD MOTOR CO.
