Pinpoint Test G: The Traction Control Is Inoperative

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

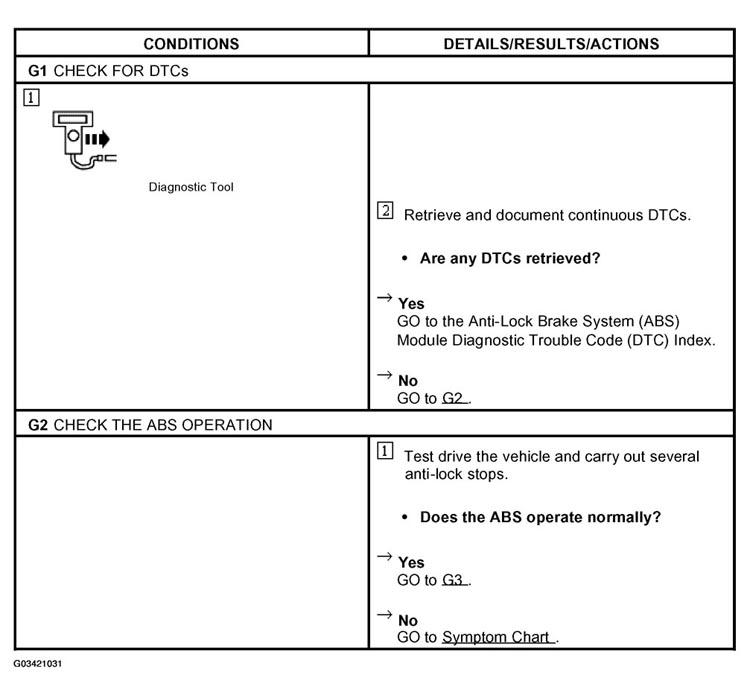

Fig 1: Pinpoint Test G: Traction Control Is Inoperative (G1-G2)

Courtesy of FORD MOTOR CO.

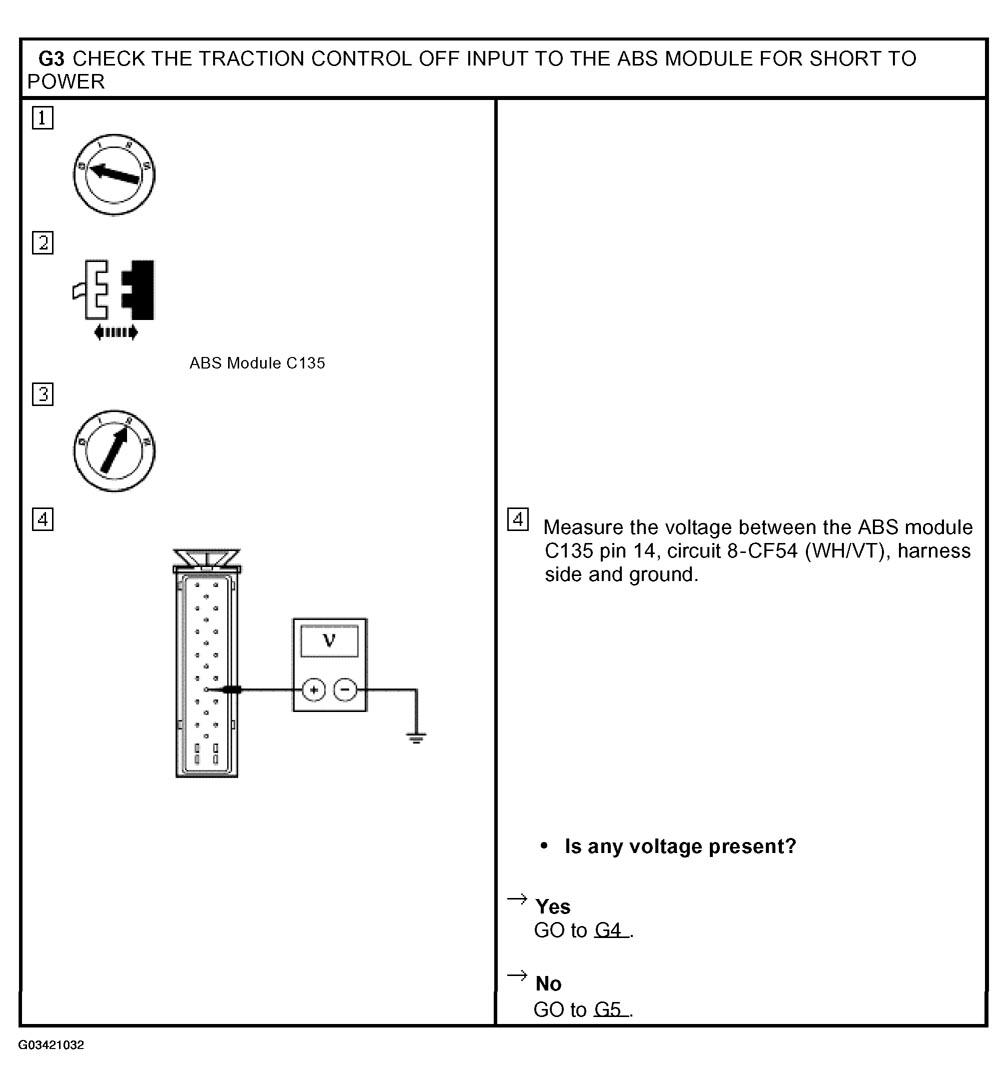

Fig 2: Pinpoint Test G: Traction Control Is Inoperative (G3)

Courtesy of FORD MOTOR CO.

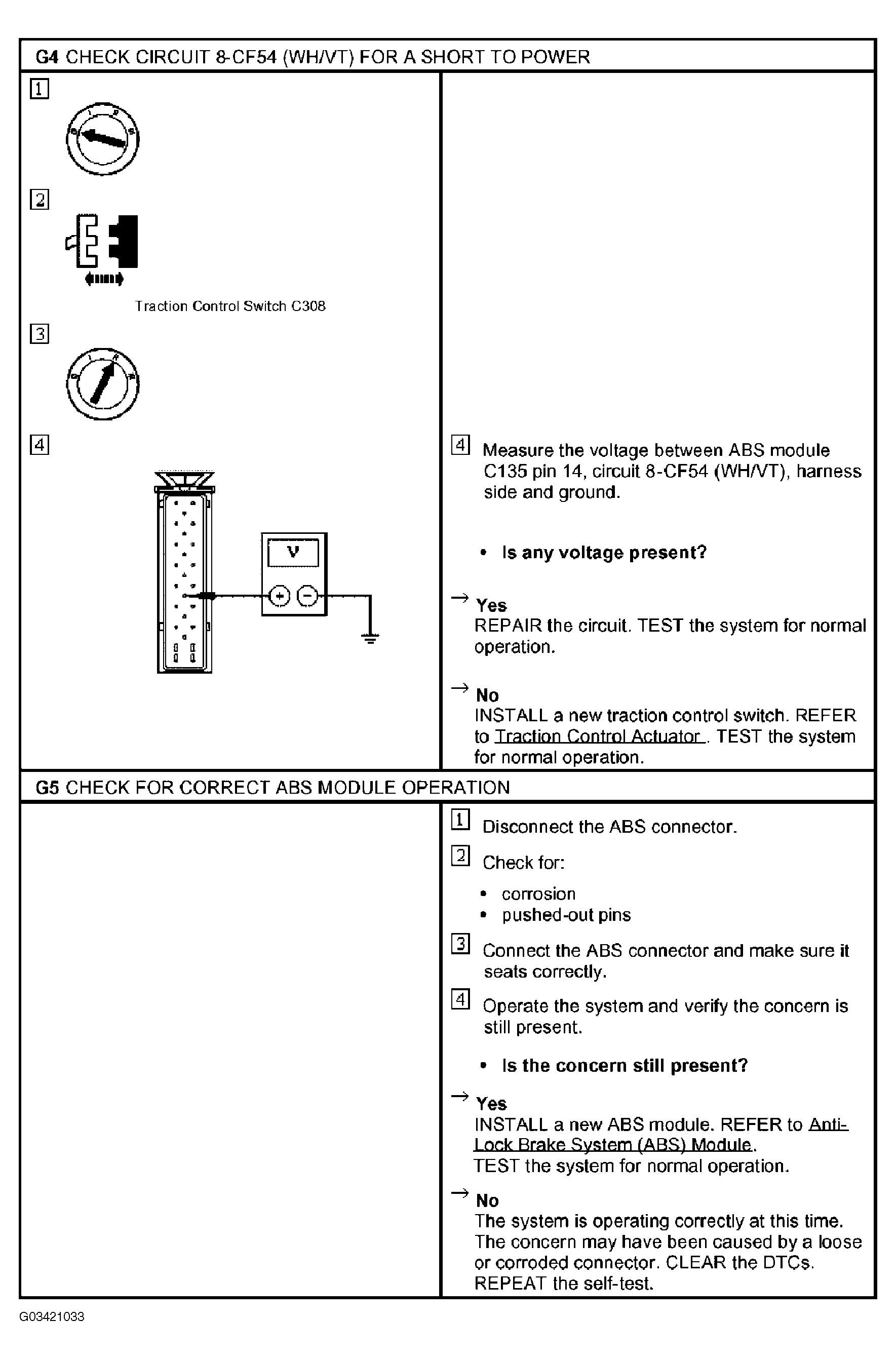

Fig 3: Pinpoint Test G: Traction Control Is Inoperative (G4-G5)

Courtesy of FORD MOTOR CO.
