Pinpoint Test I: The Traction Control Switch Indicator Is Never/Always On

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

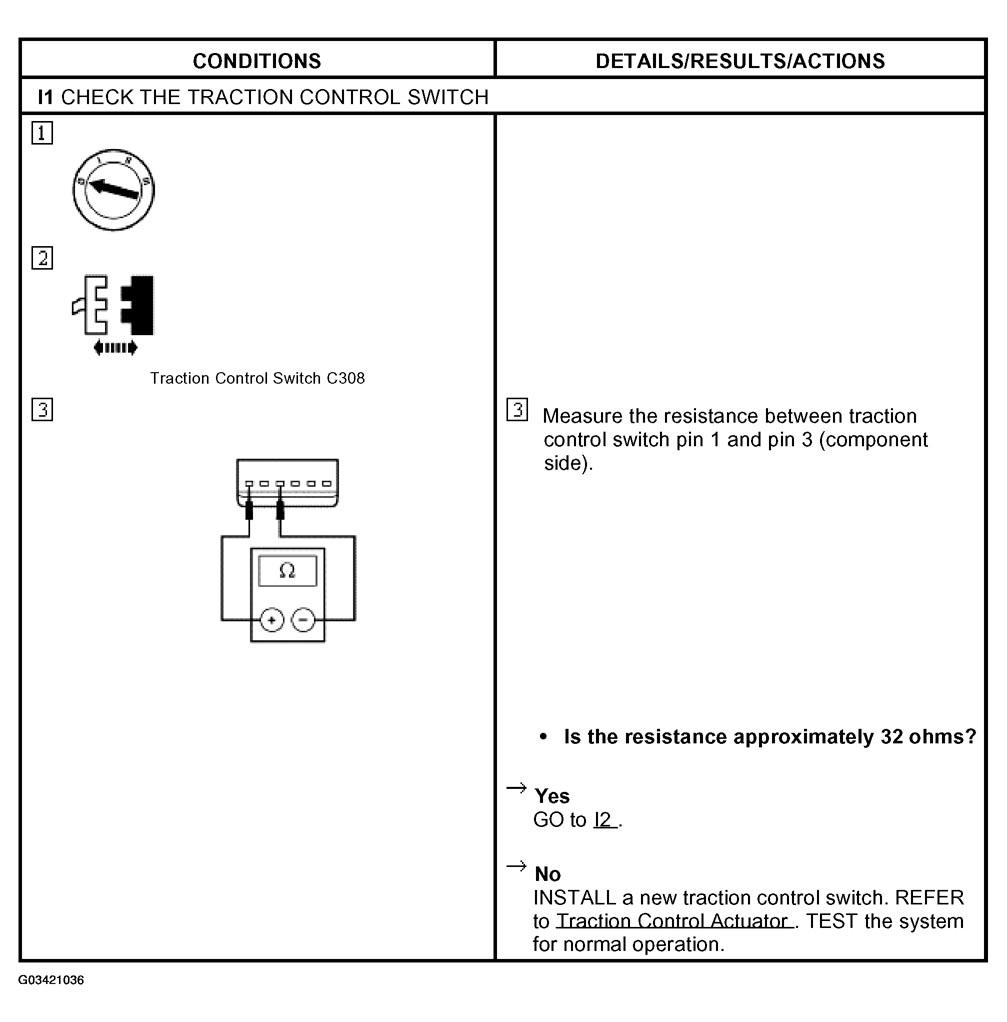

Fig 1: Pinpoint Test I: Traction Control Switch Indicator Is Never/Always On (I1)

Courtesy of FORD MOTOR CO.

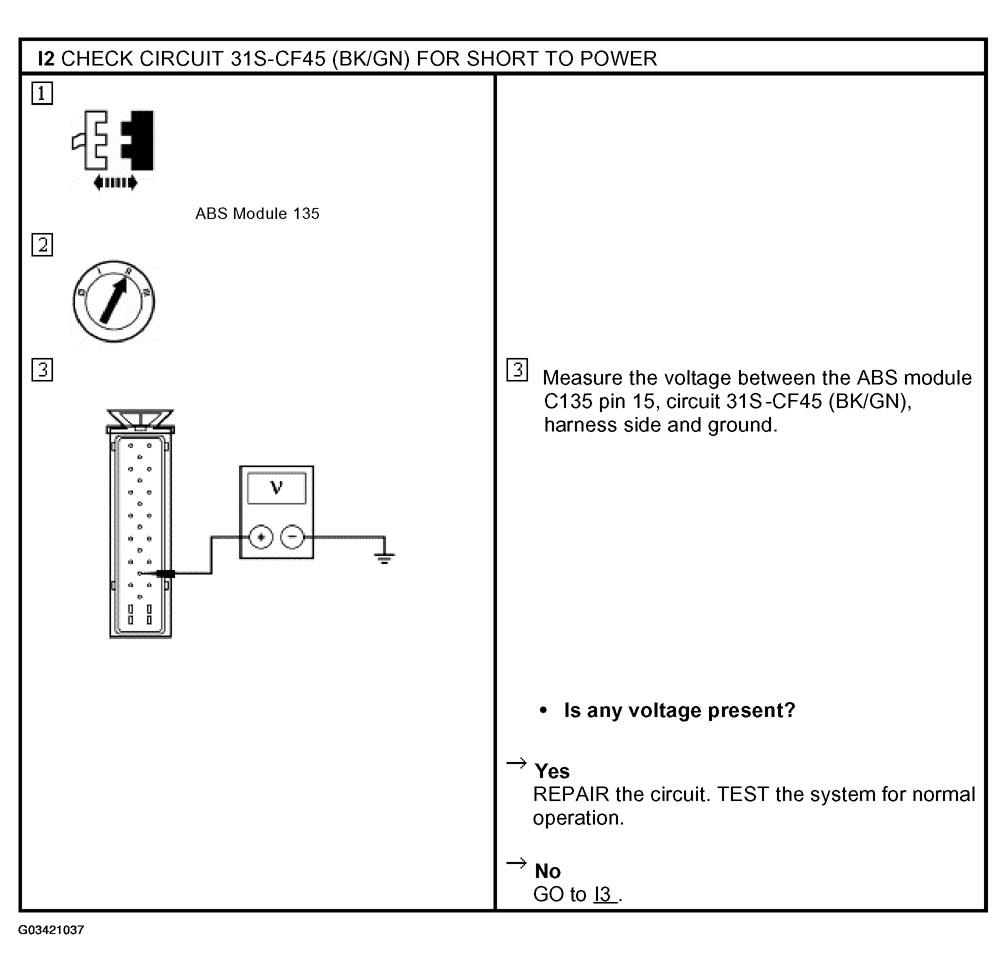

Fig 2: Pinpoint Test I: Traction Control Switch Indicator Is Never/Always On (I2)

Courtesy of FORD MOTOR CO.

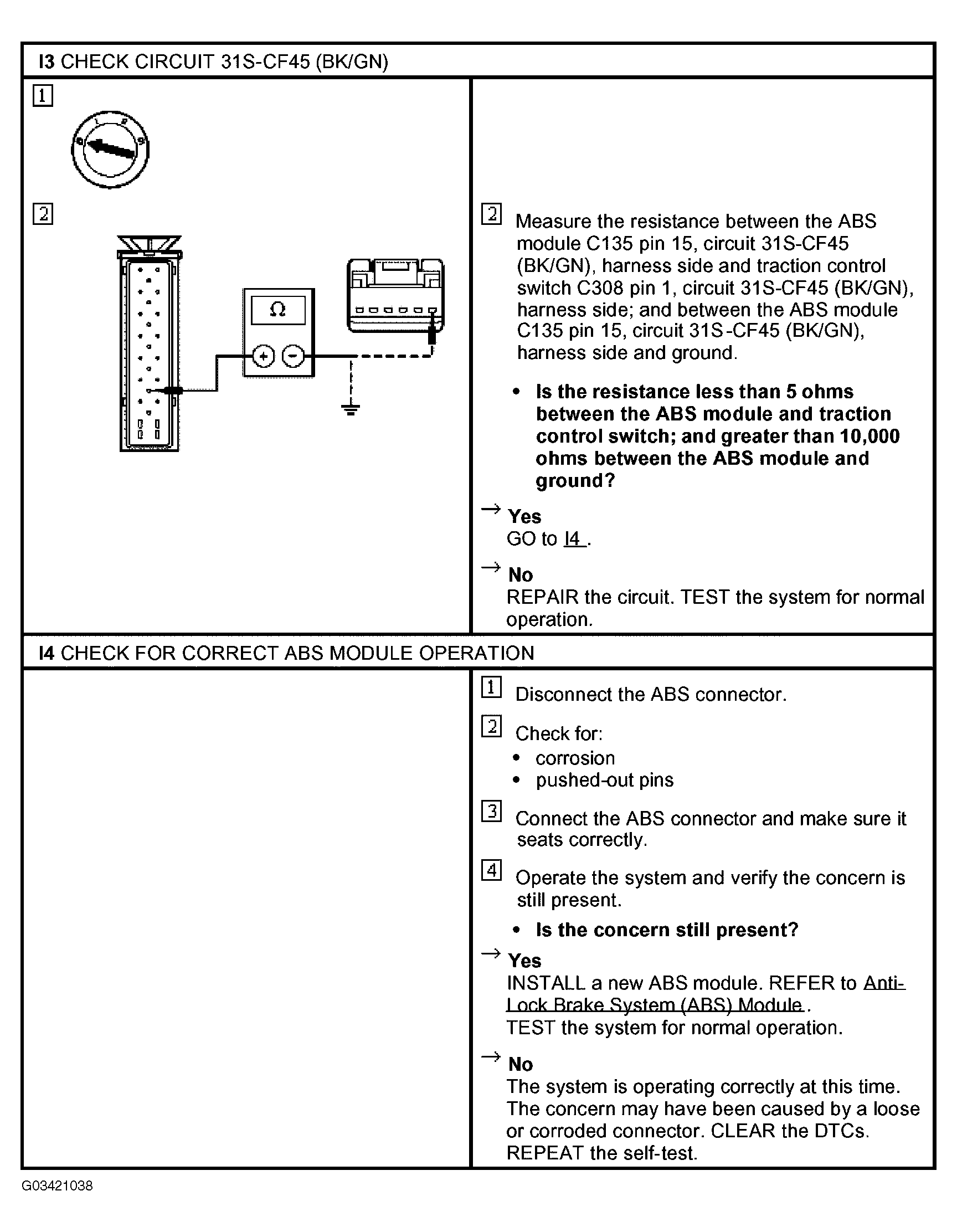

Fig 3: Pinpoint Test I: Traction Control Switch Indicator Is Never/Always On (I3)

Courtesy of FORD MOTOR CO.
