Exhaust Manifold-Inspection

Special Tool(s)

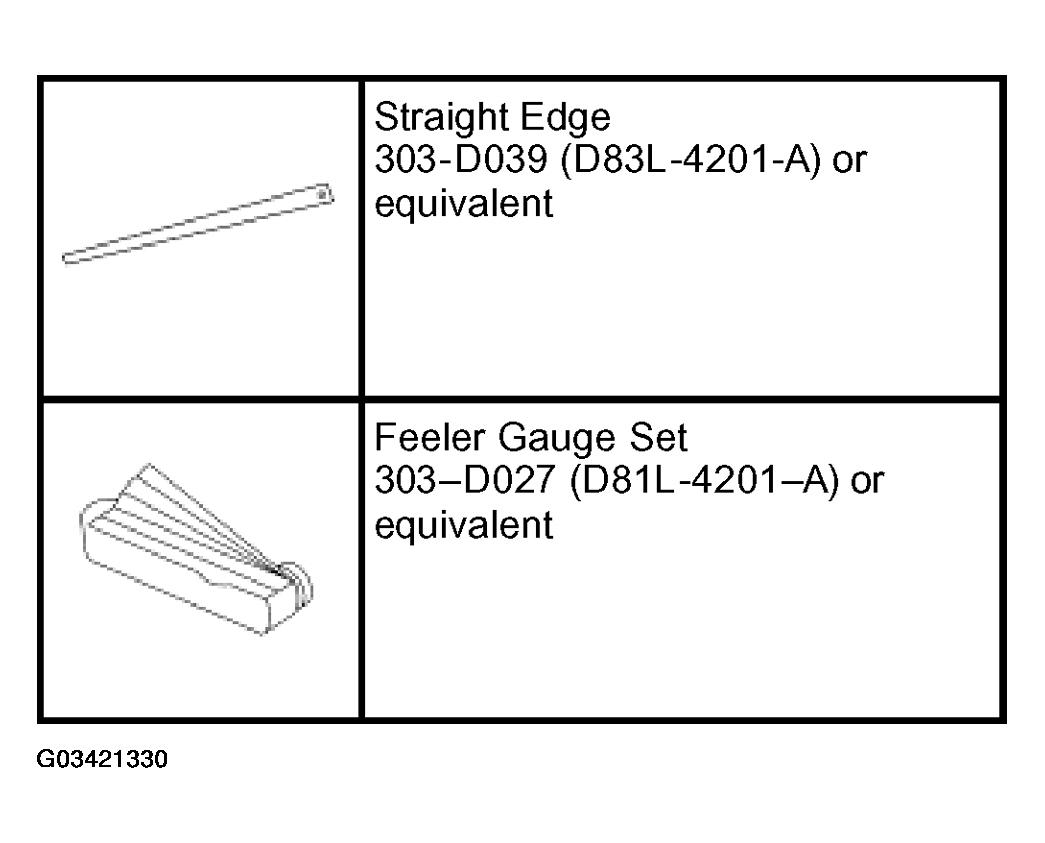

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Use the special tools to check for warping.

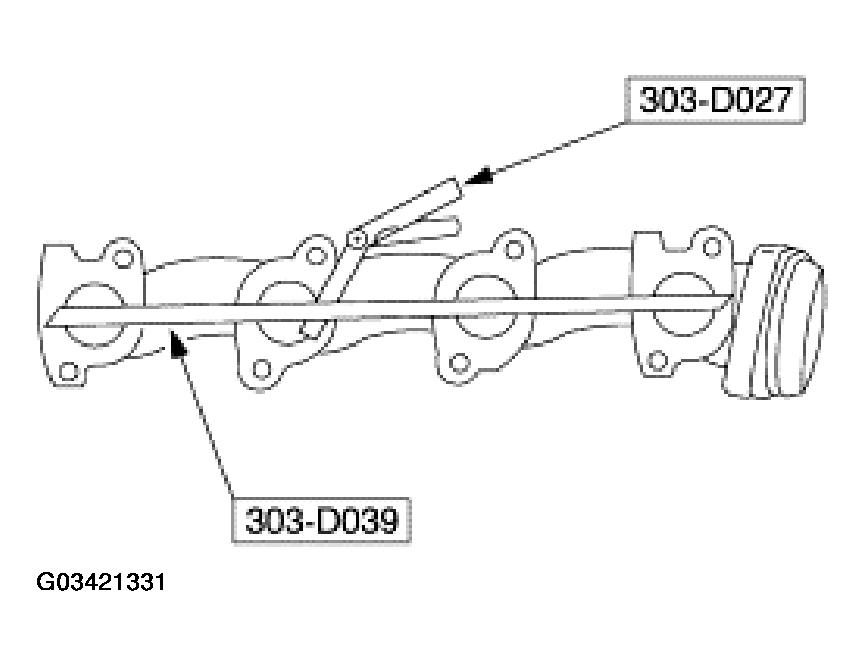

   Fig 2: Checking Exhaust Manifold For Warping

   Courtesy of FORD MOTOR CO.
