Valve-Stem Diameter

  1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
    • Refer to GENERAL SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

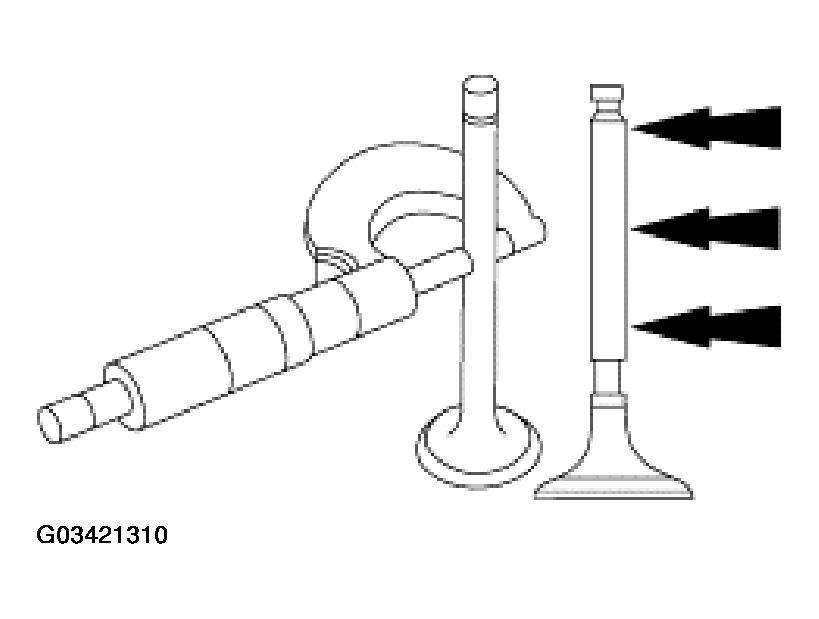

      Fig 1: Measuring Diameter Of Valve Stem
      G03421310Courtesy of FORD MOTOR CO.
