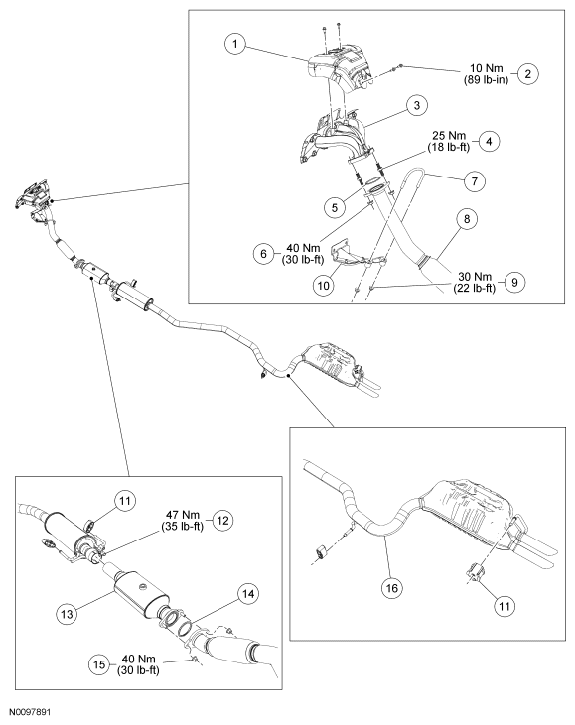

Exhaust System - Exploded View: 2.5L
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9N454 | Catalytic converter manifold shield |
| 2 | W503921 | Catalytic converter manifold shield bolt (4 required) |
| 3 | 9430 | Exhaust manifold |
| 4 | W711133 | Exhaust manifold stud (2 required) |
| 5 | 9451 | Gasket |
| 6 | W520414 | Exhaust manifold nut (2 required) |
| 7 | N802137 | U-bolt |
| 8 | 5G203 | Exhaust flexible pipe |
| 9 | W520414 | U-bolt nut (2 required) |
| 10 | 5K222 | Catalytic converter manifold bracket |
| 11 | 5F262 | Muffler and tail pipe isolator (4 required) |
| 12 | 5221 | Torca® clamp |
| 13 | 5E212 | Catalytic converter |
| 14 | 9451 | Gasket |
| 15 | W520414 | Exhaust flexible pipe-to-catalytic converter nut (2 required) |
| 16 | 5C257 | Muffler and tail pipe |
