Pinpoint Test A: Overdrive Cancel Switch Not Working

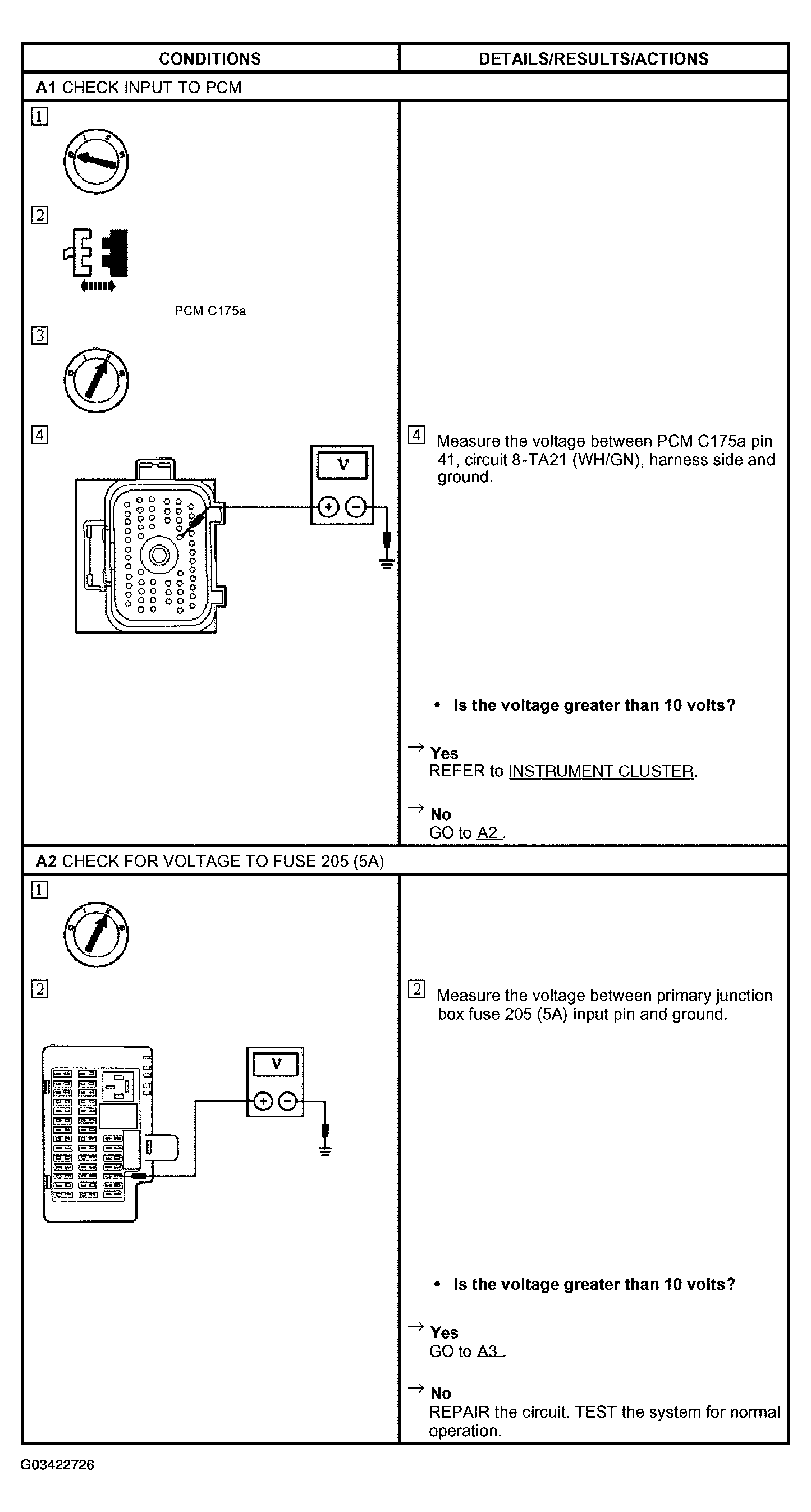

Fig 1: Pinpoint Test A: Overdrive Cancel Switch Not Working (A1 - A2)
G03422726Courtesy of FORD MOTOR CO.

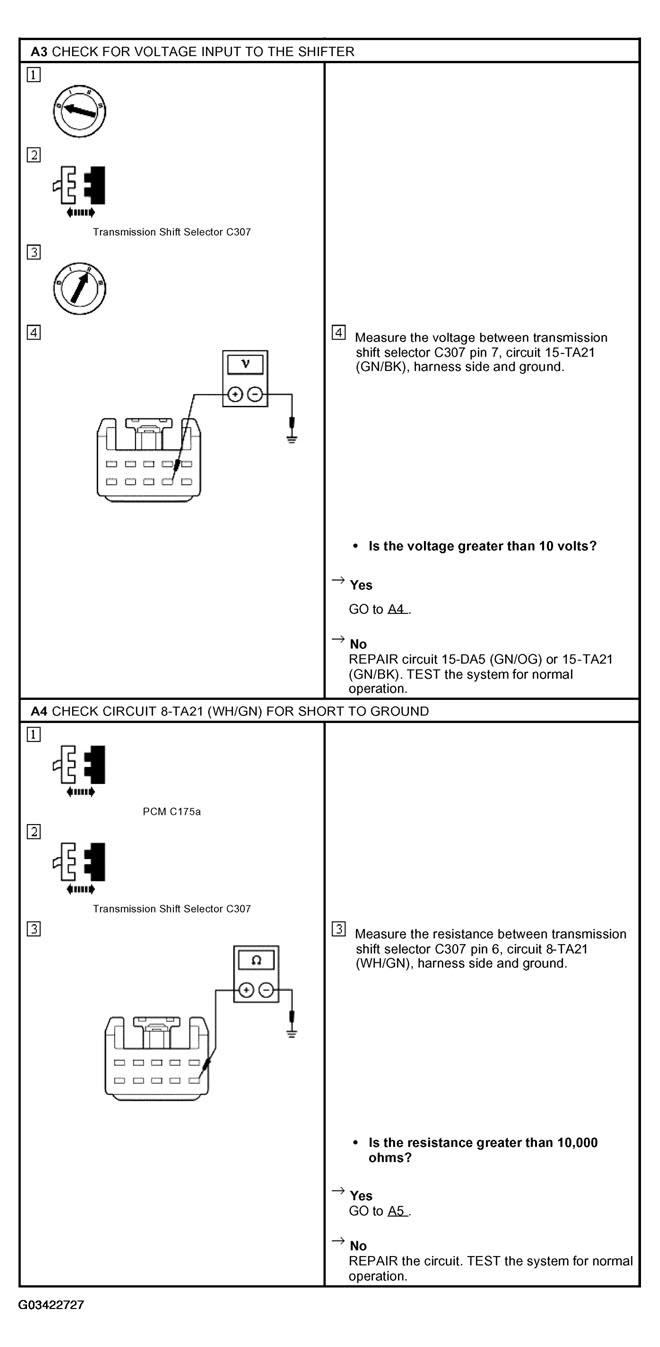

Fig 2: Pinpoint Test A: Overdrive Cancel Switch Not Working (A3 - A4)
G03422727Courtesy of FORD MOTOR CO.

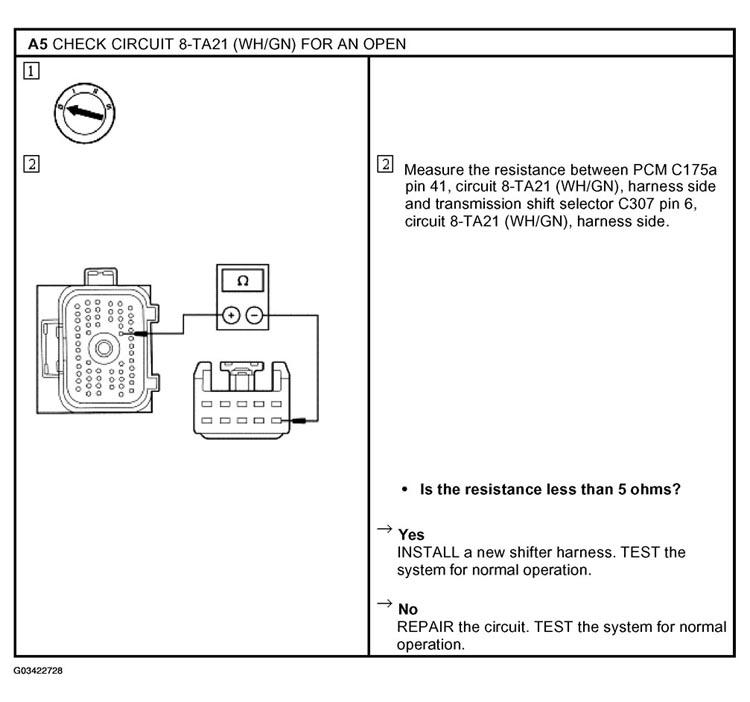

Fig 3: Pinpoint Test A: Overdrive Cancel Switch Not Working (A5)
G03422728Courtesy of FORD MOTOR CO.
