Removal and Installation

Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the PRNDL indicator bulb.

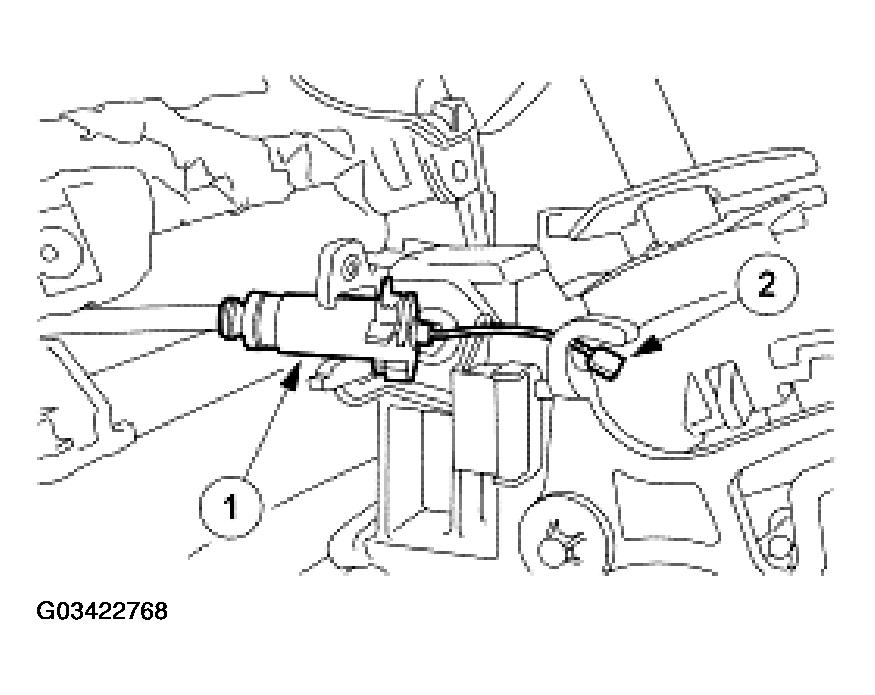

Fig 1: Removing PRNDL Indicator Bulb
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

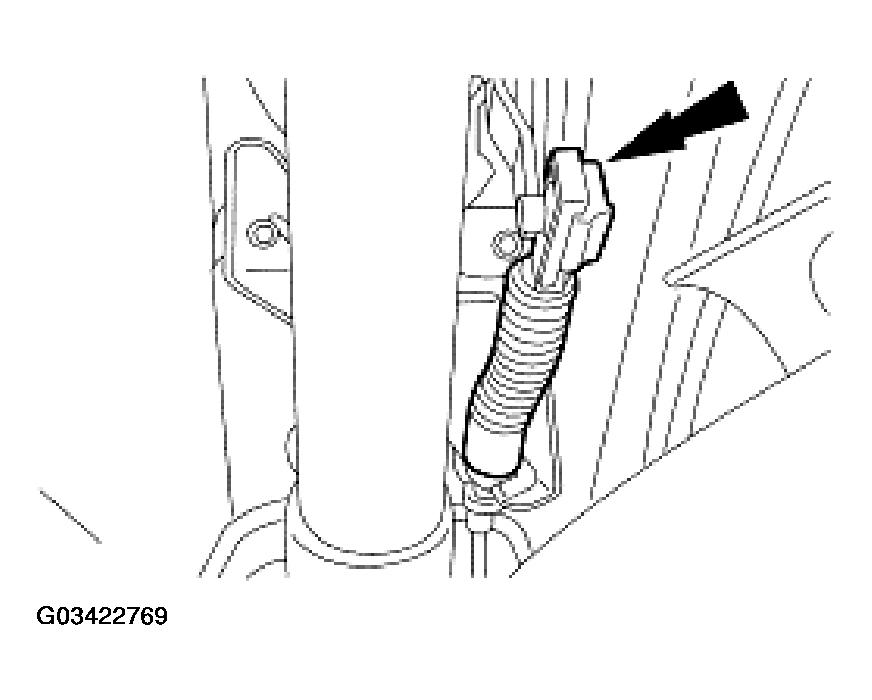

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the cable from the lever.
1. Remove the shift interlock cable from the bracket.
2. Disconnect the cable from the lever.

  Fig 3: Disconnecting Cable From Lever
  Courtesy of FORD MOTOR CO.
With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Disconnect the transmission shift cable from the selector lever.

Fig 4: Disconnecting Transmission Shift Cable From Selector Lever
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the shifter assembly.
- Remove the bolts.
- Remove the shifter assembly and integral TCS.

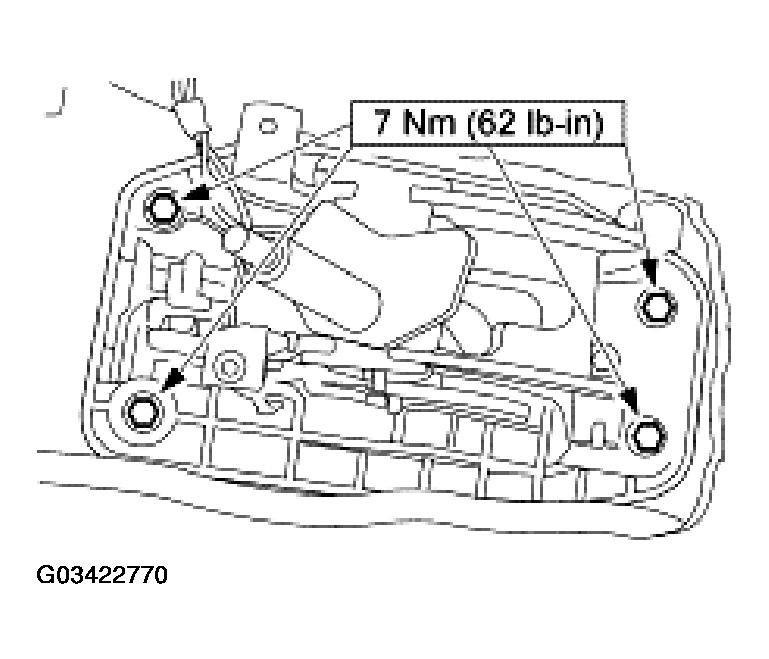

  Fig 5: Removing Shifter Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
