Disassembled Views

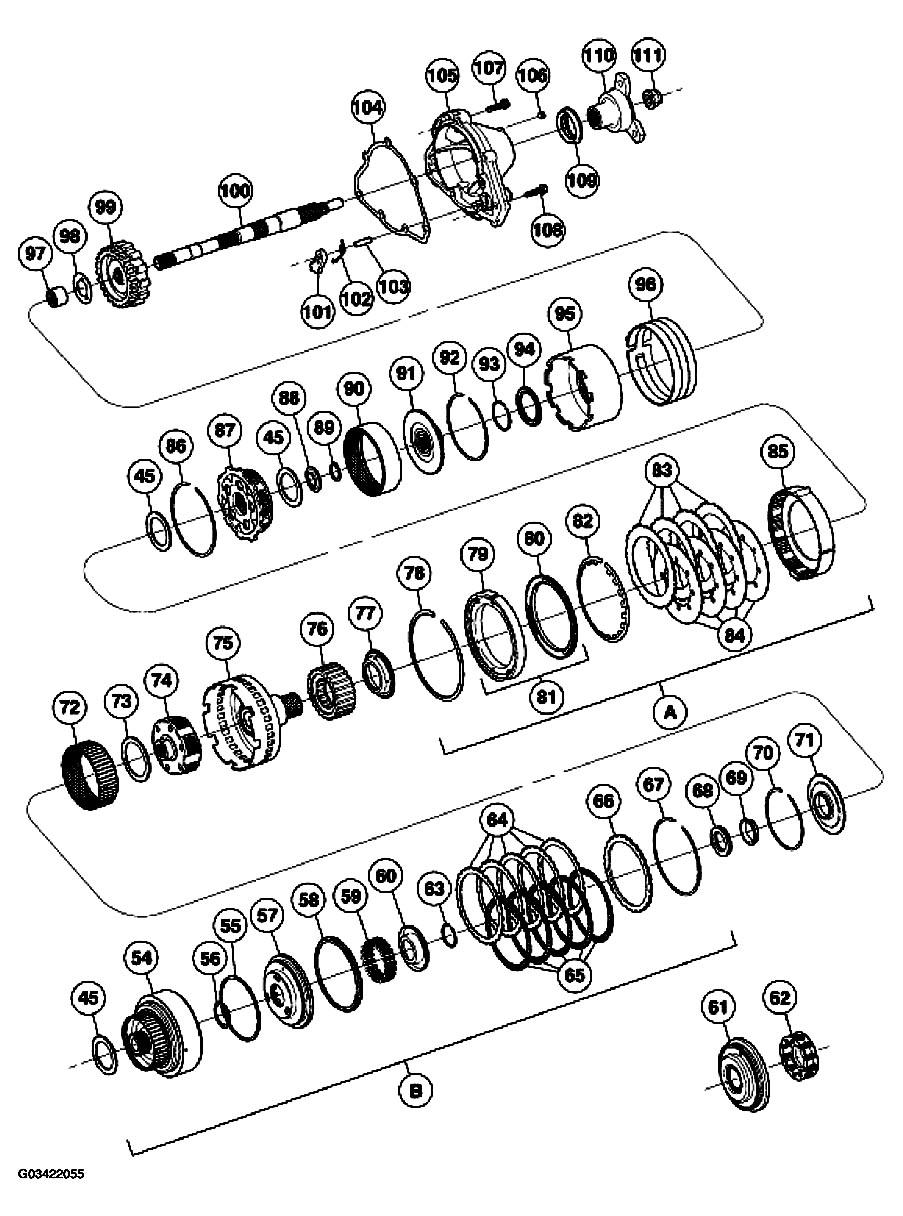

Fig 1: Disassembled Views Of Automatic Transmission Components (1 Of 3)

Courtesy of FORD MOTOR CO.

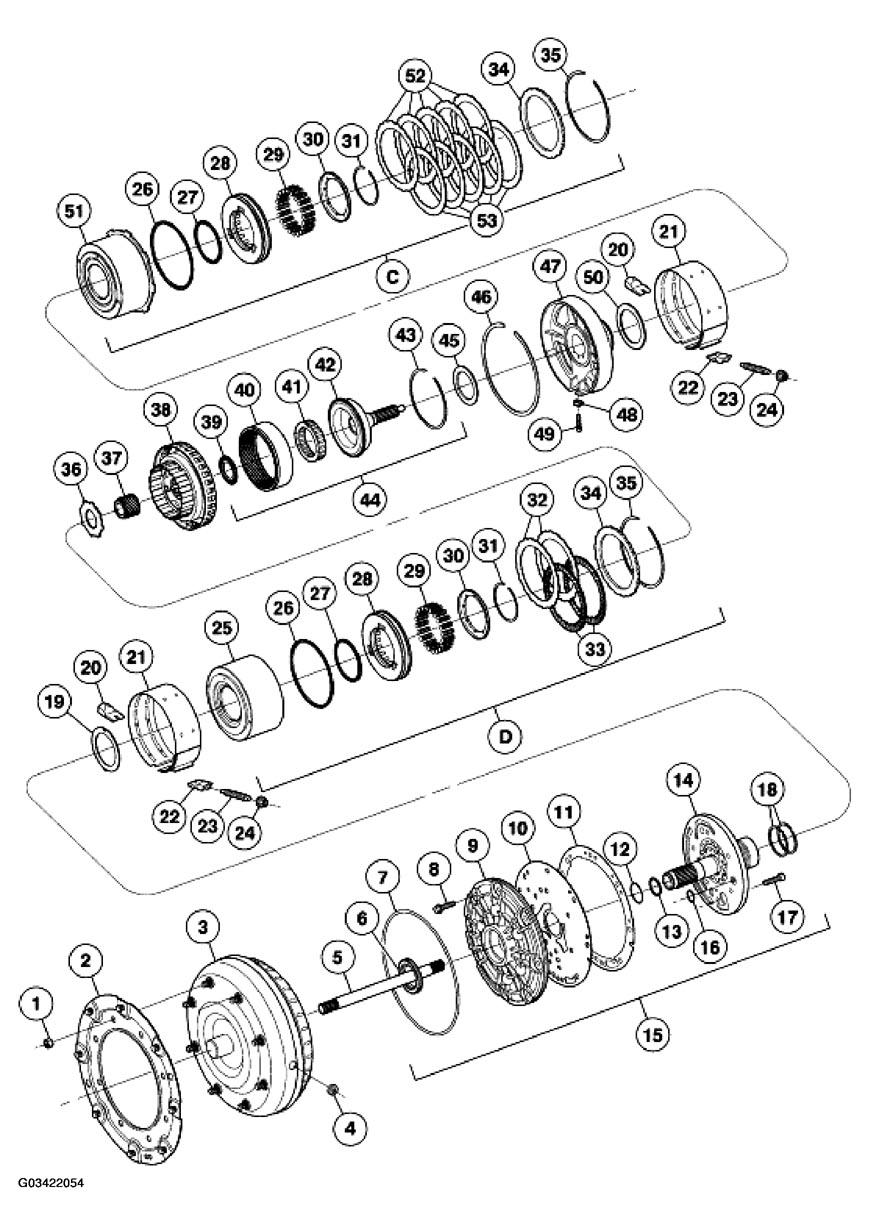

Fig 2: Disassembled Views Of Automatic Transmission Components (2 Of 3)

Courtesy of FORD MOTOR CO.

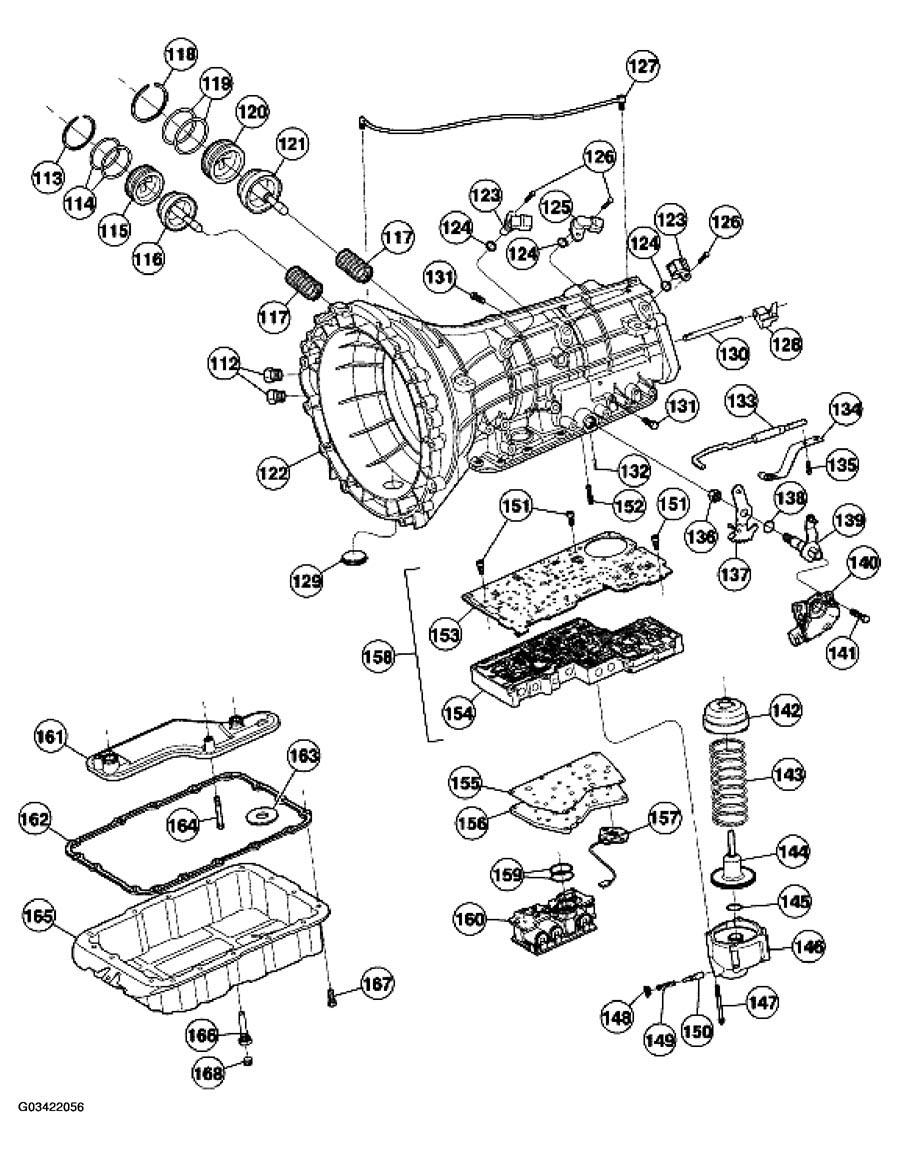

Fig 3: Disassembled Views Of Automatic Transmission Components (3 Of 3)

Courtesy of FORD MOTOR CO.

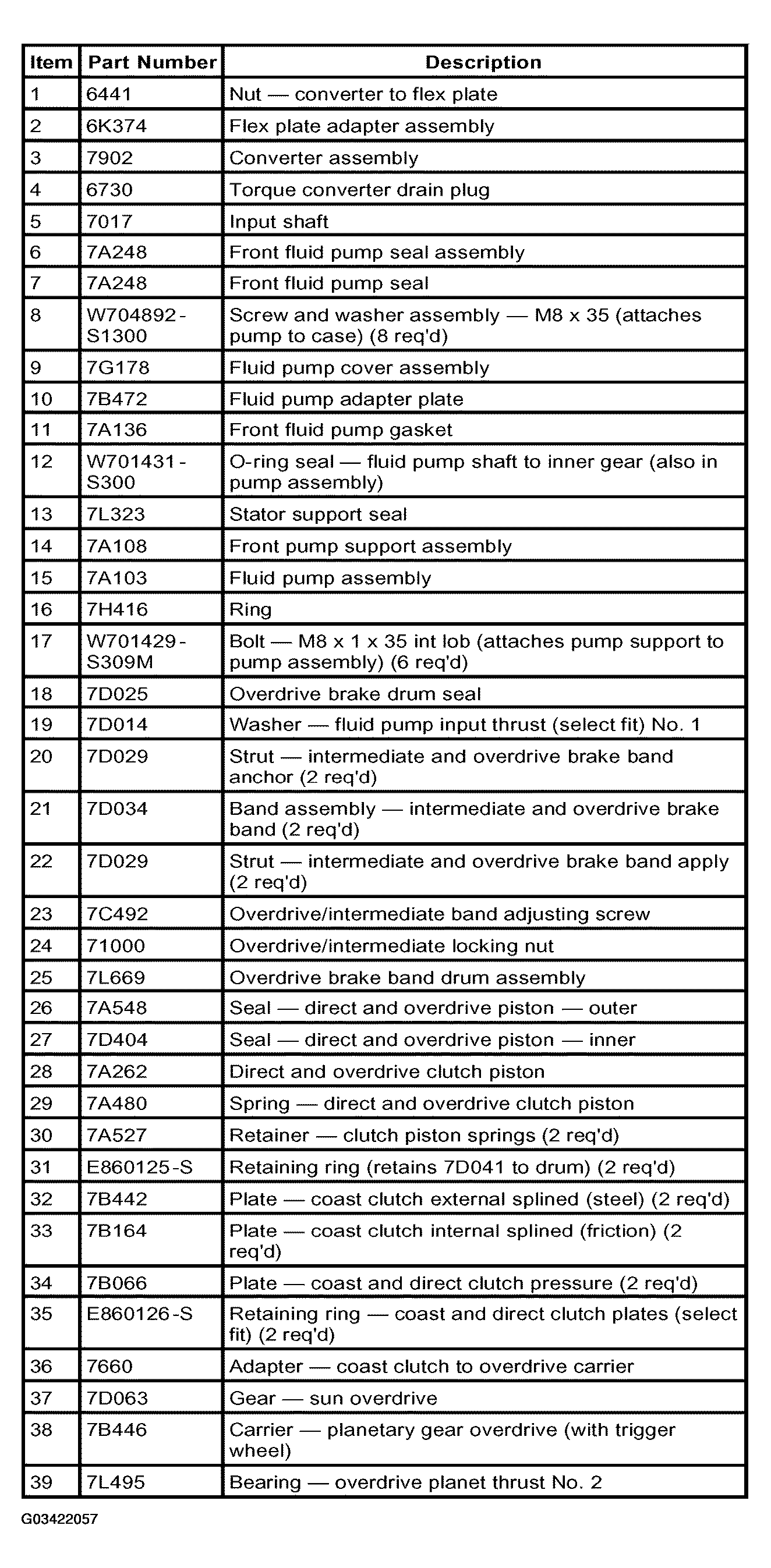

Fig 4: Automatic Transmission Disassembling Components Description Chart (1-39)

Courtesy of FORD MOTOR CO.

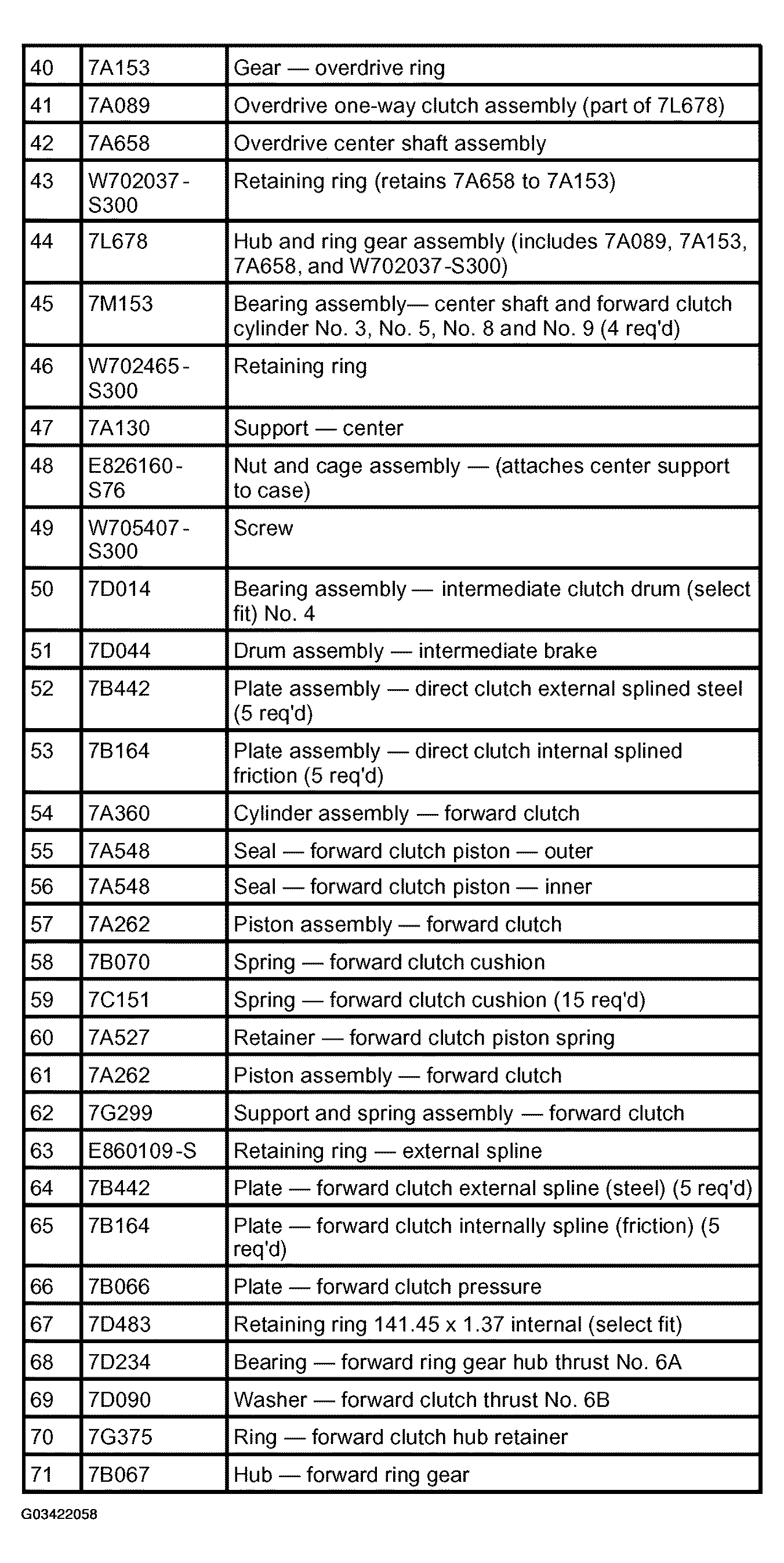

Fig 5: Automatic Transmission Disassembling Components Description Chart (40-71)

Courtesy of FORD MOTOR CO.

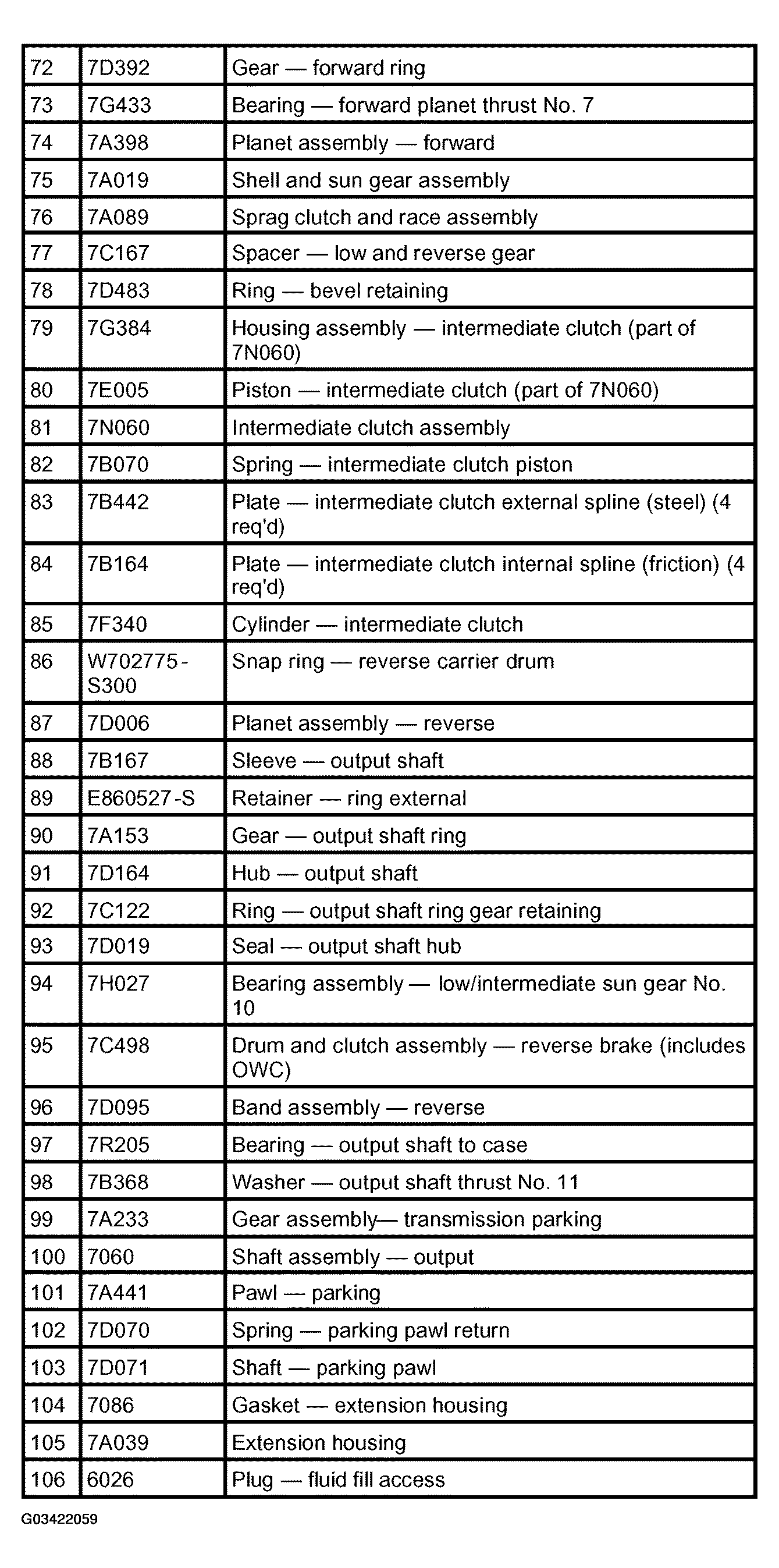

Fig 6: Automatic Transmission Disassembling Components Description Chart (72-106)

Courtesy of FORD MOTOR CO.

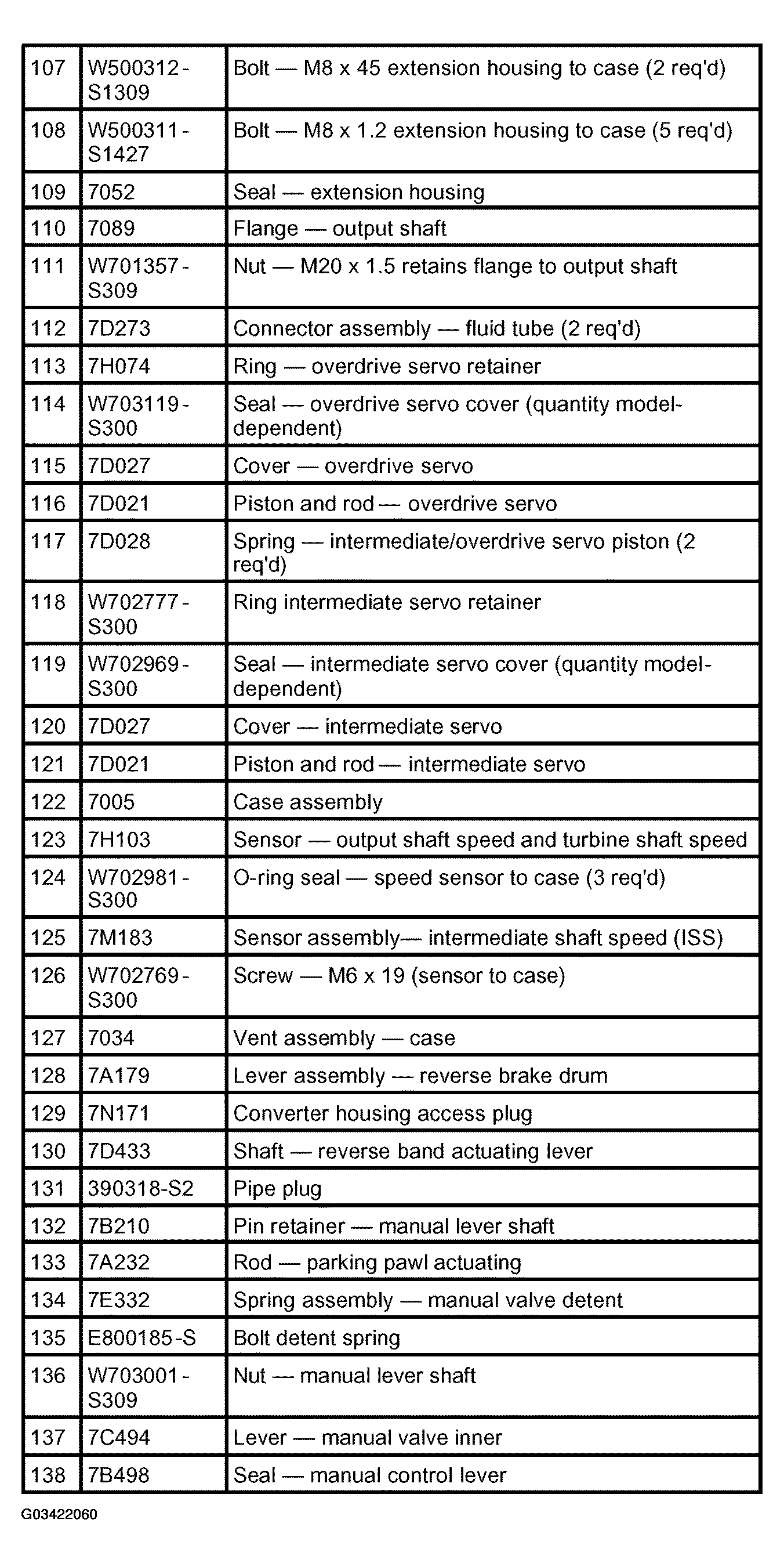

Fig 7: Automatic Transmission Disassembling Components Description Chart (107-138)

Courtesy of FORD MOTOR CO.

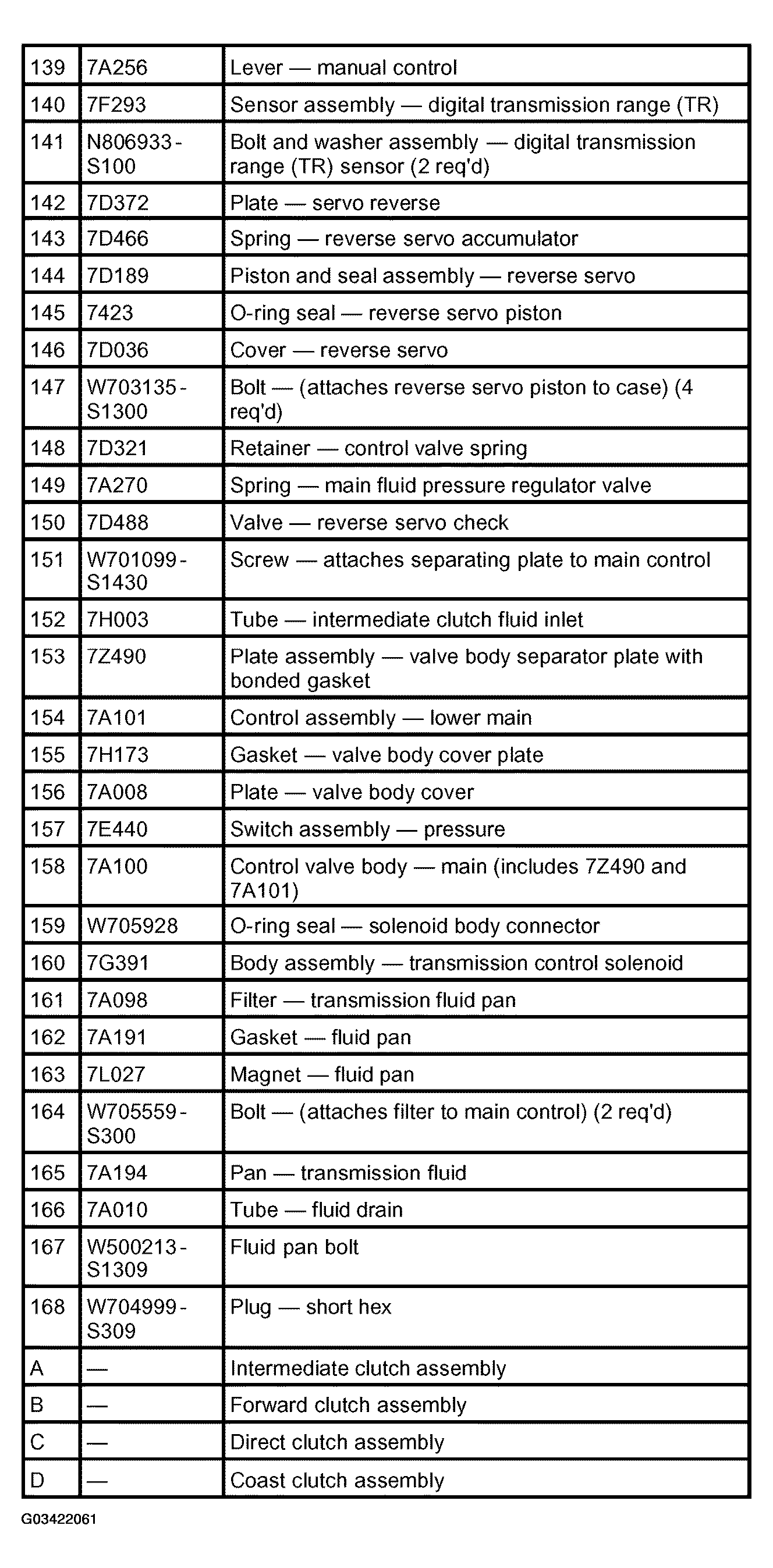

Fig 8: Automatic Transmission Disassembling Components Description Chart (139-168, A-D)

Courtesy of FORD MOTOR CO.
