Overdrive Planetary Gears: Assembly

NOTE: Thoroughly clean all parts and blow dry with moisture-free compressed air.

NOTE: Use petroleum jelly to hold the No. 2 overdrive planetary thrust bearing in place.

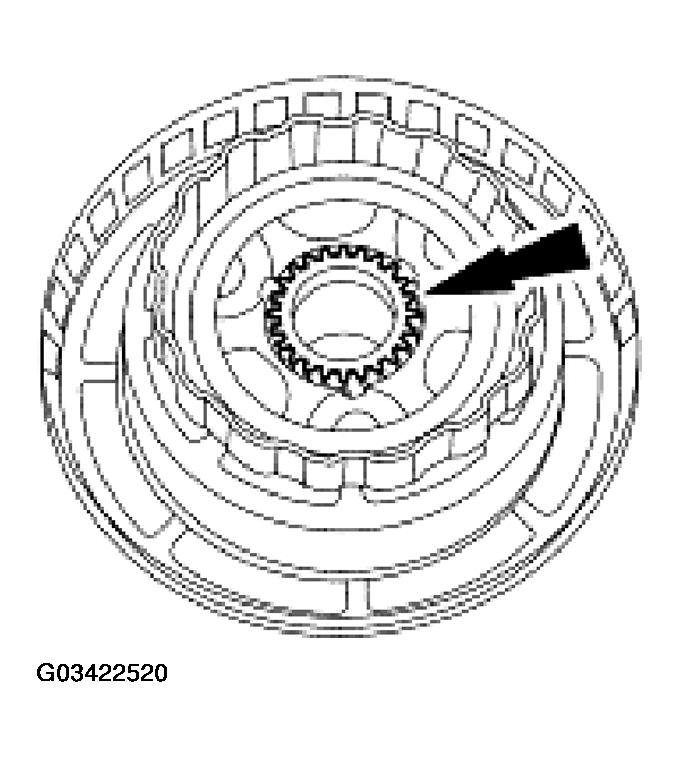

Fig 1: Installing No. 2 Overdrive Planetary Thrust Bearing

Courtesy of FORD MOTOR CO.

Install the No. 2 overdrive planetary thrust bearing.
Install the overdrive planetary gear carrier into the center shaft and overdrive.

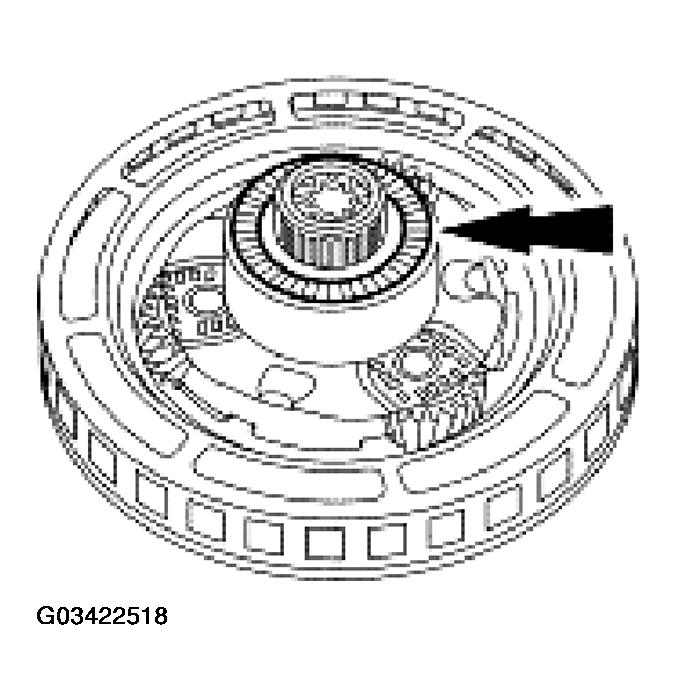

Fig 2: Installing Overdrive Planetary Gear Carrier Into Center Shaft And Overdrive
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the No. 12 bearing is in place in the overdrive planetary prior to installing the overdrive sun gear.

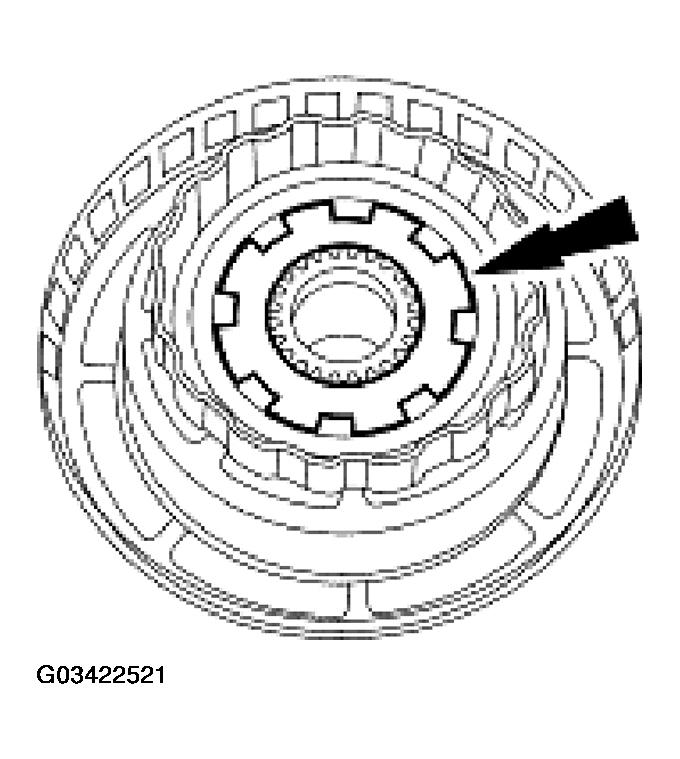

Fig 3: Installing Front Sun Gear With Recessed Gear Teeth Facing Toward Adapter

Courtesy of FORD MOTOR CO.

Install the front sun gear with the recessed gear teeth facing toward the adapter.

NOTE: Inspect the sun gear for damaged or worn teeth.

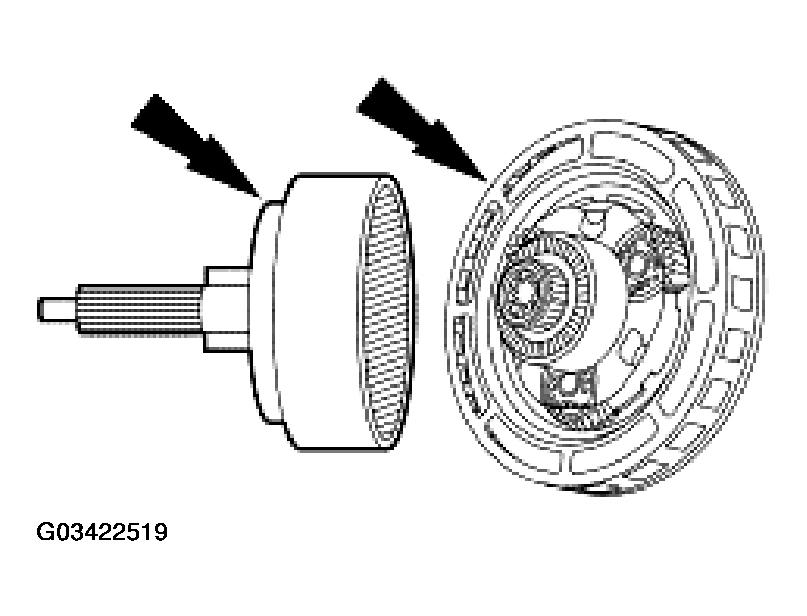

Fig 4: Installing Coast Clutch-To-Overdrive Carrier Adapter

Courtesy of FORD MOTOR CO.
