Overdrive Planetary Gears: Disassembly

NOTE: Individual parts of the planetary carriers are not serviceable.

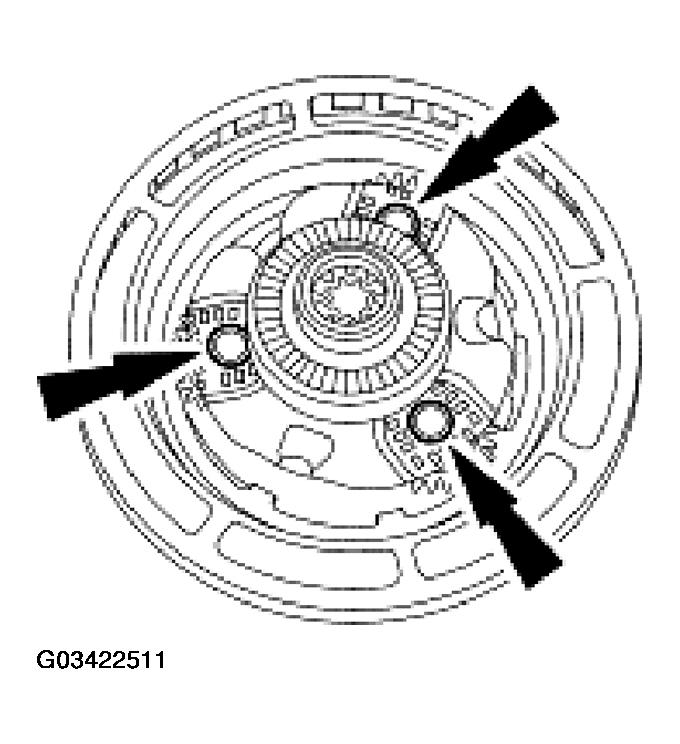

Fig 1: Checking Shaft Retaining Pins

Courtesy of FORD MOTOR CO.

Before installing a planetary assembly, the shaft retaining pins should be checked for adequate staking. Check the pins and shafts in the planetary assemblies for loose fit and/or complete disengagement. Install a new planetary assembly if necessary.

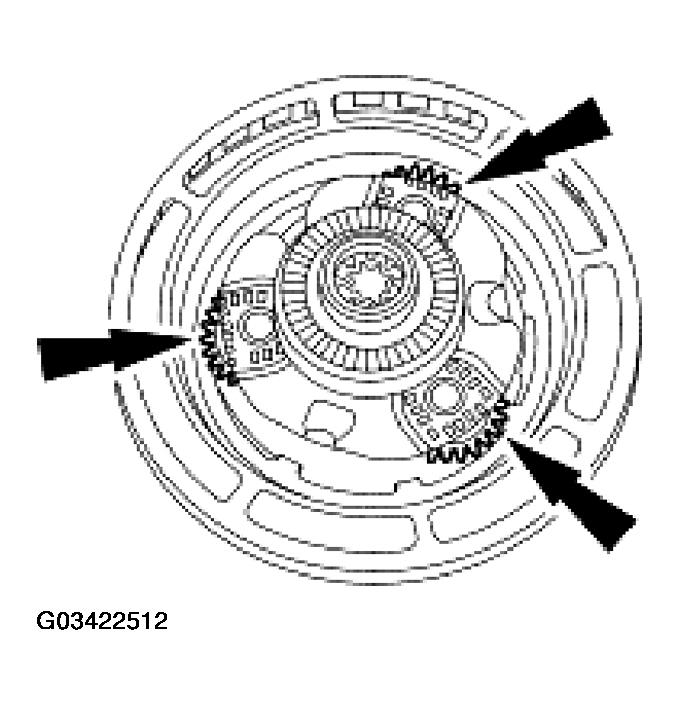

Inspect the pinion gears for damaged or excessively worn teeth, and for free rotation.

Fig 2: Inspecting Pinion Gears
Courtesy of FORD MOTOR CO.

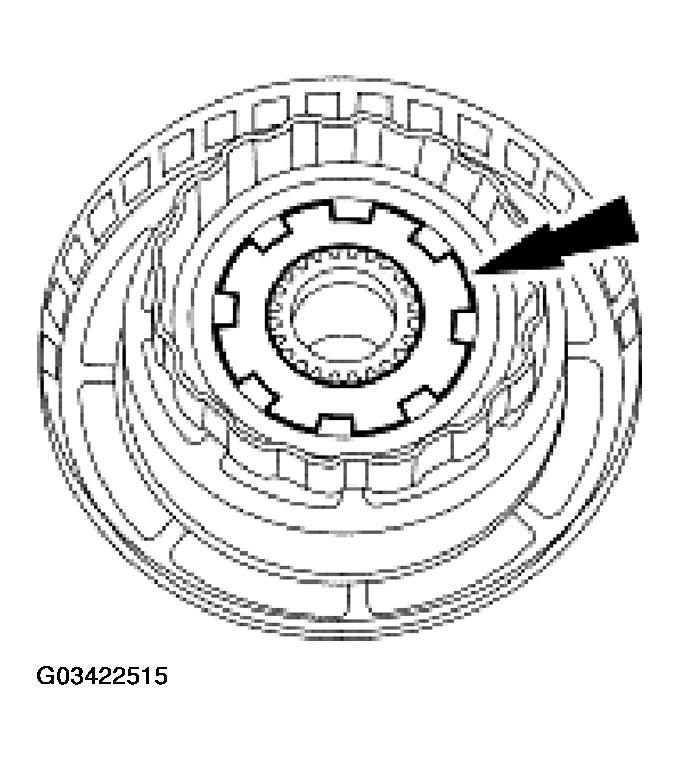

Inspect the overdrive one-way clutch inner race, and the inner and outer races for scored or damaged surface areas where the rollers contact the races.

Fig 3: Inspecting Overdrive One-Way Clutch Inner Race, And Inner And Outer Races
Courtesy of FORD MOTOR CO.

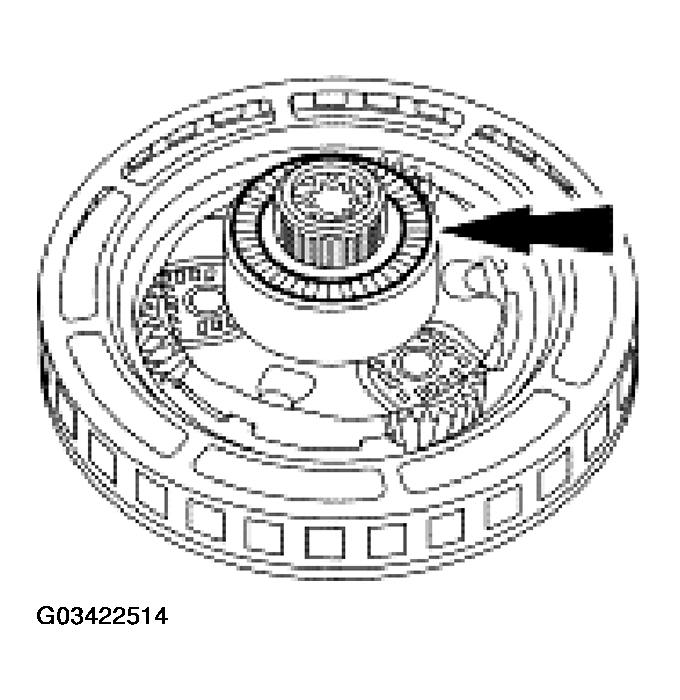

Remove and inspect the No. 2 overdrive planetary thrust bearing on the nose of the overdrive planetary gear carrier assembly.

Fig 4: Inspecting No. 2 Overdrive Planetary Thrust Bearing On Nose Of Overdrive Planetary Gear Carrier Assembly
Courtesy of FORD MOTOR CO.

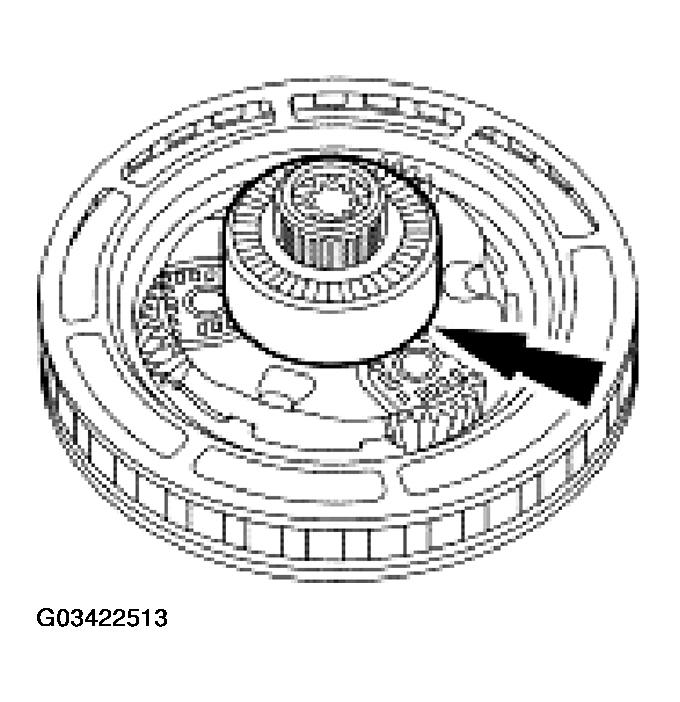

NOTE: Inspect the sun gear for damaged or worn teeth.

Fig 5: Removing Coast Clutch-To-Overdrive Carrier Adapter

Courtesy of FORD MOTOR CO.

Remove the coast clutch-to-overdrive carrier adapter.

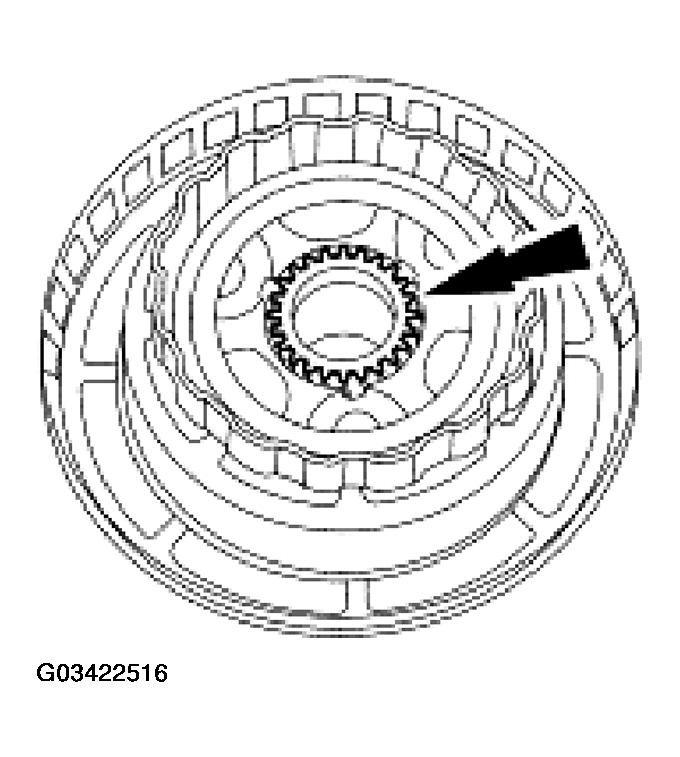

Remove and inspect the overdrive sun gear.

Fig 6: Inspecting Overdrive Sun Gear
Courtesy of FORD MOTOR CO.

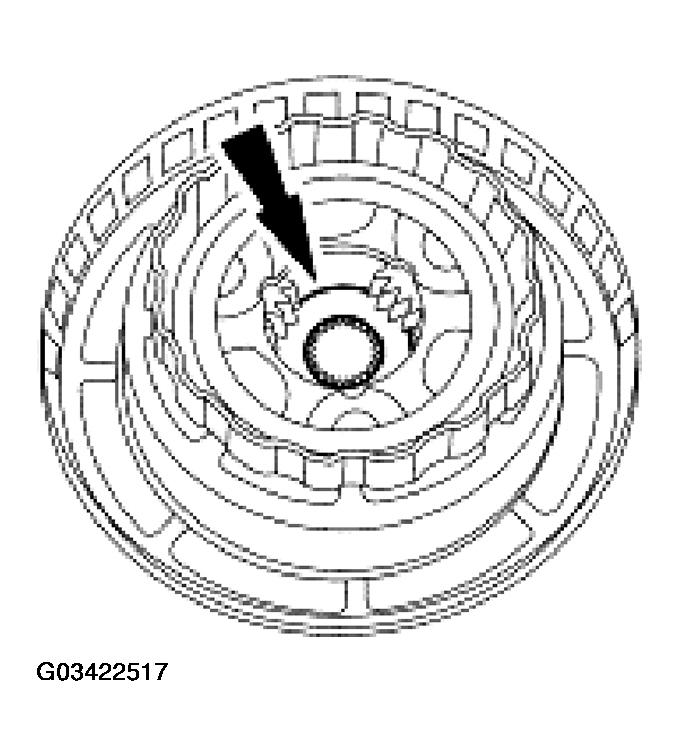

CAUTION: Do not attempt to remove the No. 12 bearing from behind the pinion gears.

Fig 7: Inspecting No. 12 Bearing

Courtesy of FORD MOTOR CO.
