Digital Transmission Range (TR) Sensor: Installation

    CAUTION: The digital transmission range sensor must fit flush against the boss on the case to prevent damage to the sensor.

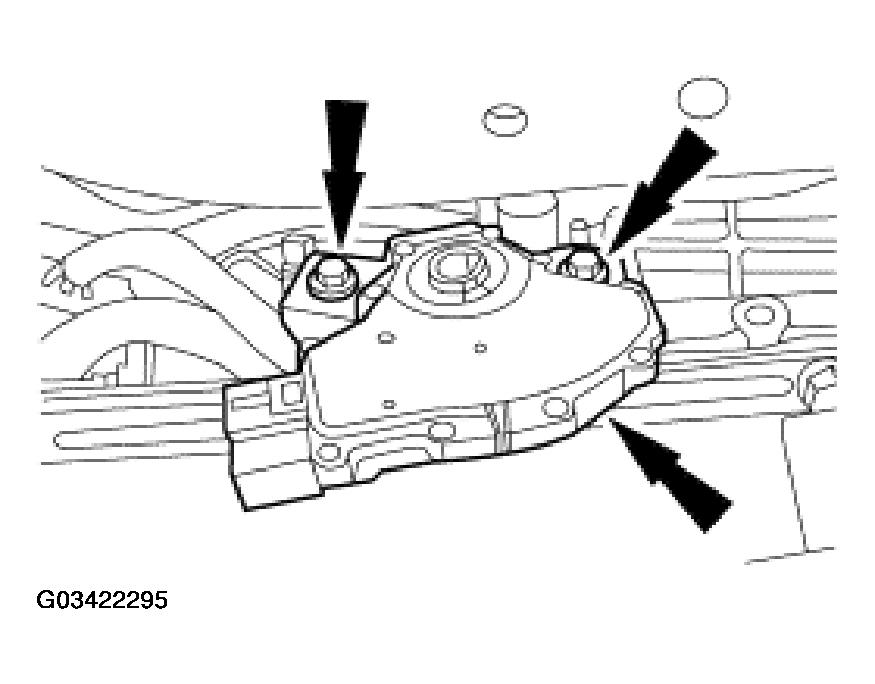

    Fig 1: Installing Digital TR Sensor
    G03422295Courtesy of FORD MOTOR CO.
  1. Install the digital TR sensor and loosely install the screws.
  2. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
    NOTE: The manual lever must be in the NEUTRAL position.

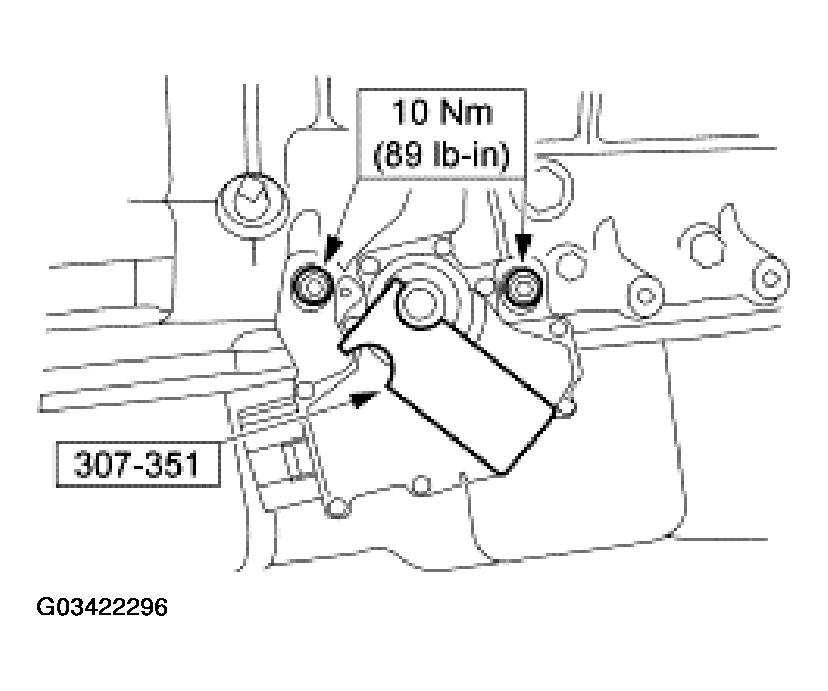

    Fig 2: Aligning Digital TR Sensor
    G03422296Courtesy of FORD MOTOR CO.
  3. Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
  4. Reconnect the digital TR sensor connector.

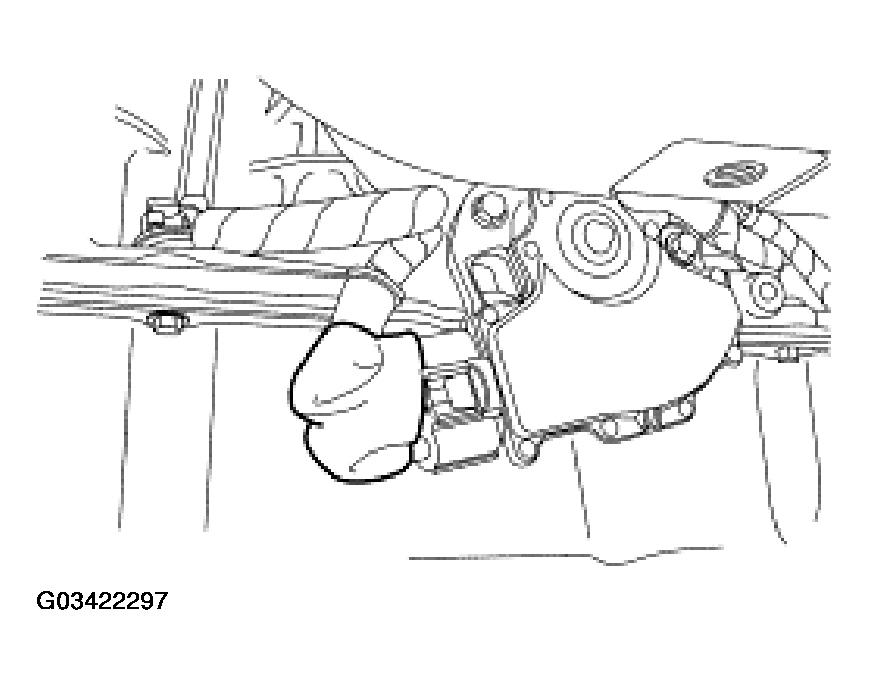

    Fig 3: Reconnecting Digital TR Sensor Connector
    G03422297Courtesy of FORD MOTOR CO.
  5. Slide the boot over the digital TR sensor connector and install a new tie strap.

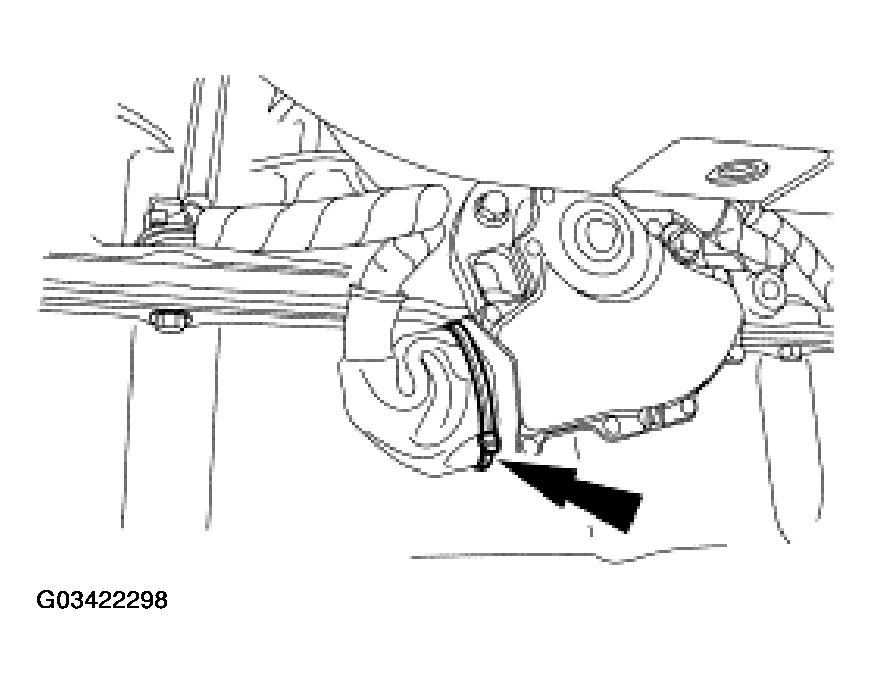

    Fig 4: Installing New Tie Strap
    G03422298Courtesy of FORD MOTOR CO.
  6. Connect the shift cable.

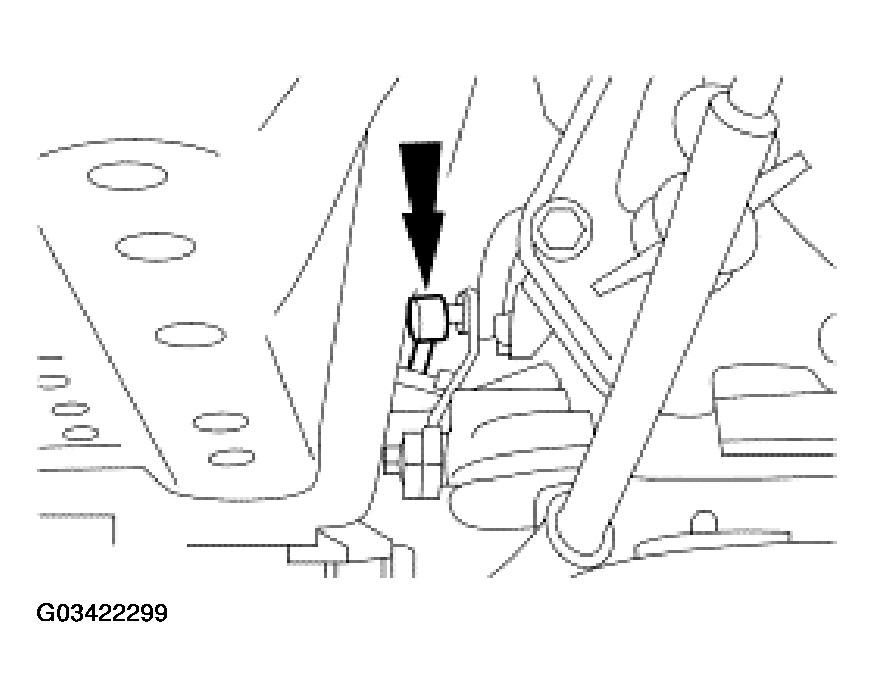

    Fig 5: Connecting Shift Cable
    G03422299Courtesy of FORD MOTOR CO.
  7. Install the rear transmission support and remove the transmission jack.

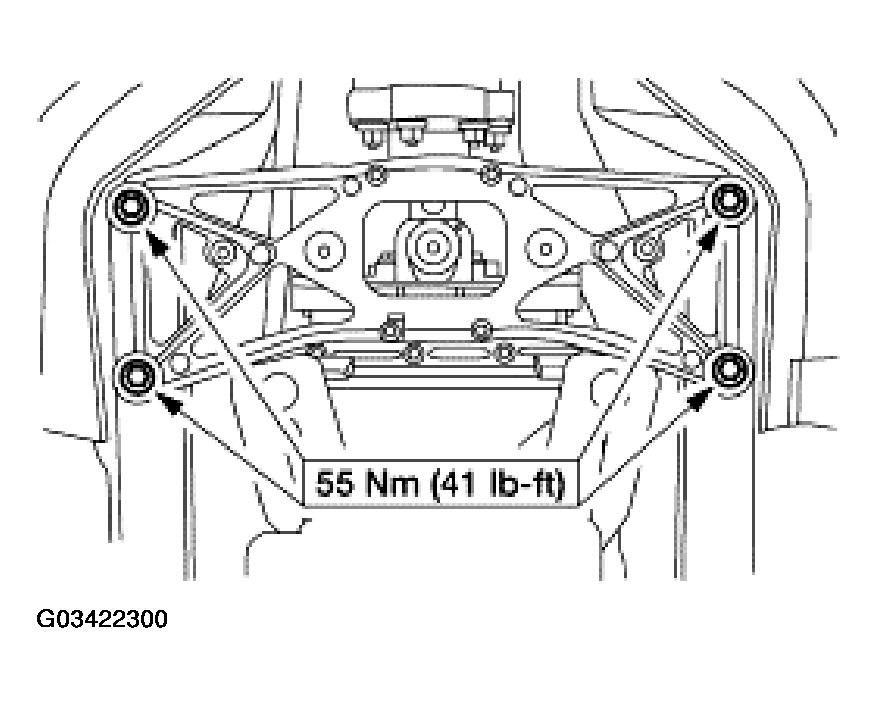

    Fig 6: Installing Rear Transmission Support
    G03422300Courtesy of FORD MOTOR CO.
  8. Verify that the shift cable is adjusted correctly. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
  9. CAUTION: Align the index marks or driveshaft imbalance can occur.

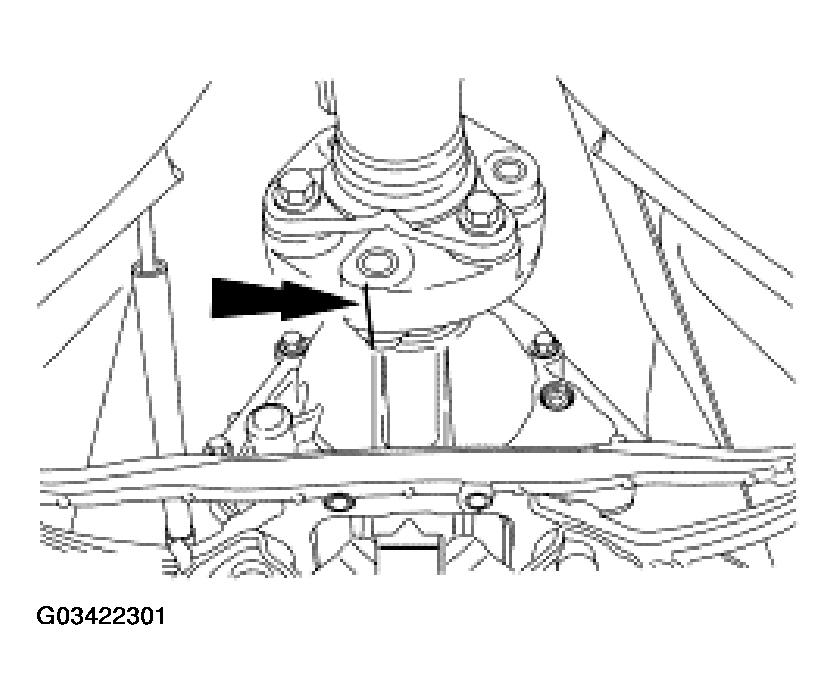

    Fig 7: Aligning Index Marks On Transmission Flange
    G03422301Courtesy of FORD MOTOR CO.
  10. Align index marks made during removal and position the driveshaft on the transmission flange.
  11. CAUTION: Install the bolts, washers and nuts in their original positions or driveshaft imbalance can occur. Install the driveshaft flex coupling bolts with the head of the bolt seated against the flange, and the nuts seated against the flex coupling.
    Fig 8: Identifying Driveshaft Flex Coupling Nuts Tightening Torque
    G03422302Courtesy of FORD MOTOR CO.
  12. Install the bolts, washers and nuts. Coat the nut and bolt threads with threadlock sealer.
  13. Install the exhaust heat shield. .
  14. Lower the vehicle.
