Main Control Valve Body: Removal

NOTE: When the battery is disconnected or a new battery installed, certain transmission operating parameters can be lost. The powertrain control module (PCM) must relearn these parameters. During this learning process, you may experience slightly firm shifts, delayed, or early shifts. This operation is considered normal and will not affect the function of the transmission. Normal operation will return once these parameters are stored by the PCM.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Drain the transmission fluid.

Fig 1: Draining Transmission Fluid
Courtesy of FORD MOTOR CO.
Remove the converter housing plug.

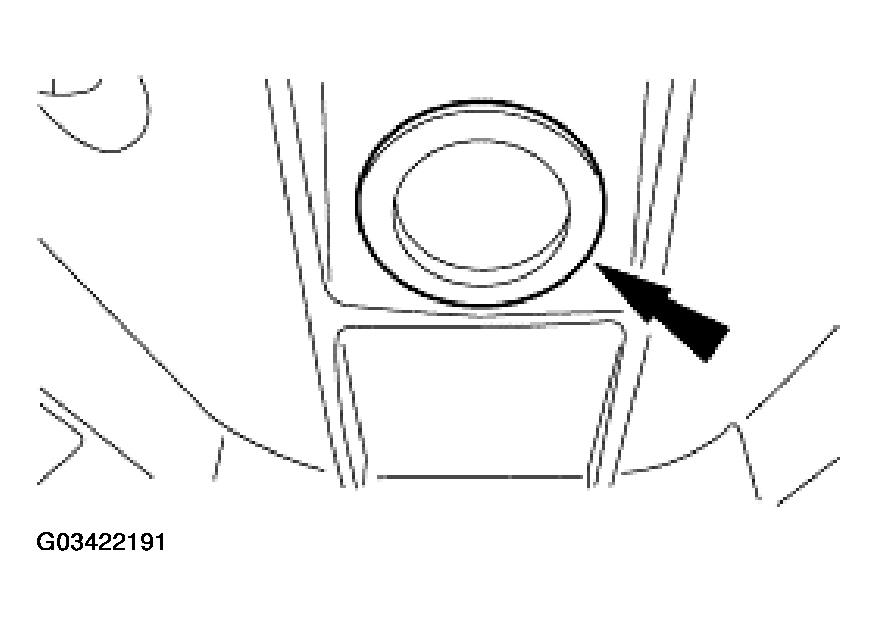

Fig 2: Removing Converter Housing Plug
Courtesy of FORD MOTOR CO.

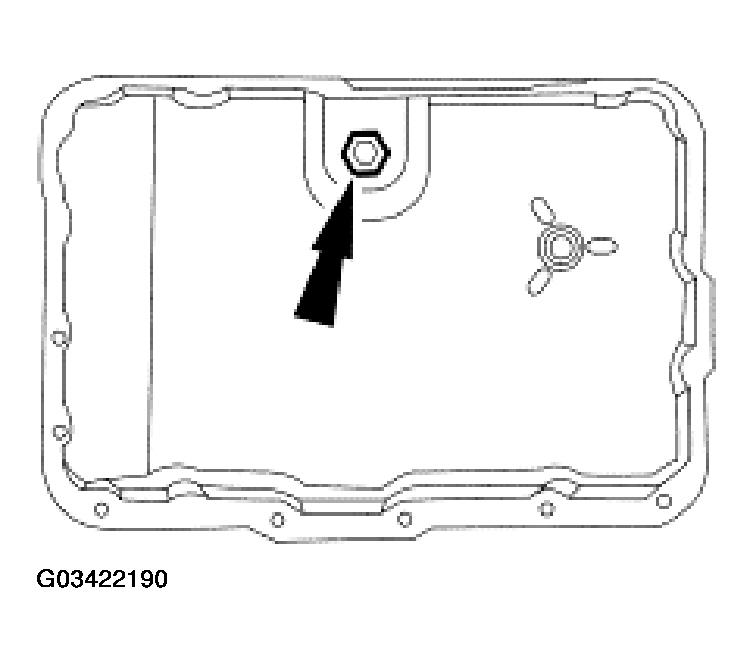

Remove the drain plug.

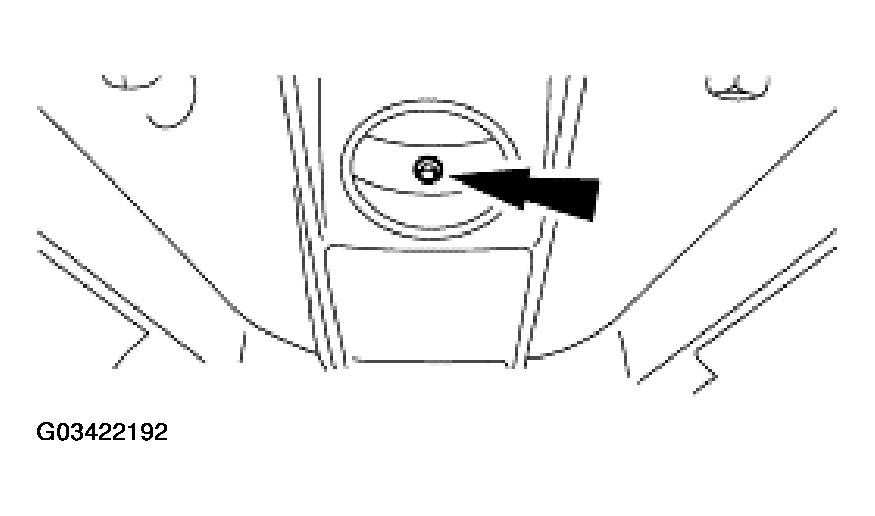

Fig 3: Removing Drain Plug
Courtesy of FORD MOTOR CO.
Disconnect the wire harness from the top of the transmission shift cable bracket.

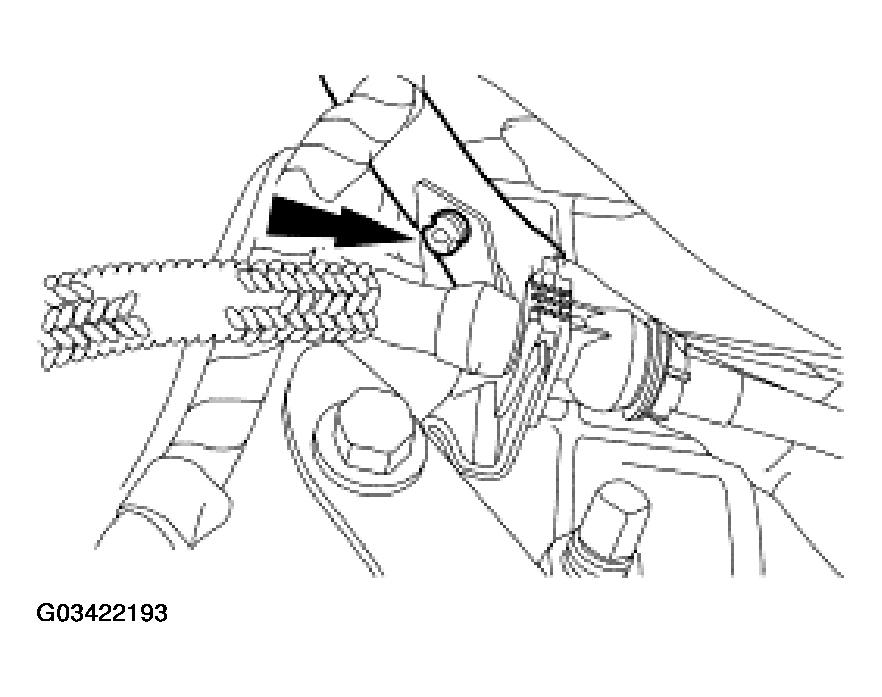

Fig 4: Disconnecting Wire Harness From Top Of Transmission Shift Cable Bracket
Courtesy of FORD MOTOR CO.

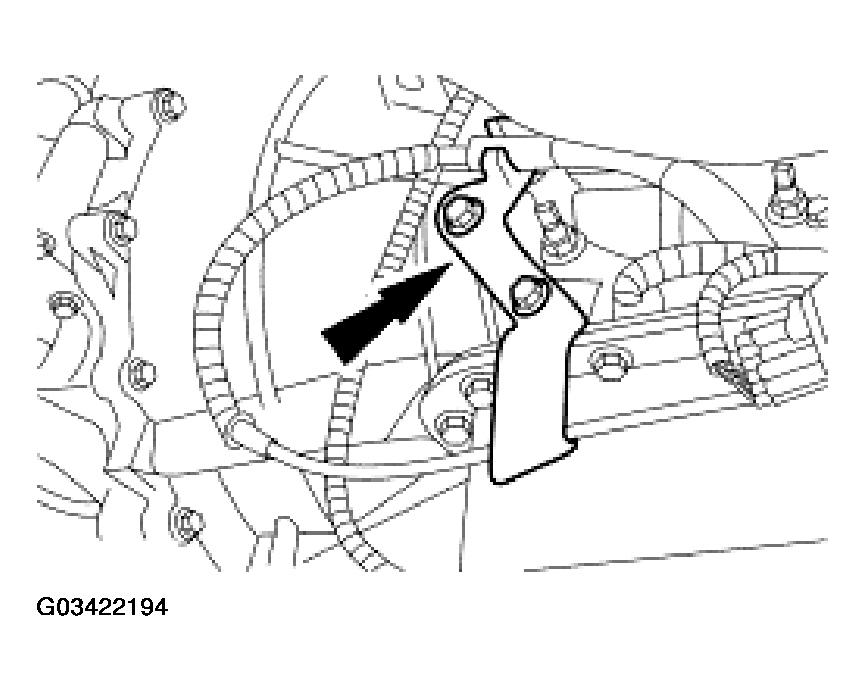

Remove the transmission shift cable bracket and position out of the way.

Fig 5: Removing Transmission Shift Cable Bracket
Courtesy of FORD MOTOR CO.

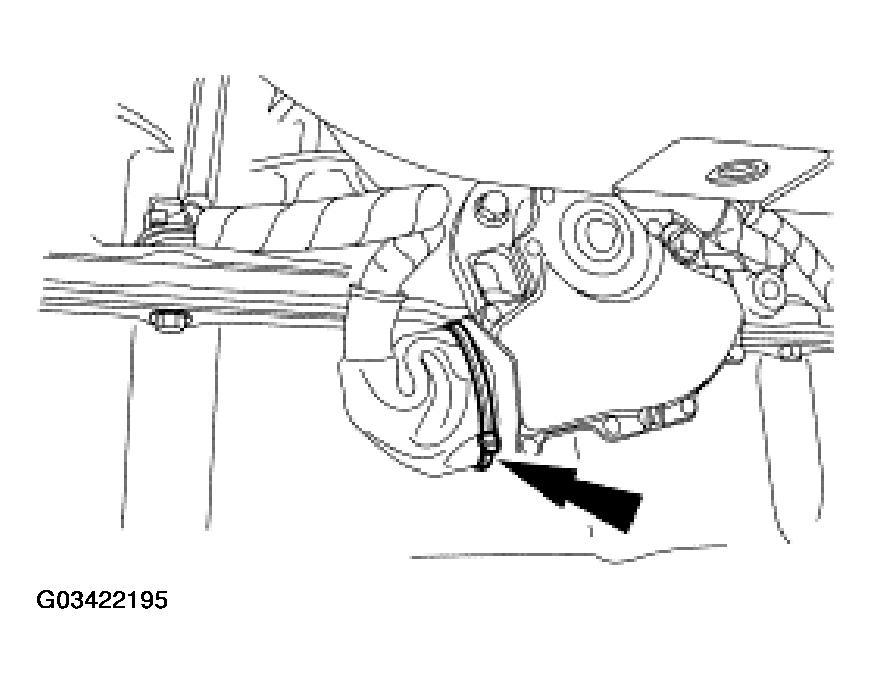

Remove and discard the tie strap from the digital TR sensor connector.

Fig 6: Removing Tie Strap From Digital TR Sensor Connector
Courtesy of FORD MOTOR CO.
Slide the rubber boot back to gain access to the connector and disconnect the digital transmission range (TR) sensor connector.

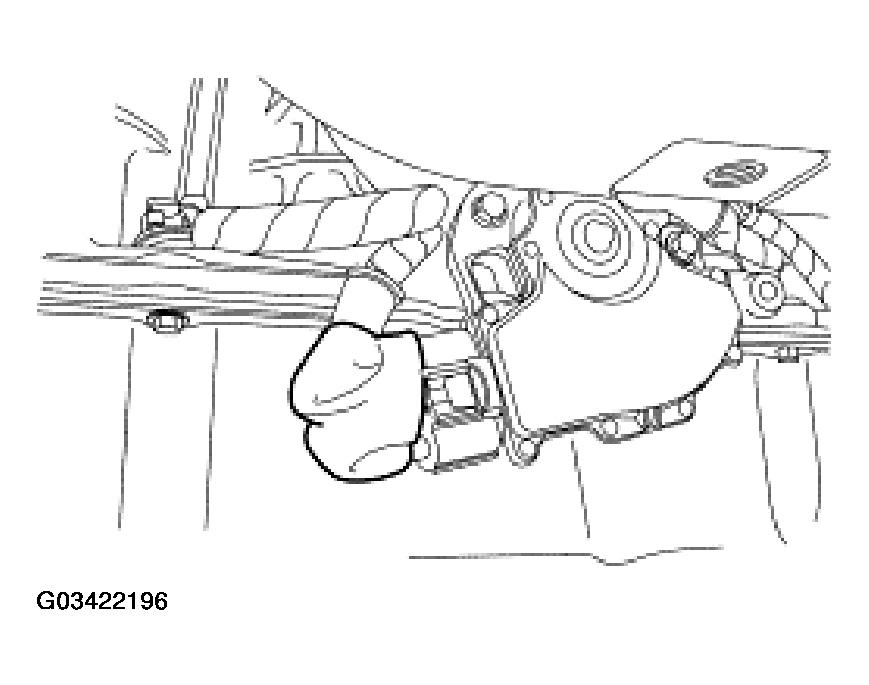

Fig 7: Disconnecting Digital Transmission Range (TR) Sensor Connector
Courtesy of FORD MOTOR CO.

NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.

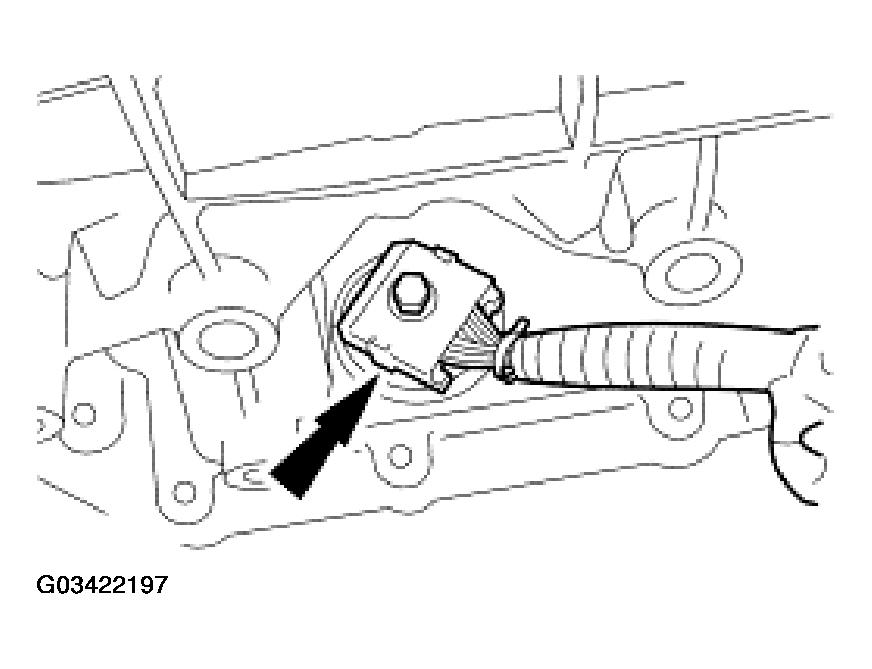

Fig 8: Disconnecting Transmission Connector

G03422197

Courtesy of FORD MOTOR CO.

Disconnect the transmission connector.
Disconnect the HO2S sensor connectors and remove the sensor wire retaining clip from the right side of the transmission pan rail.

Fig 9: Disconnecting HO2S Sensor Connectors
Courtesy of FORD MOTOR CO.
Remove the HO2S sensor connector from the front of the transmission pan rail.

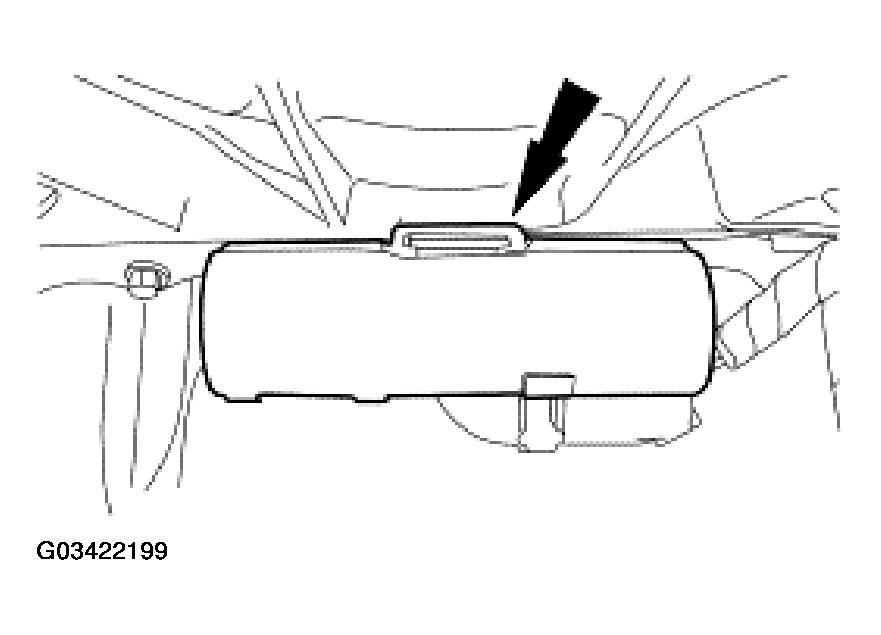

Fig 10: Removing HO2S Sensor Connector From Front Of Transmission Pan Rail
Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

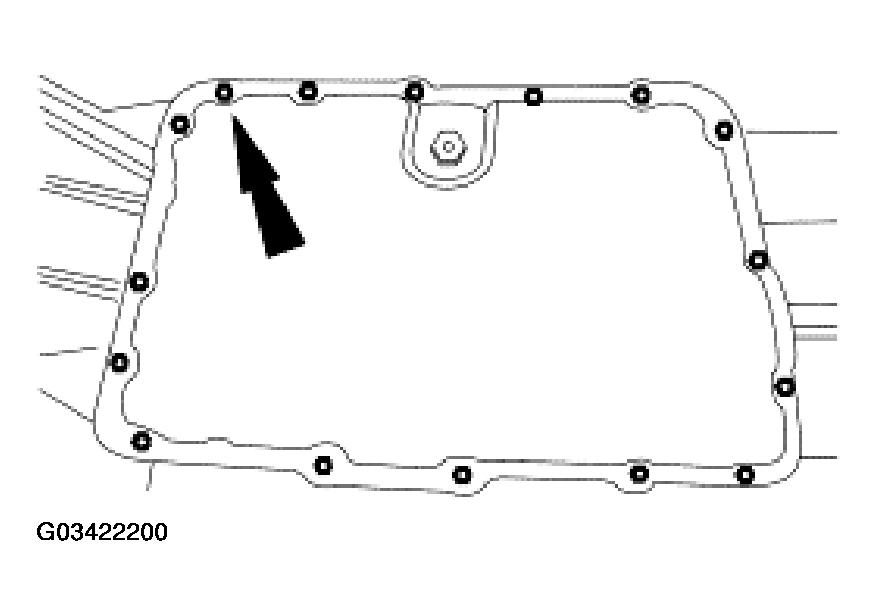

Fig 11: Removing Transmission Fluid Pan And Gasket

G03422200

Courtesy of FORD MOTOR CO.

Remove the transmission fluid pan and gasket.

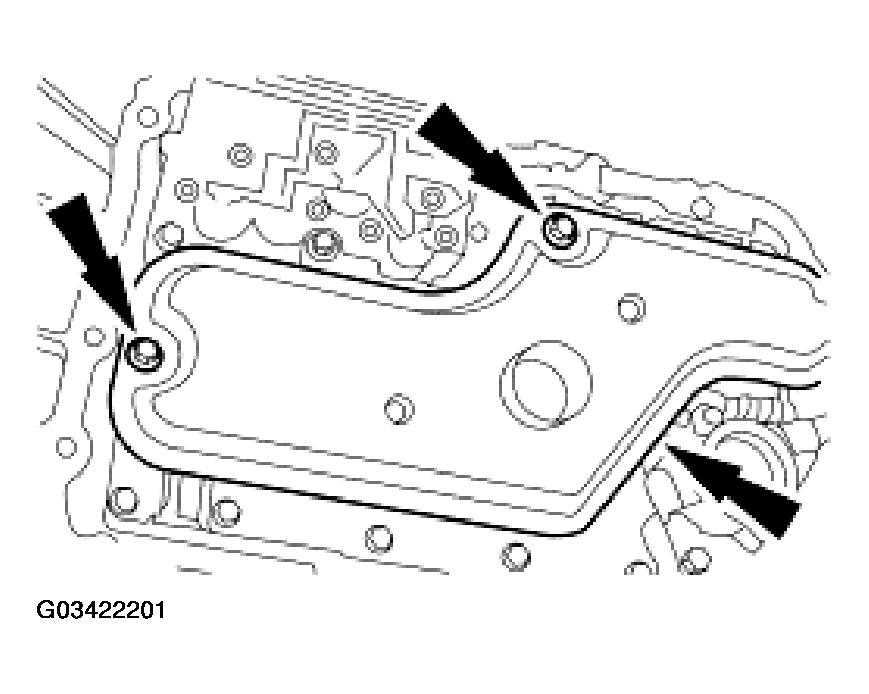

Remove the transmission fluid filter.

Fig 12: Removing Transmission Fluid Filter
Courtesy of FORD MOTOR CO.

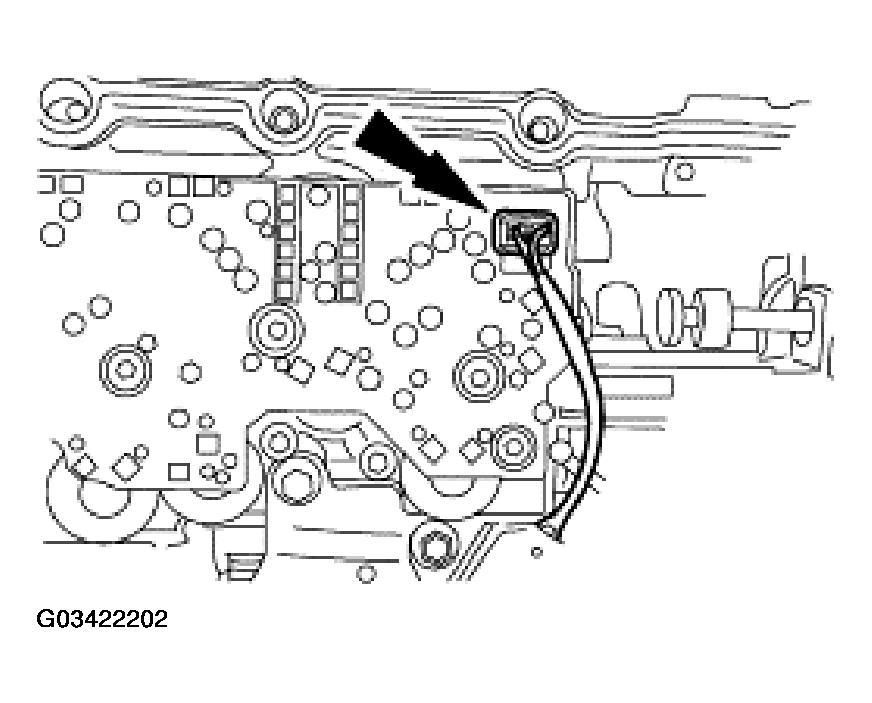

Disconnect the reverse pressure switch connector.

Fig 13: Disconnecting Reverse Pressure Switch Connector
Courtesy of FORD MOTOR CO.
Remove the reverse pressure switch and discard.

Fig 14: Removing Reverse Pressure Switch
Courtesy of FORD MOTOR CO.

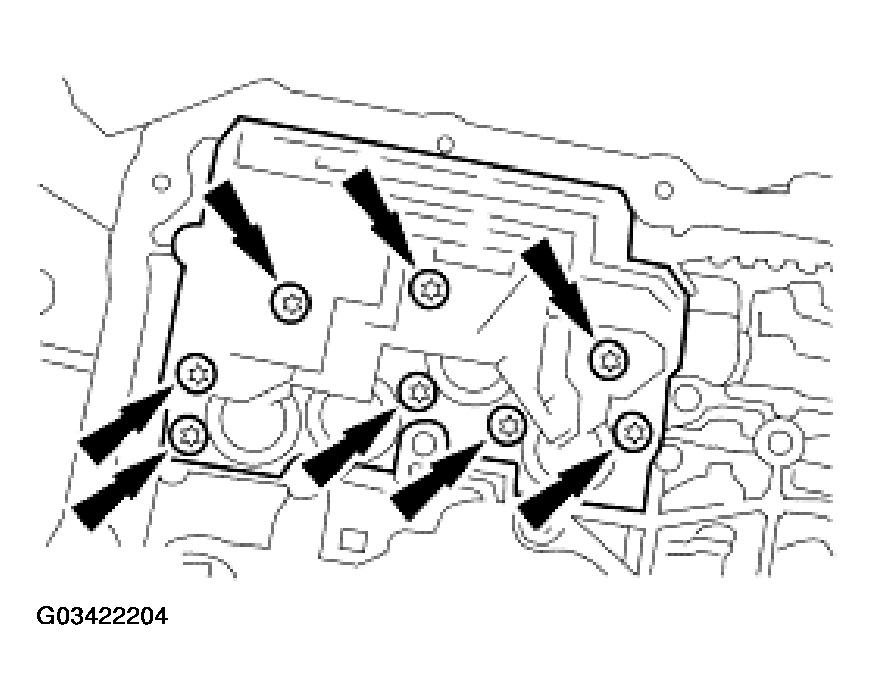

Remove the solenoid body.

Fig 15: Removing Solenoid Body
Courtesy of FORD MOTOR CO.

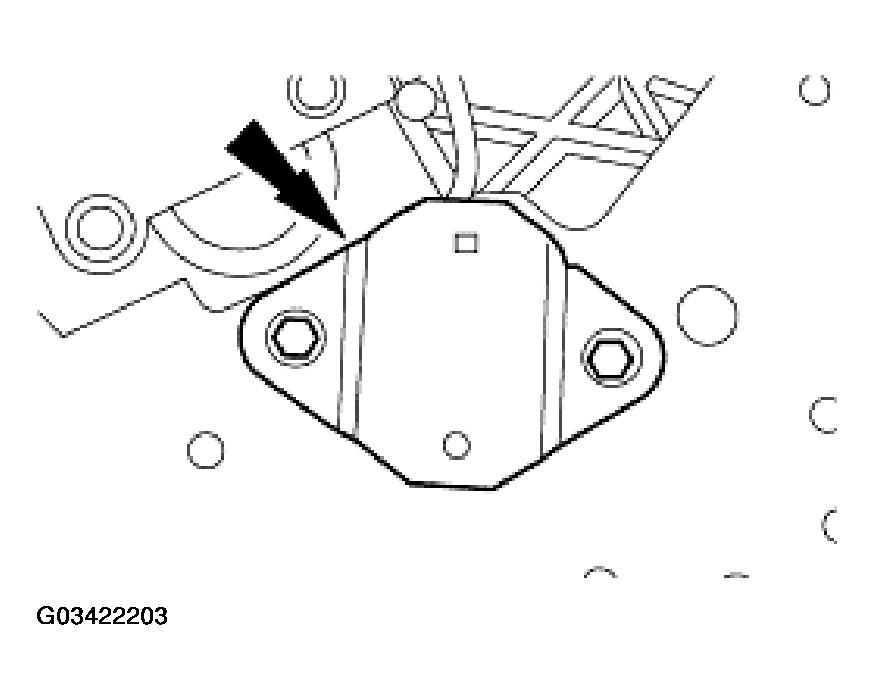

Remove the valve body cover plate and gasket.

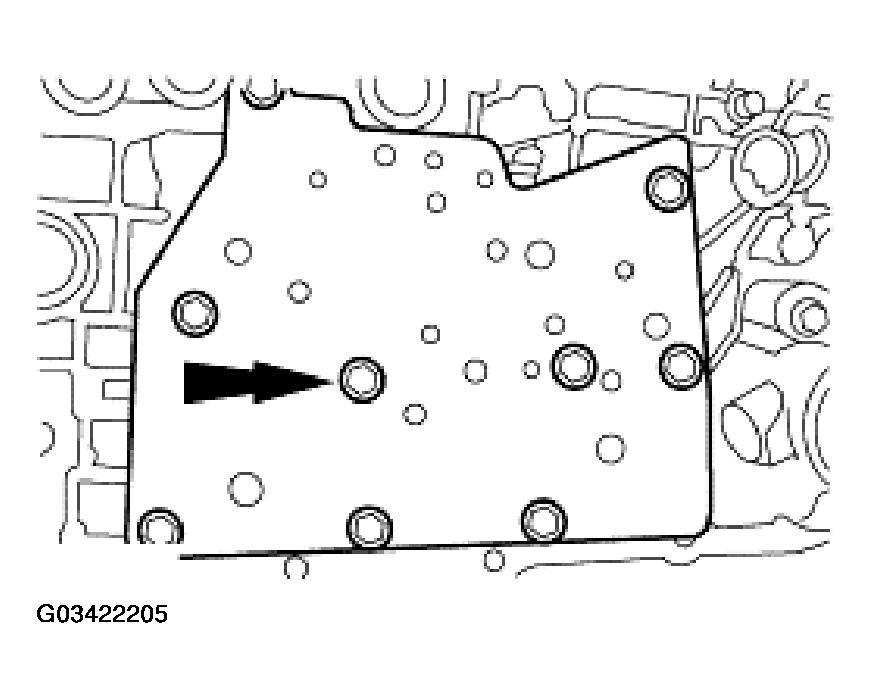

Fig 16: Removing Valve Body Cover Plate And Gasket
Courtesy of FORD MOTOR CO.

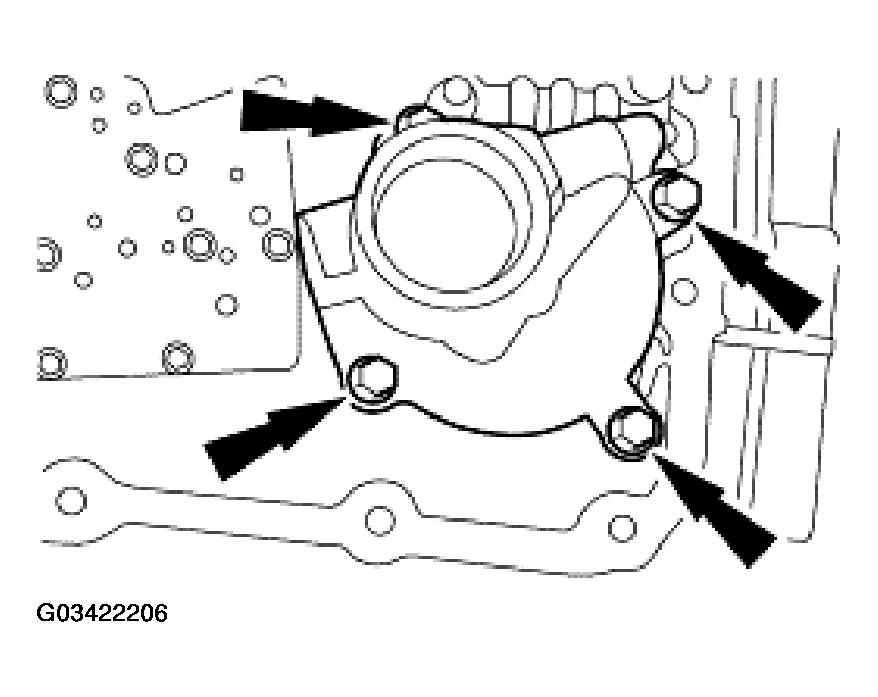

Remove the reverse servo.

Fig 17: Removing Reverse Servo
Courtesy of FORD MOTOR CO.

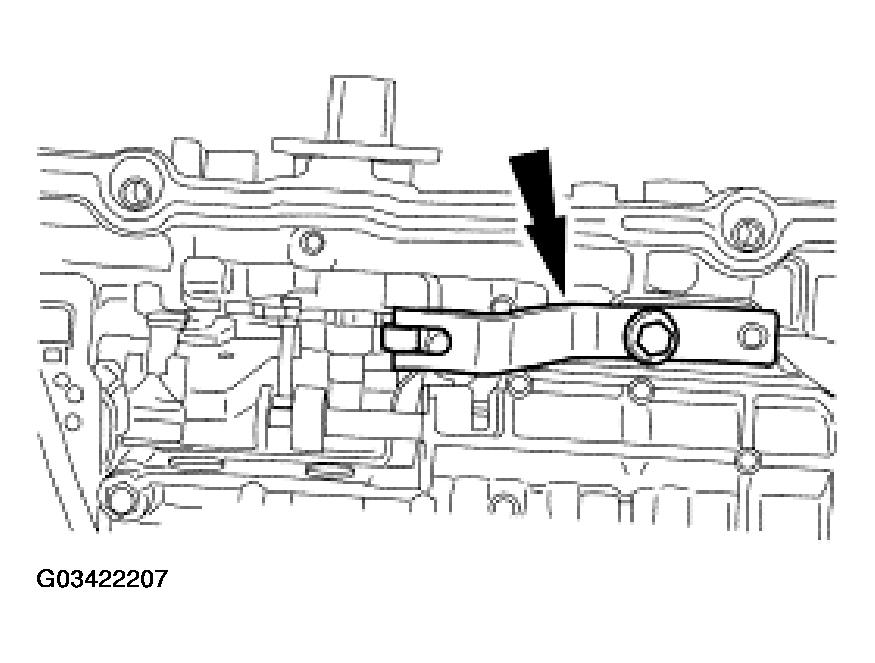

Remove the manual control valve detent spring.

Fig 18: Removing Manual Control Valve Detent Spring
Courtesy of FORD MOTOR CO.
Remove the main control valve body, separator plate and gasket.

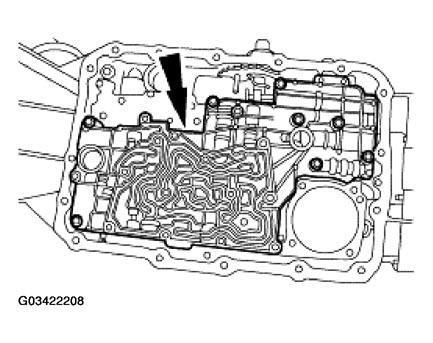

Fig 19: Removing Main Control Valve Body, Separator Plate And Gasket
Courtesy of FORD MOTOR CO.

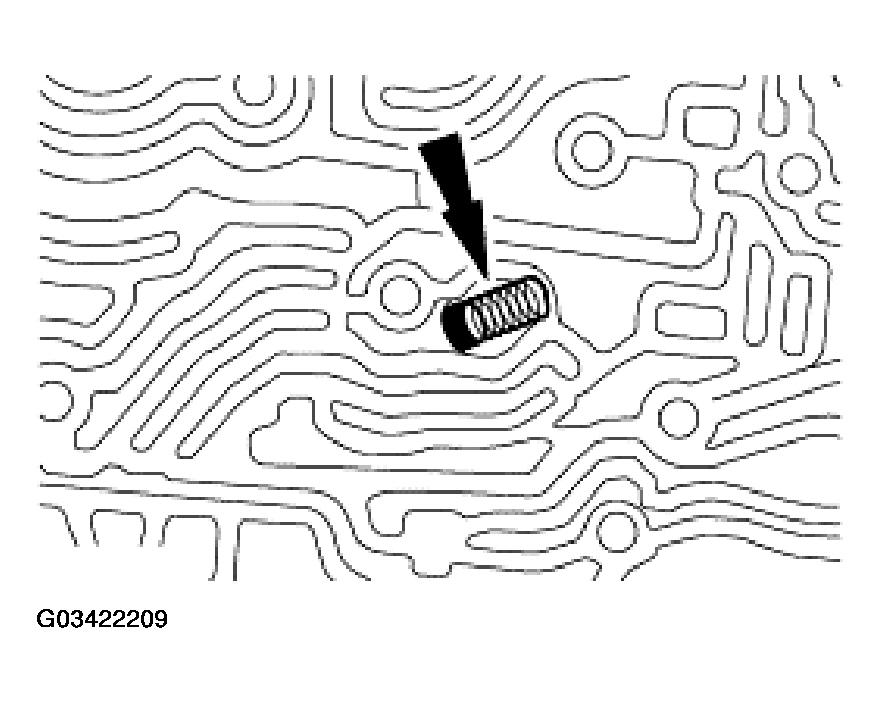

NOTE: The intermediate clutch spring and seal will fall out of the case.

Fig 20: Removing Intermediate Clutch Spring And Seal

G03422209

Courtesy of FORD MOTOR CO.

Remove the intermediate clutch spring and seal.
