Driver Seat: Installation

All vehicles

1. Position the seat in the vehicle.
2. Raise and support the vehicle.
3. Install the nuts.

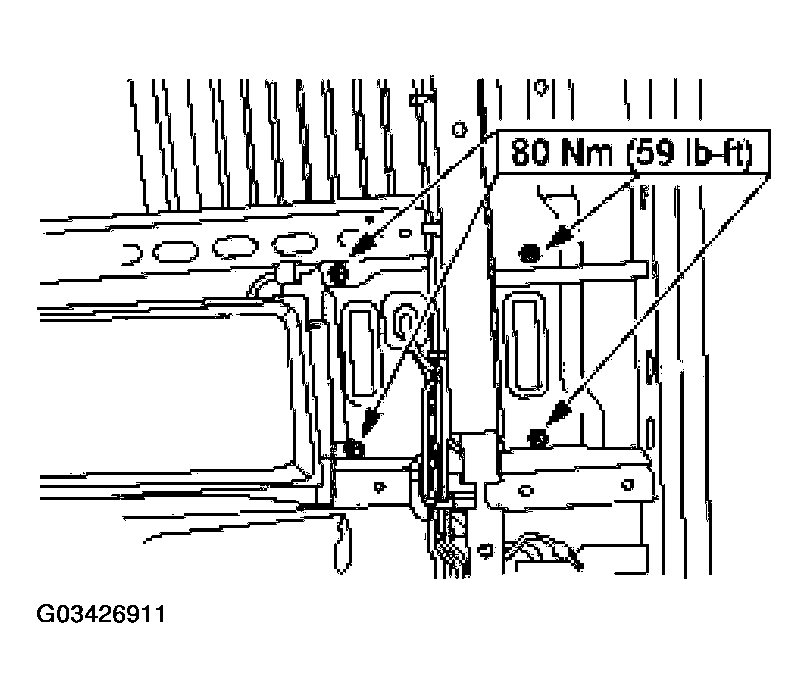

   Fig 1: Installing Nuts

   Courtesy of FORD MOTOR CO.
4. Lower the vehicle.
5. Connect the seat electrical connector.

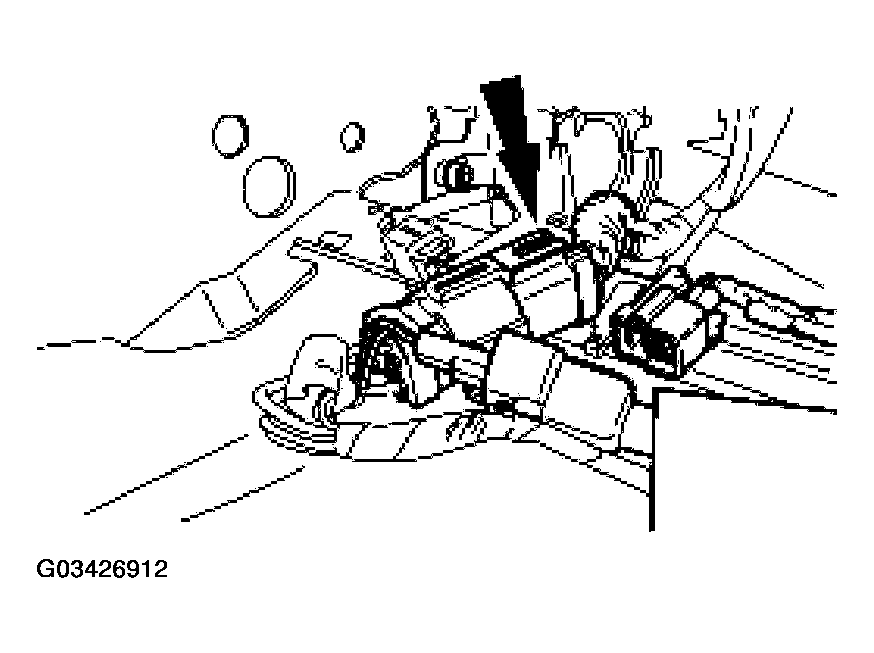

   Fig 2: Connecting Seat Electrical Connector

   Courtesy of FORD MOTOR CO.

   Vehicles without side air bags

6. Install the side air bag bridge resistor onto the seat frame.

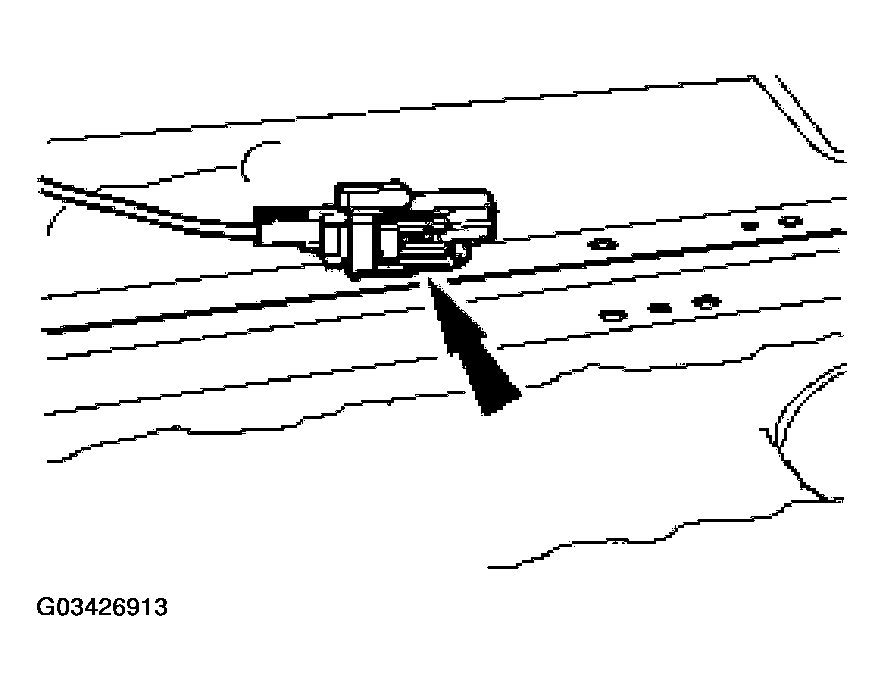

   Fig 3: Installing Side Air Bag Bridge Resistor Onto Seat Frame

   Courtesy of FORD MOTOR CO.

   Vehicles with side air bags

NOTE: The driver seat side air bag electrical connector has been removed from the seat for clarity.
7. Connect the driver seat side air bag electrical connector.
   1. Connect the driver seat side air bag electrical connector.
   2. Slide and engage the driver seat side air bag electrical connector locking clip.

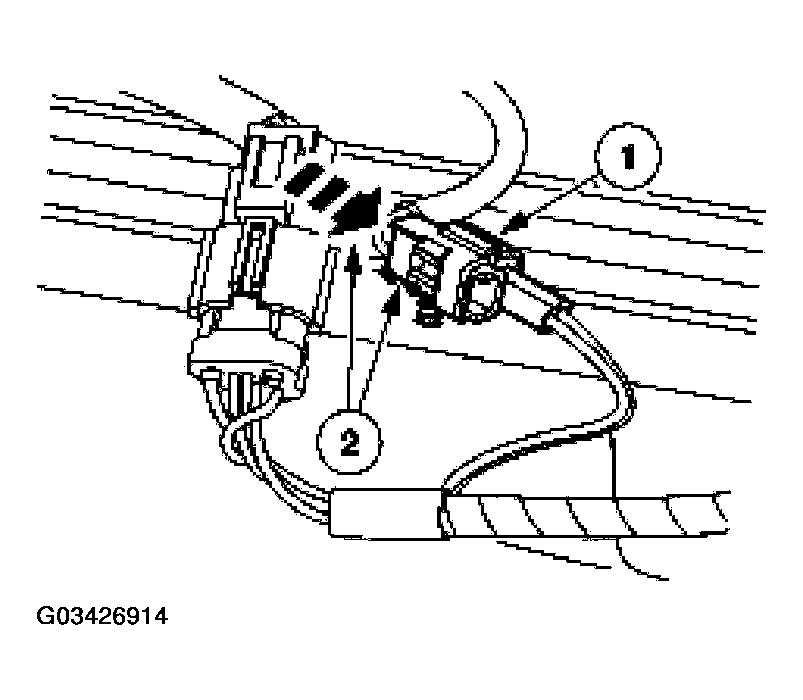

      Fig 4: Connecting Driver Seat Side Air Bag Electrical Connector

      Courtesy of FORD MOTOR CO.

      All vehicles

8. Repower the SRS. Refer to ACTIVATING SYSTEM .
9. Check the active restraint system for correct operation.
