Front Seat Backrest: Installation

All vehicles

1. Position the seat backrest to the seat cushion, and install the bolts.

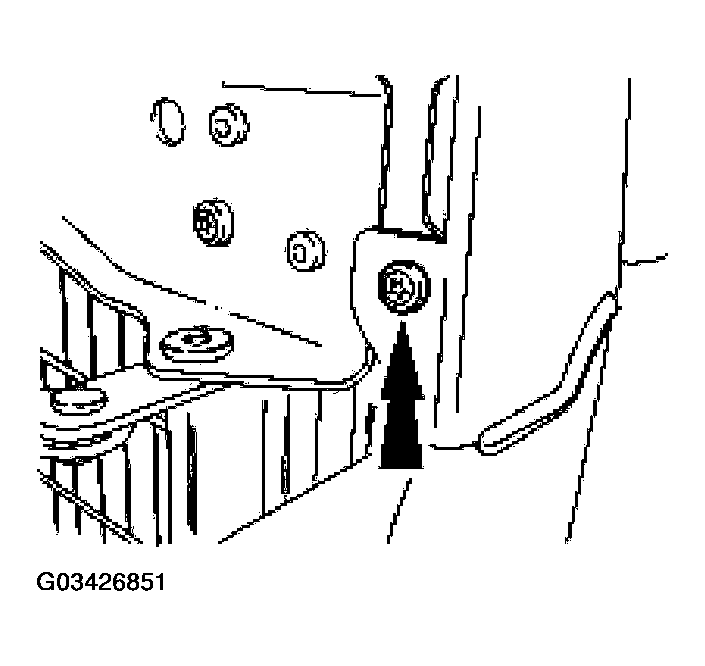

   Fig 1: Installing Seat Backrest To Seat Cushion And Bolts

   Courtesy of FORD MOTOR CO.
2. Install the bolt.

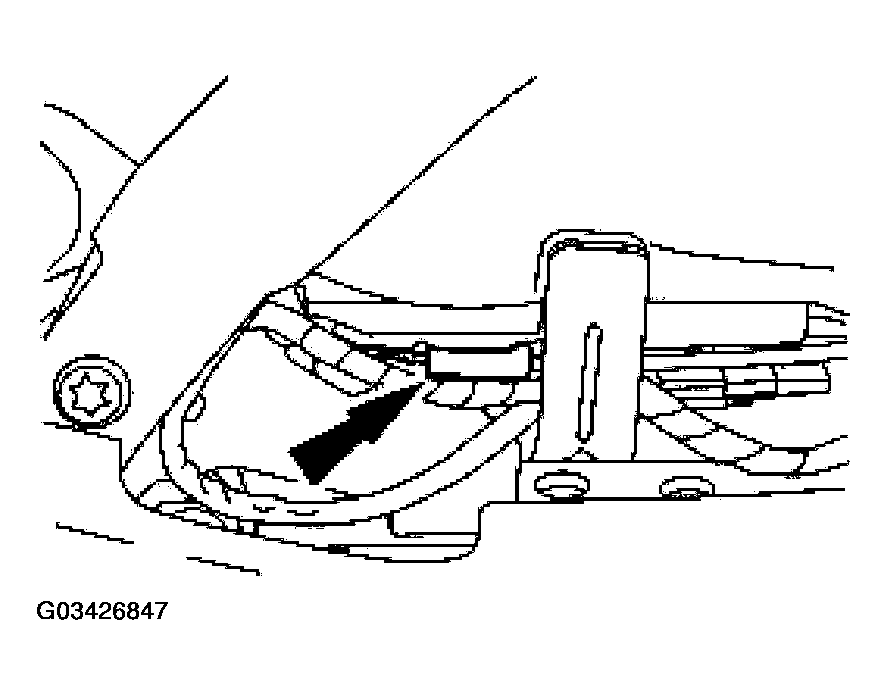

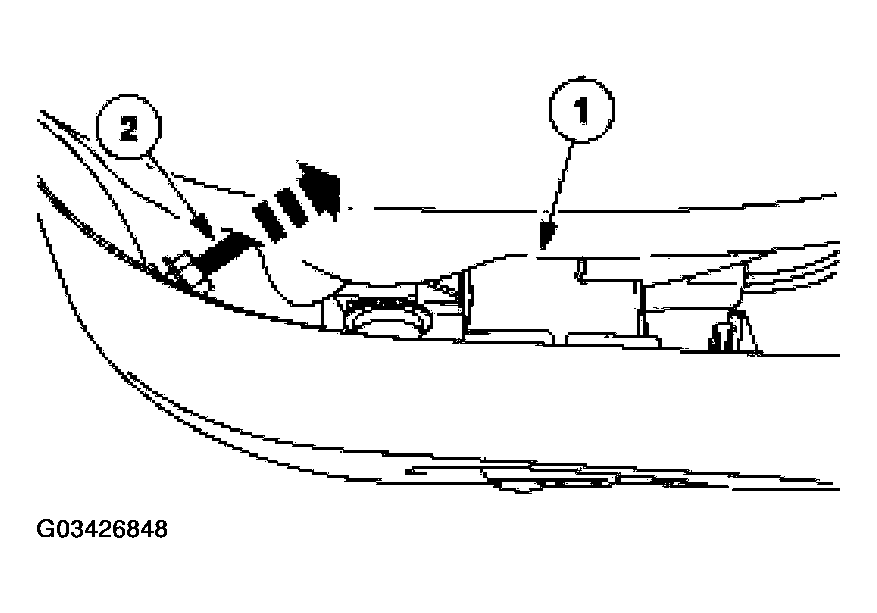

   Fig 2: Installing Bolt

   Courtesy of FORD MOTOR CO.

   Vehicles with side air bag

3. Route the side air bag module wire harness as noted in removal. Install the pin-type retainers.

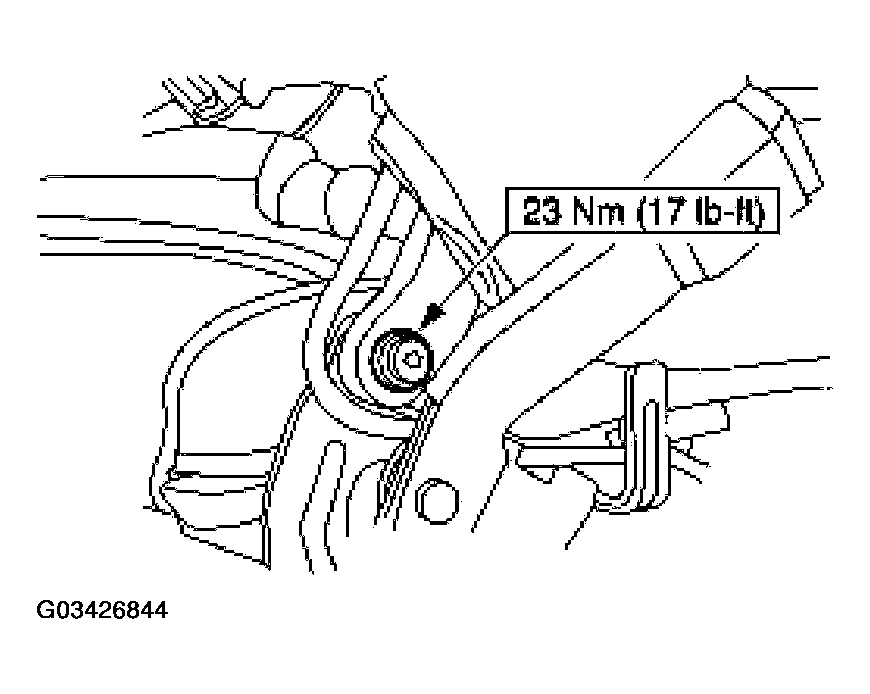

   Fig 3: Routing Side Air Bag Module Wire Harness

   Courtesy of FORD MOTOR CO.

   All vehicles

4. Reposition the seat backrest trim cover. Connect the J-clips.

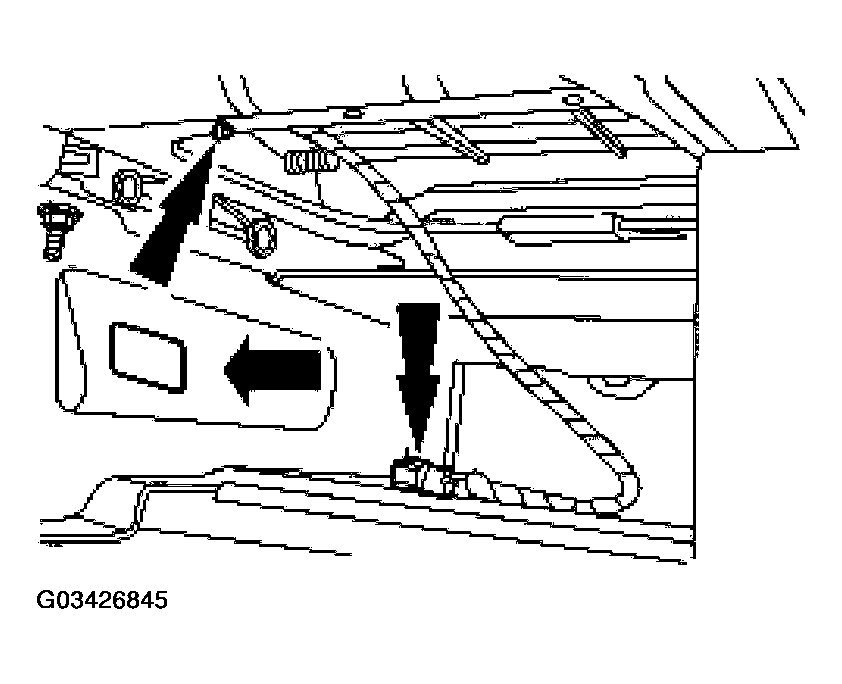

   Fig 4: Installing Seat Backrest Trim Cover And Connecting J-Clips

   Courtesy of FORD MOTOR CO.

   Vehicles with power lumbar

5. Connect the power lumbar hose.

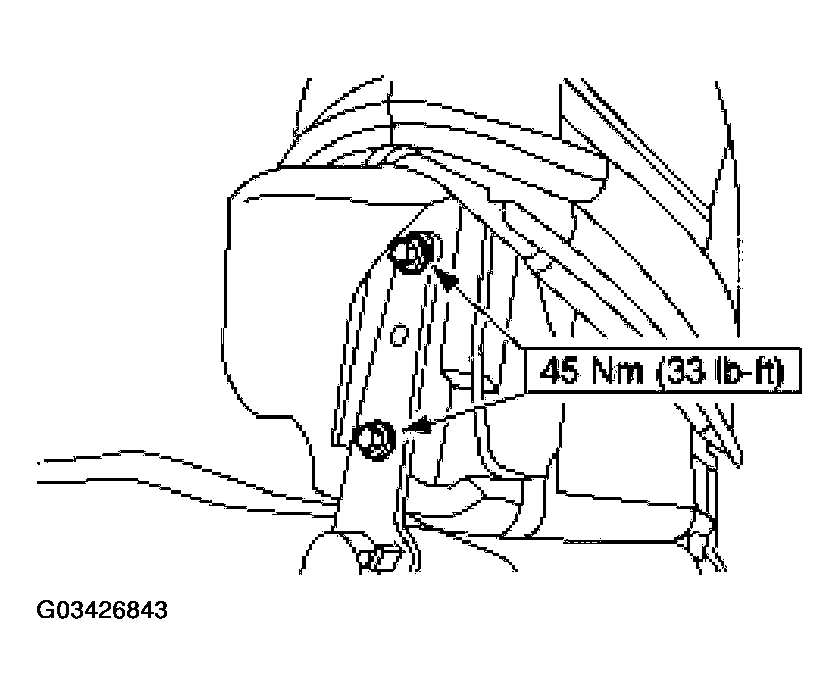

   Fig 5: Connecting Power Lumbar Hose

   Courtesy of FORD MOTOR CO.

   All vehicles

6. Position the inboard side shield.
   1. Install the power lumbar switch to the side shield.
   2. Install the inboard side shield front retainer.

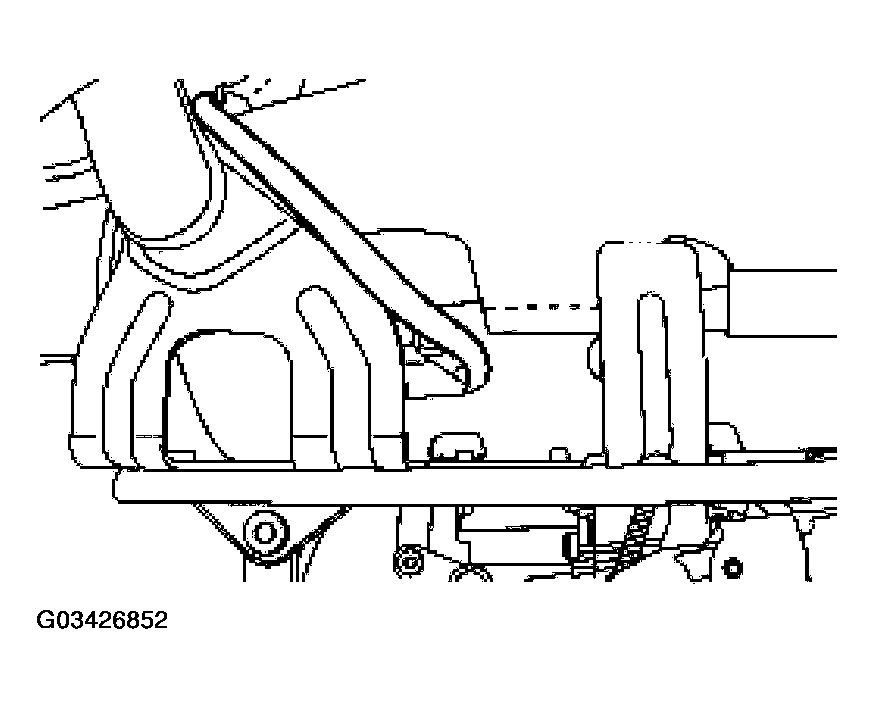

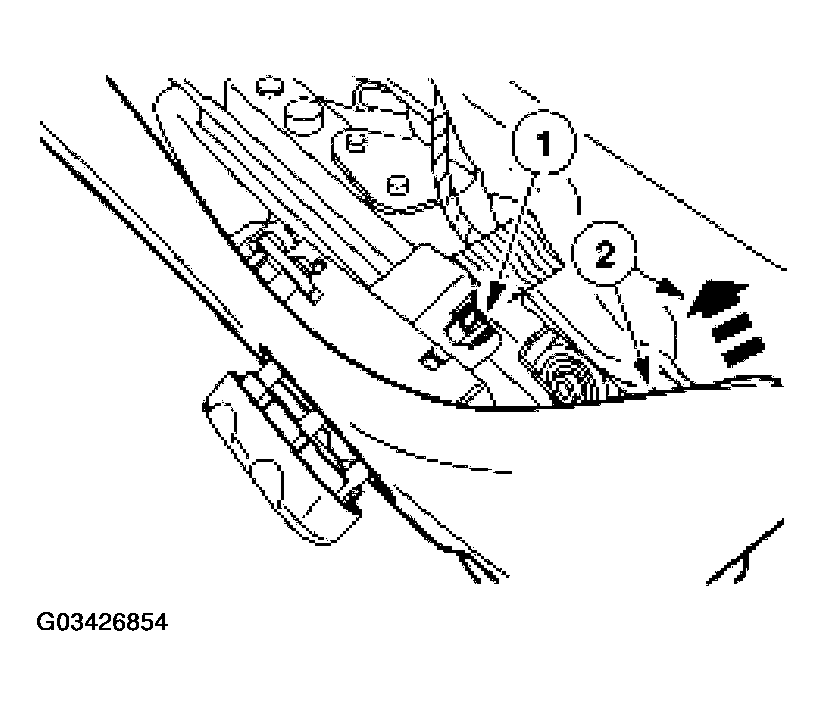

      Fig 6: Installing Inboard Side Shield Front Retainer

      Courtesy of FORD MOTOR CO.
7. Engage the inboard side shield retainers.
   1. Lift the inboard side shield.
   2. While holding the side shield up, rotate the side shield to engage the retainers.

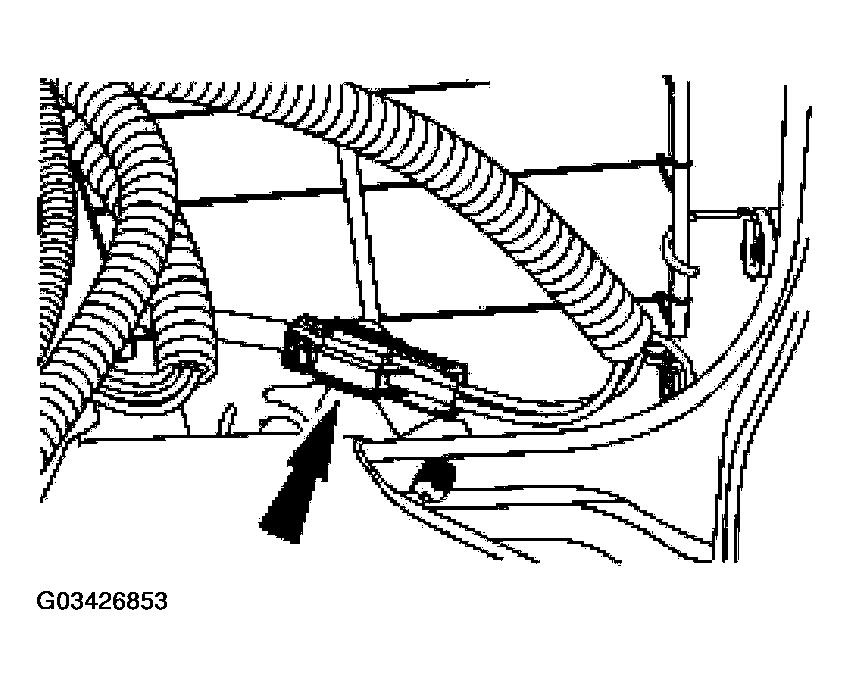

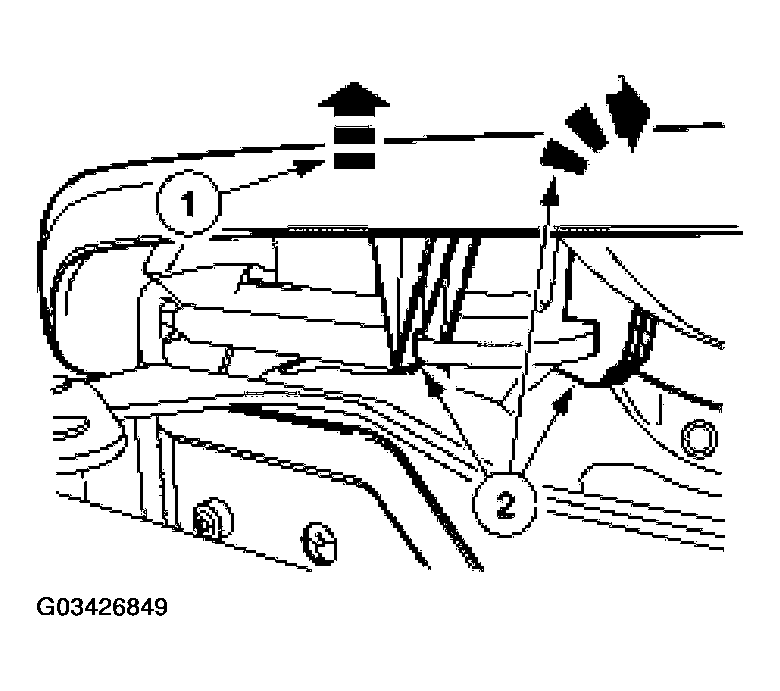

      Fig 7: Installing Inboard Side Shield Retainers

      Courtesy of FORD MOTOR CO.
8. Install the recliner handle cover.
   1. Lift up on the inboard side shield.
   2. Push in and then down to engage the side shield retainer.
   3. Install the recliner handle cover.

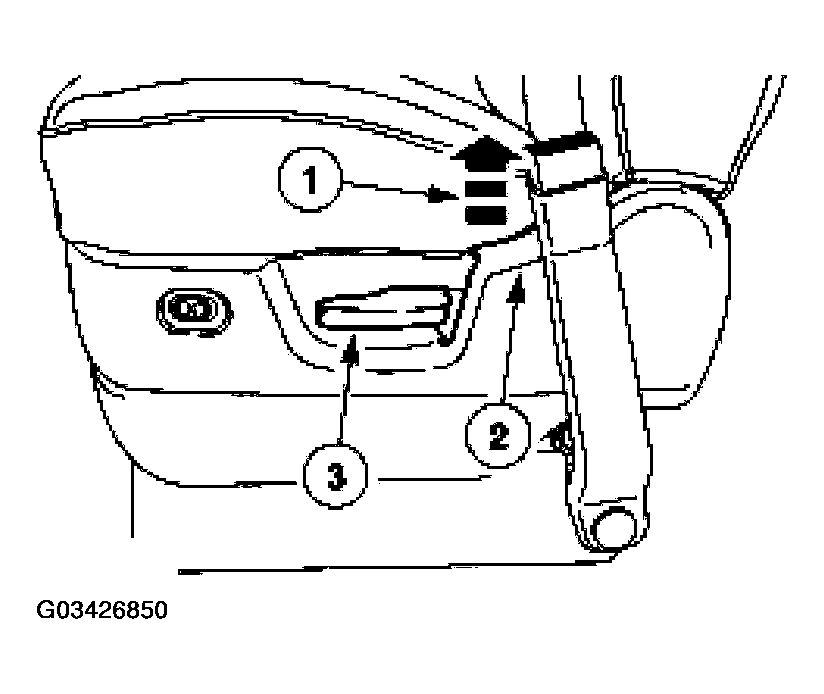

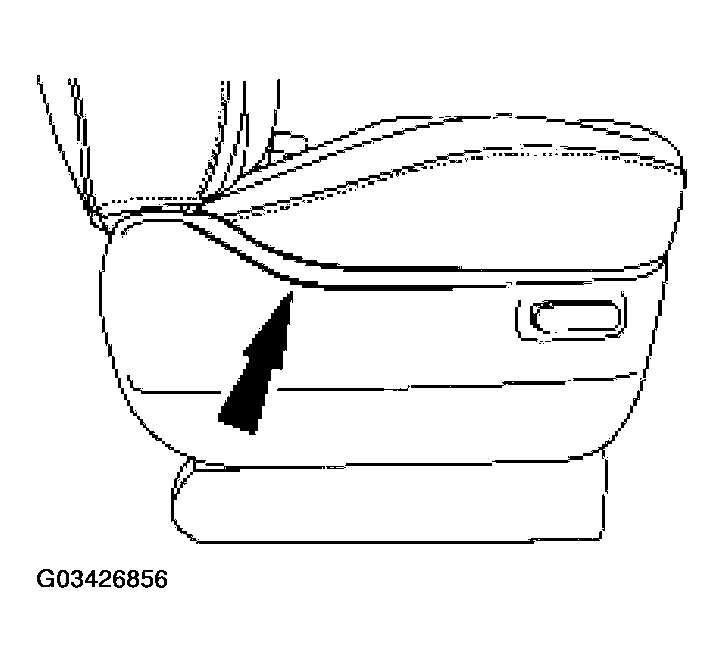

      Fig 8: Installing Recliner Handle Cover

      Courtesy of FORD MOTOR CO.
9. Install the inboard side shield screw.

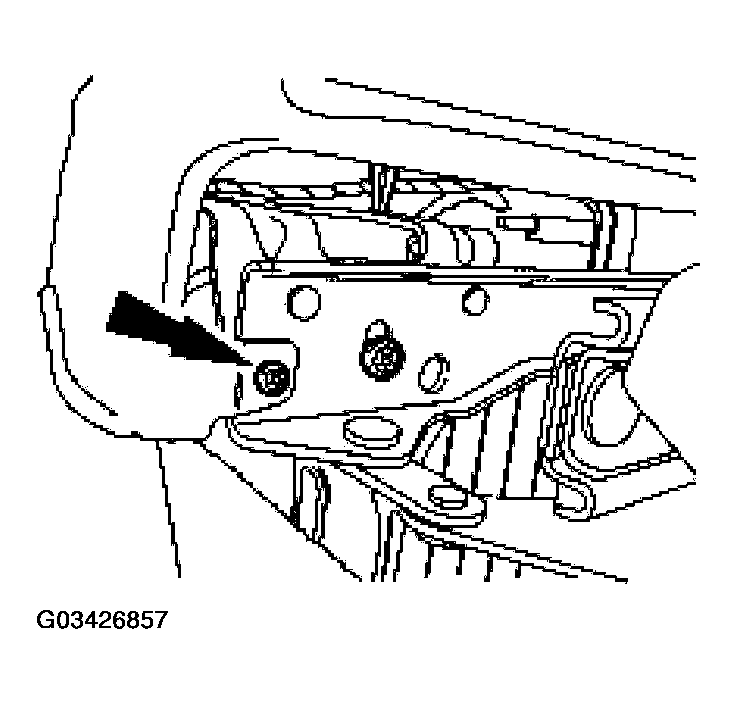

   Fig 9: Installing Inboard Side Shield Screw

   Courtesy of FORD MOTOR CO.

   Vehicles with heated seats

10. Route the heated seat back wire harness through the seat cushion pan.
    Fig 10: Routing Heated Seat Back Wire Harness

    Courtesy of FORD MOTOR CO.
11. Connect the heated seat back electrical connector.
    Fig 11: Connecting Heated Seat Back Electrical Connector

    Courtesy of FORD MOTOR CO.
12. Insert the electrical connector through the heated seat switch housing and connect the heated seat switch connector.
13. Insert the heated seat switch into the housing until the switch is seated in the housing.
14. Install the heated seat switch housing on the seat and install the two pin-type retainers.

    All vehicles

15. Position the outboard side shield.
    1. Connect the power seat switch electrical connector.
    2. Install the outboard side shield front retainer (not shown).
       Fig 12: Installing Outboard Side Shield Front Retainer

       Courtesy of FORD MOTOR CO.
16. Engage the outboard side shield retainers.
    1. Lift the outboard side shield.
    2. While holding the side shield up, rotate the side shield to engage the retainers.

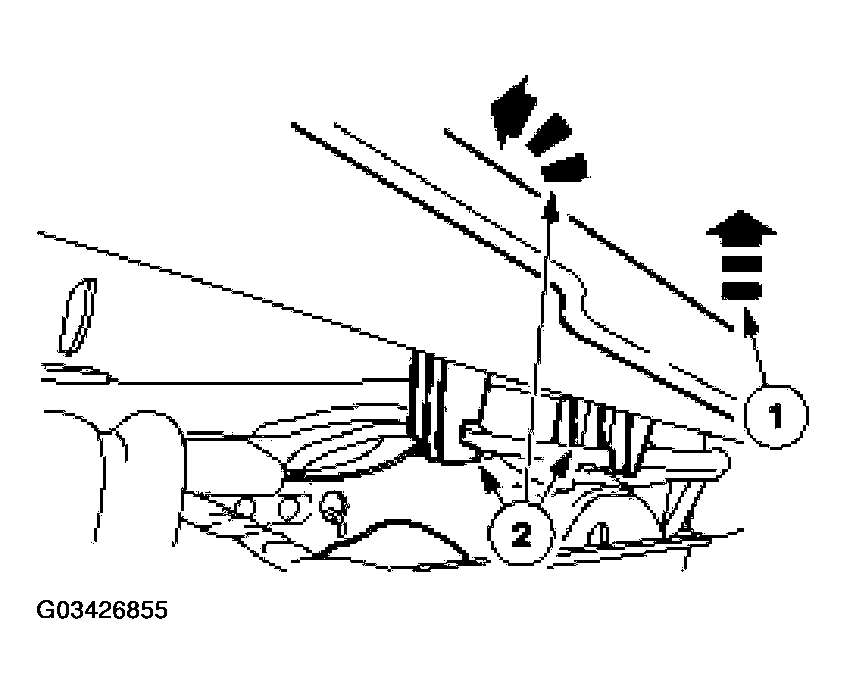

       Fig 13: Installing Outboard Side Shield Retainers

       Courtesy of FORD MOTOR CO.
17. Lift, push in, and then down to engage the side shield retainer.
    Fig 14: Installing Side Shield Retainer

    Courtesy of FORD MOTOR CO.
18. Install the outboard side shield screw.

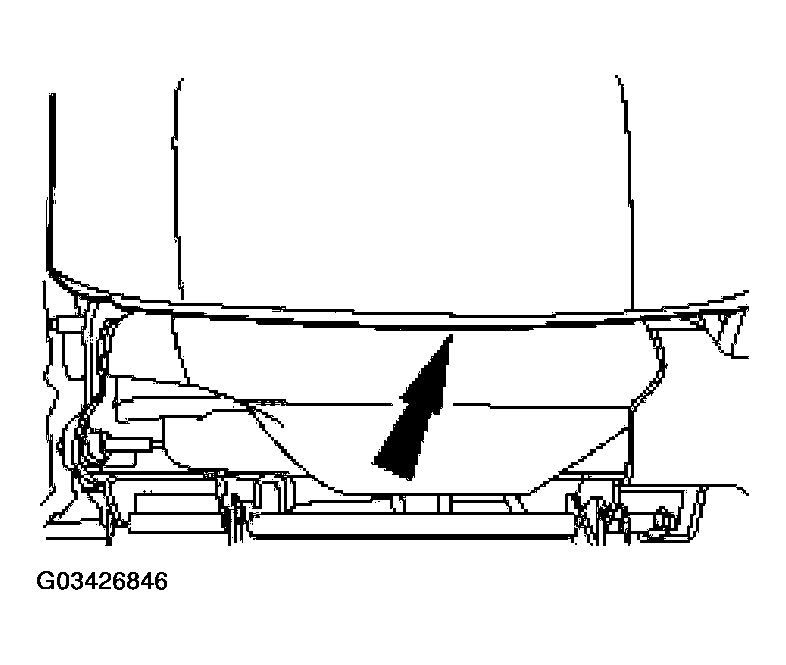

    Fig 15: Installing Outboard Side Shield Screw

    Courtesy of FORD MOTOR CO.
19. Install the affected seat. Refer to DRIVER SEAT  or PASSENGER SEAT  in the this section.
20. Repower the SRS. Refer to ACTIVATING SYSTEM .
21. Check the active restraint system for correct operation.
