Lumbar Control Switch: Installation

All vehicles

  1. Install the lumbar control switch to the inboard side shield.

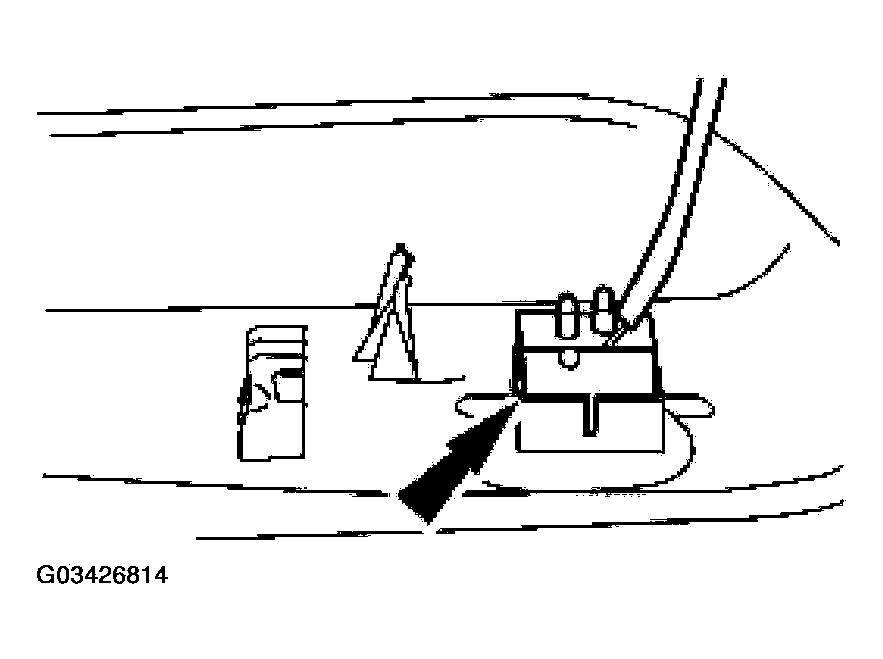

    Fig 1: Installing Lumbar Control Switch To Inboard Side Shield
    G03426814Courtesy of FORD MOTOR CO.
  2. Position the side shield to the seat. Route the lumbar control switch wire harness through the seat opening as noted in removal. Connect the hoses to the lumbar control switch.

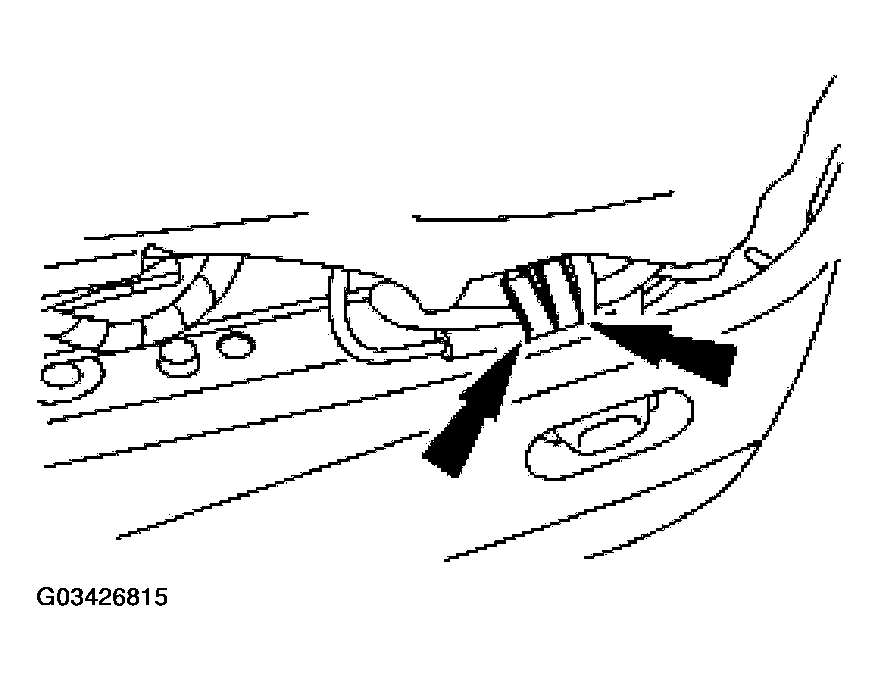

    Fig 2: Installing Lumbar Control Switch
    G03426815Courtesy of FORD MOTOR CO.
  3. Position the inboard side shield.
    1. Position the lumbar control switch to the seat opening.
    2. Install the inboard side shield front retainer.

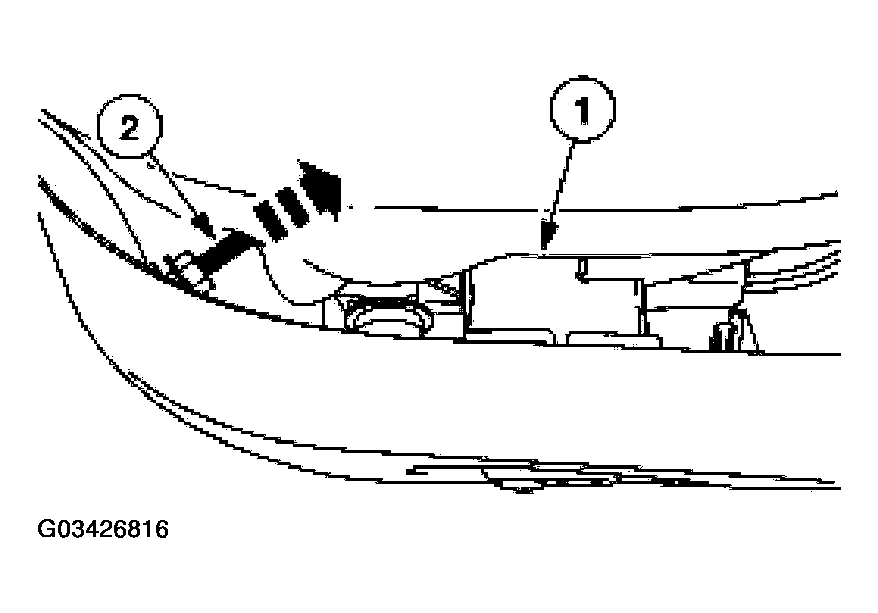

      Fig 3: Installing Inboard Side Shield
      G03426816Courtesy of FORD MOTOR CO.
  4. Engage the inboard side shield retainers.
    1. Lift the inboard side shield.
    2. While holding the side shield up, rotate the side shield to engage the retainers.

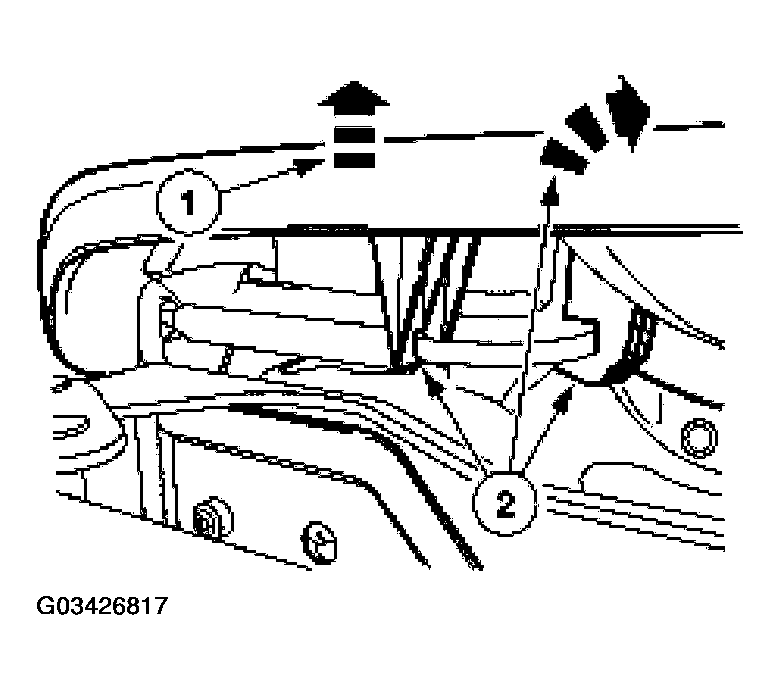

      Fig 4: Installing Inboard Side Shield Retainers
      G03426817Courtesy of FORD MOTOR CO.
  5. Install the recliner handle cover.
    1. Lift up on the inboard side shield.
    2. Push in and then down to engage the side shield retainer.
    3. Install the recliner handle cover.

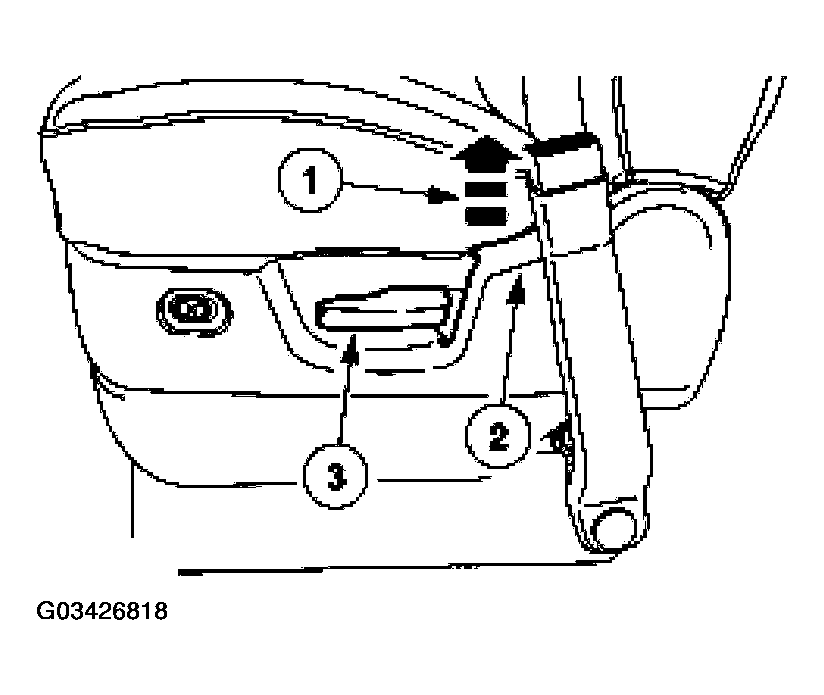

      Fig 5: Installing Recliner Handle Cover
      G03426818Courtesy of FORD MOTOR CO.

      Vehicles with heated seats

  6. Insert the electrical connector through the heated seat switch housing and connect the heated seat switch electrical connector.
  7. Insert the heated seat switch into the housing until seated in the housing.
  8. Install the heated seat switch housing on the seat and install the two pin-type retainers.

    All vehicles

  9. Install the inboard side shield screw.

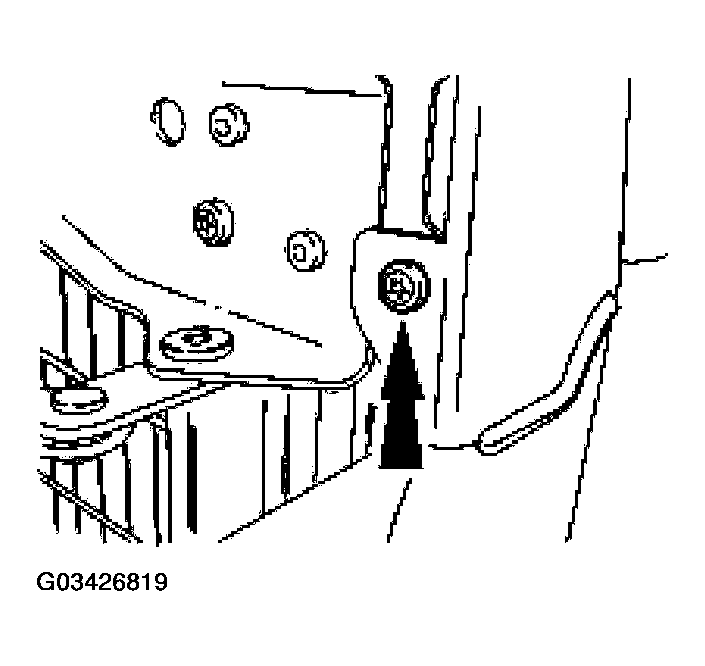

    Fig 6: Installing Inboard Side Shield Screw
    G03426819Courtesy of FORD MOTOR CO.
  10. Connect the lumbar control switch.

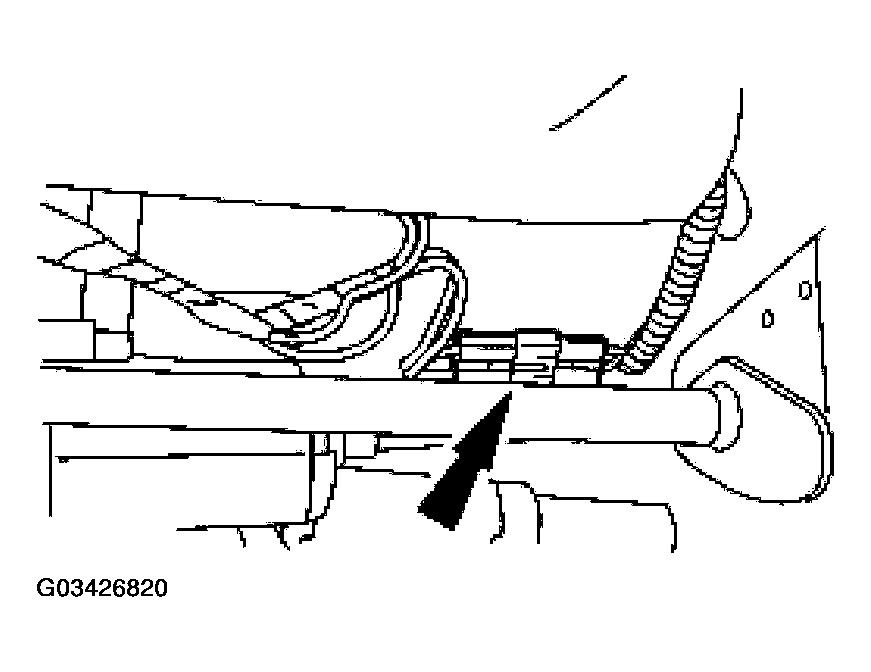

    Fig 7: Connecting Lumbar Control Switch
    G03426820Courtesy of FORD MOTOR CO.
  11. Repower the SRS. Refer to ACTIVATING SYSTEM .
