Lumbar Motor: Installation

  1. Install the lumbar motor.
    1. Connect the hose.
    2. Position the lumbar motor. Install the pin-type retainers.

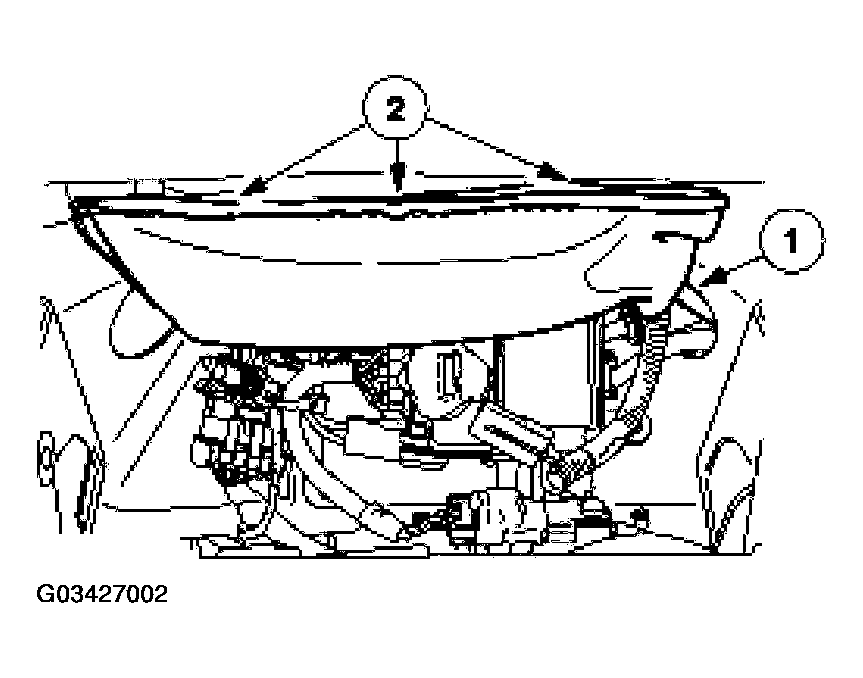

      Fig 1: Installing Pin-Type Retainers
      G03427002Courtesy of FORD MOTOR CO.
  2. Connect the electrical connector.

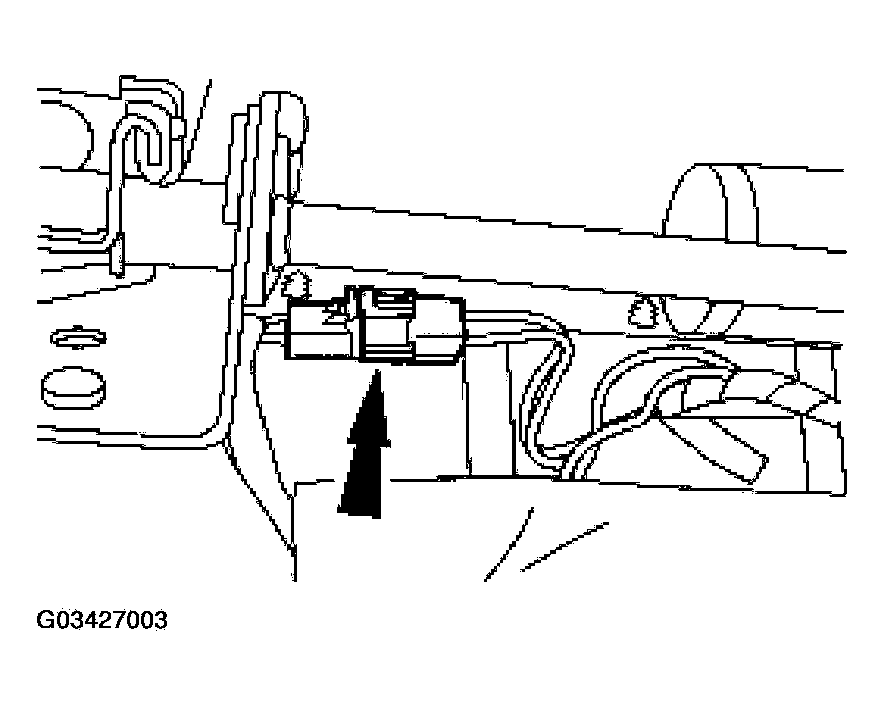

    Fig 2: Connecting Electrical Connector
    G03427003Courtesy of FORD MOTOR CO.
  3. Install the affected seat. Refer to DRIVER SEAT  or PASSENGER SEAT  in the Removal and Installation portion of this section.
  4. Repower the SRS. Refer to ACTIVATING SYSTEM .
  5. Check the active restraint system for correct operation.
