Seat Control Switch: Installation

  1. Position the seat control switch. Install the screws.

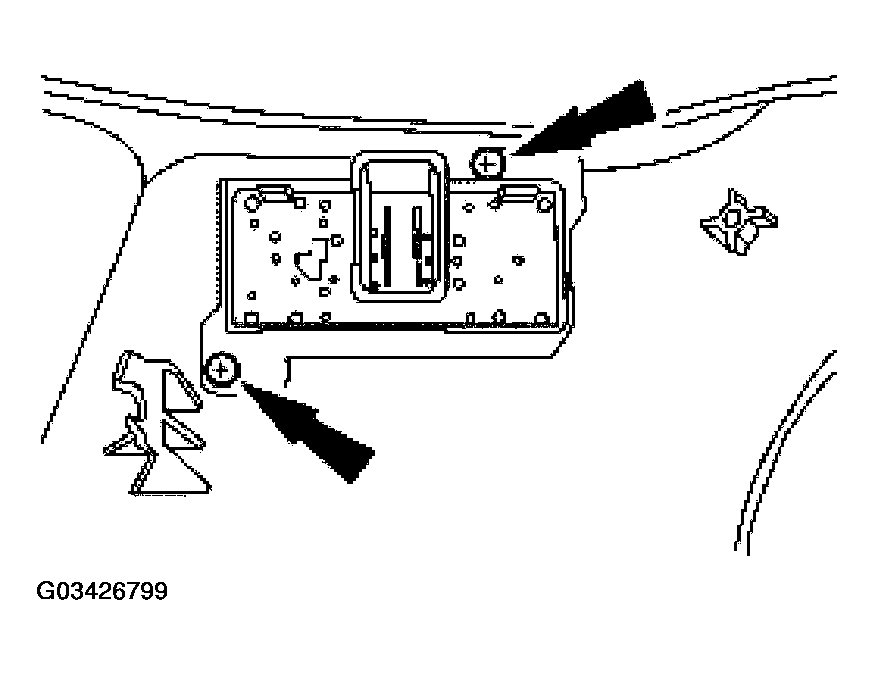

    Fig 1: Installing Seat Control Switch And Screws
    G03426799Courtesy of FORD MOTOR CO.
  2. Install the seat control switch knob.

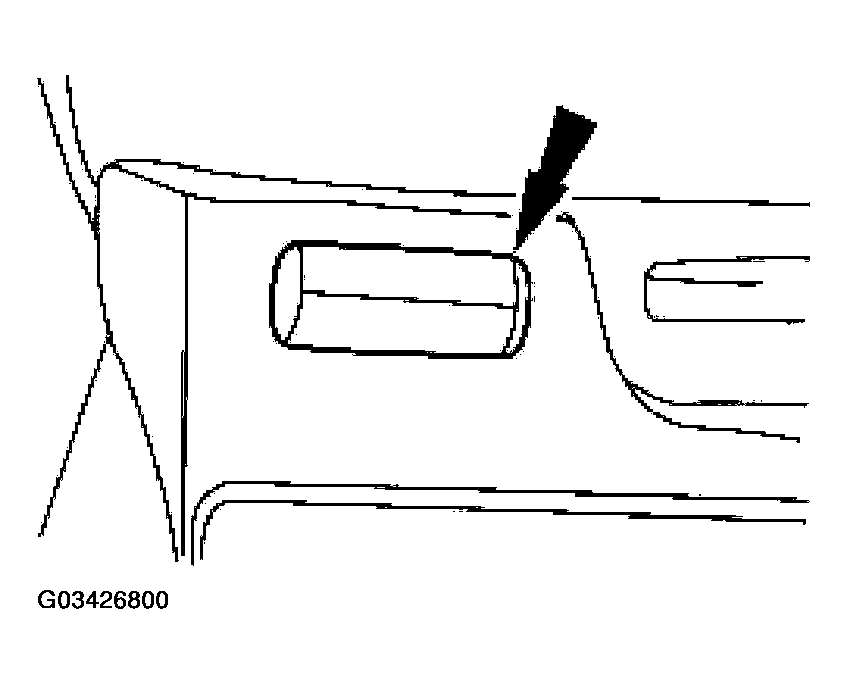

    Fig 2: Installing Seat Control Switch Knob
    G03426800Courtesy of FORD MOTOR CO.
  3. Position the outboard side shield.
    1. Connect the power seat switch electrical connector.
    2. Install the outboard side shield front retainer (not shown).

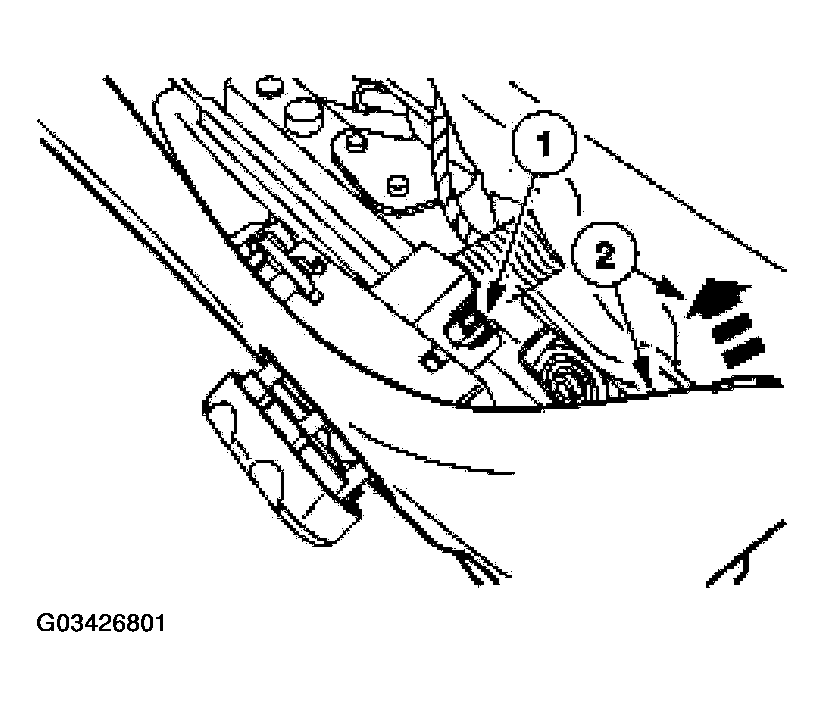

      Fig 3: Installing Outboard Side Shield
      G03426801Courtesy of FORD MOTOR CO.
  4. Engage the outboard side shield retainers.
    1. Lift the outboard side shield.
    2. While holding the side shield up, rotate the side shield, engaging the retainers.

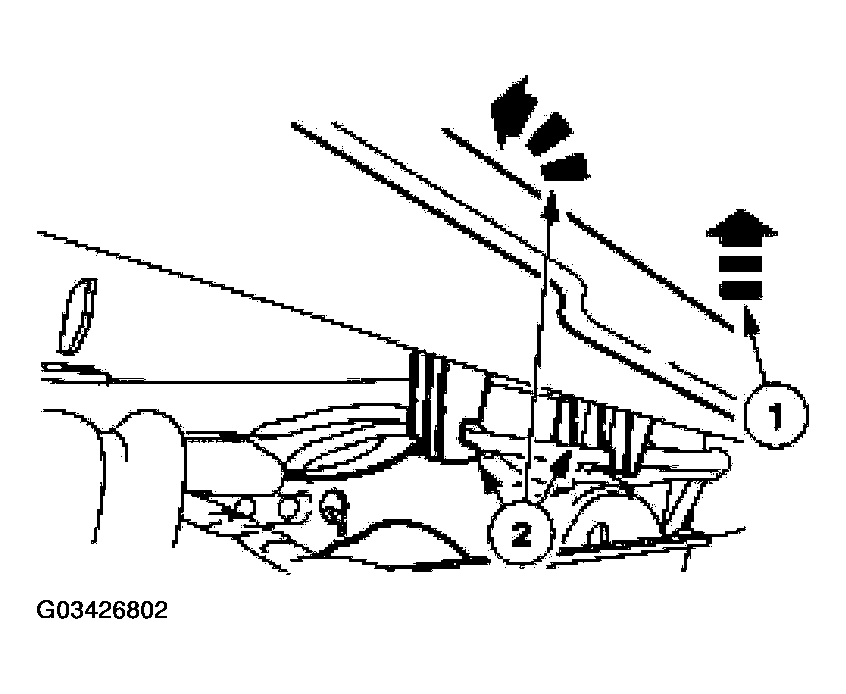

      Fig 4: Installing Outboard Side Shield Retainers
      G03426802Courtesy of FORD MOTOR CO.
  5. Lift, push in and then down, engaging the side shield retainer.

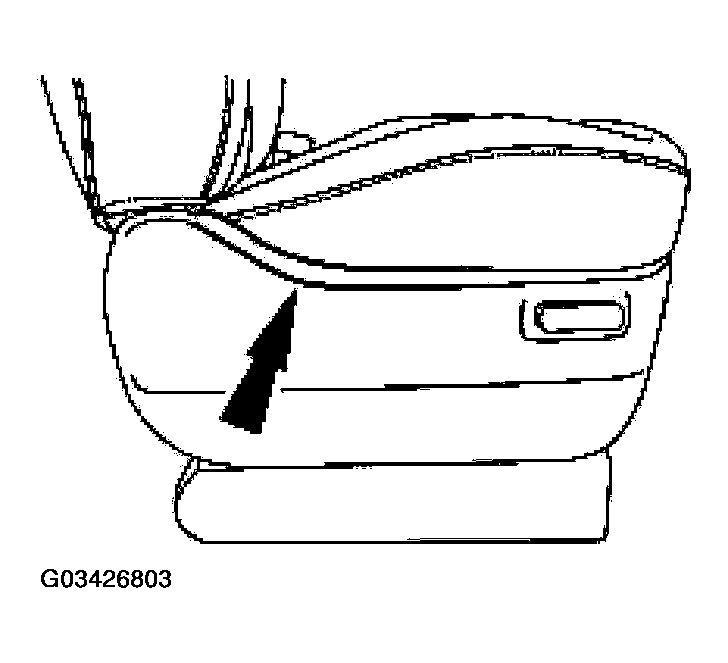

    Fig 5: Installing Side Shield Retainer
    G03426803Courtesy of FORD MOTOR CO.
  6. Install the outboard side shield screw.

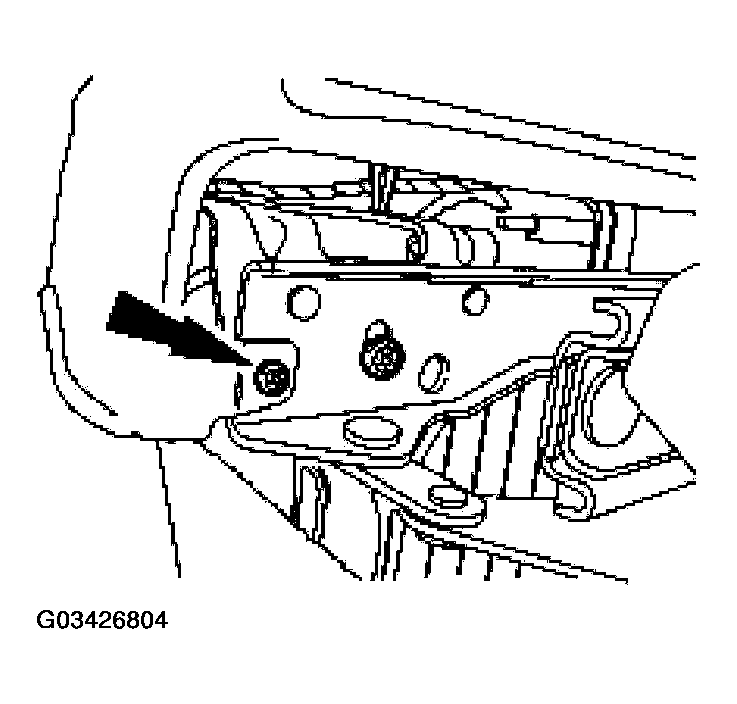

    Fig 6: Installing Outboard Side Shield Screw
    G03426804Courtesy of FORD MOTOR CO.
  7. Repower the SRS. Refer to ACTIVATING SYSTEM .
