Seat Control Switch: Removal

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS. Refer to DISABLING SYSTEM .
  2. Remove the outboard side shield screw.

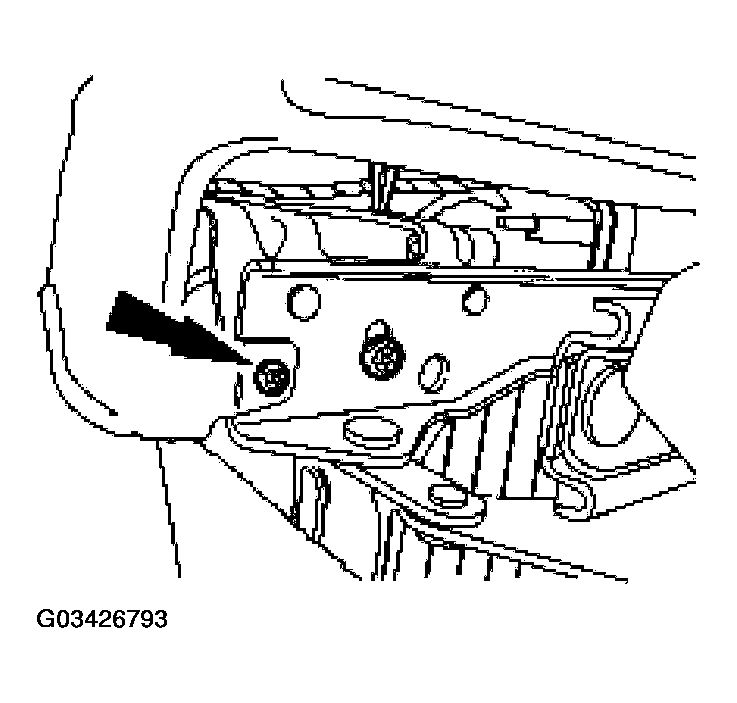

    Fig 1: Removing Outboard Side Shield Screw
    G03426793Courtesy of FORD MOTOR CO.
  3. Push in where indicated, lift, and pull out, releasing the retaining clip.

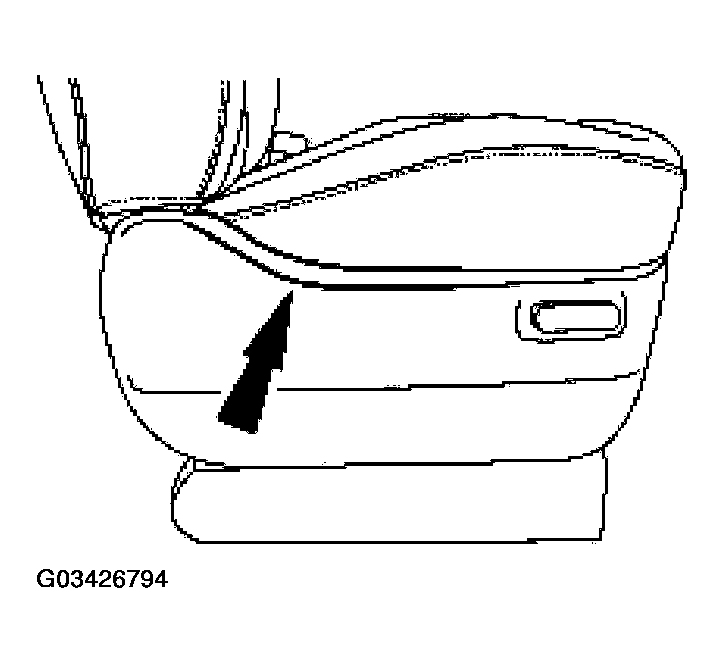

    Fig 2: Releasing Retaining Clip
    G03426794Courtesy of FORD MOTOR CO.
  4. Release the outboard side shield retainers.
    1. Lift and release the retainer.
    2. While holding the side shield up, rotate the side shield, disengaging the retainers.

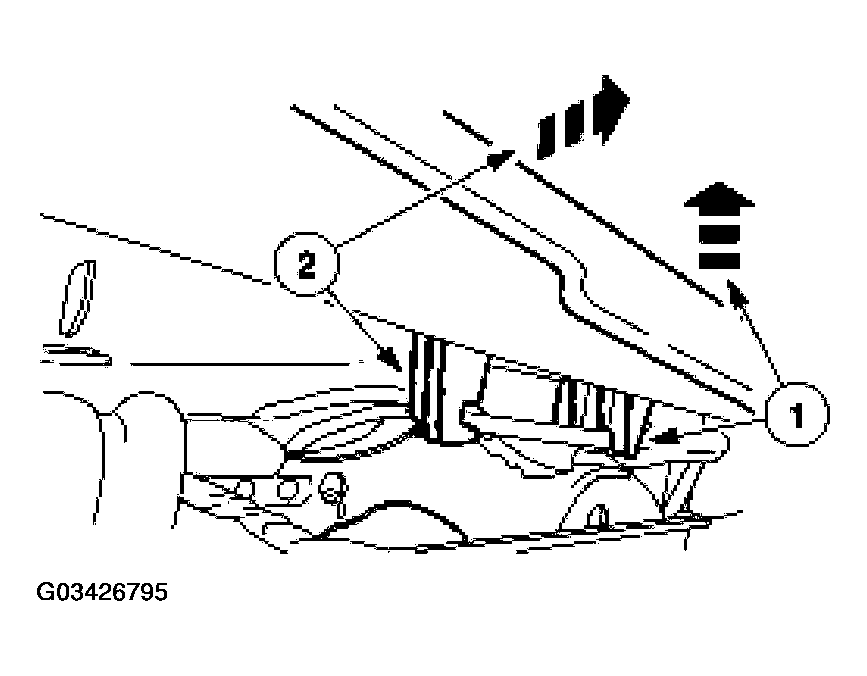

      Fig 3: Removing Outboard Side Shield Retainers
      G03426795Courtesy of FORD MOTOR CO.
  5. Remove the outboard side shield.
    1. Using a suitable pin-type retainer removal tool, remove the side shield front retainer (not shown).
    2. Disconnect the power seat switch electrical connector.
    3. Remove the outboard side shield.

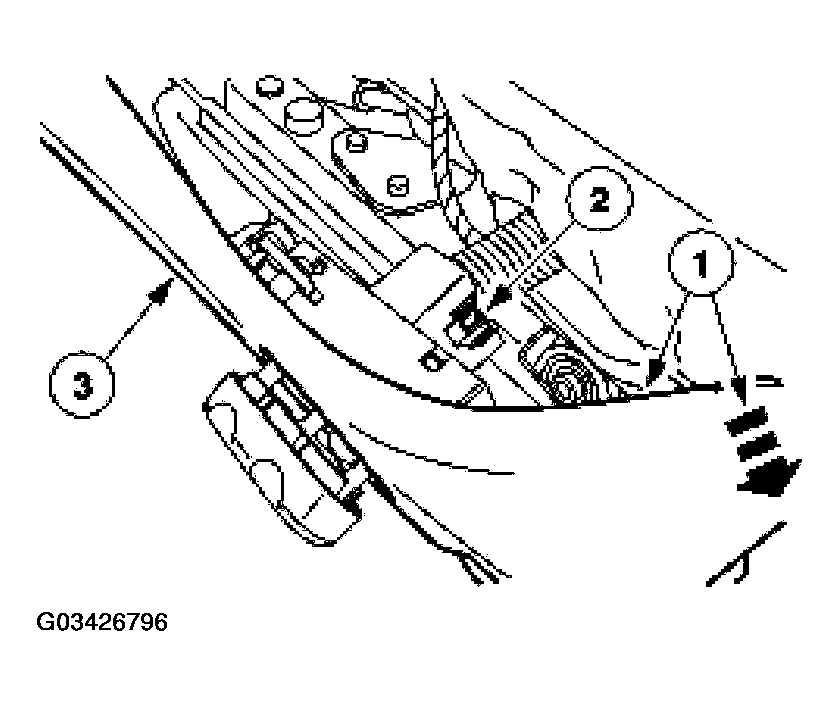

      Fig 4: Disconnect Power Seat Switch Electrical Connector
      G03426796Courtesy of FORD MOTOR CO.
  6. Remove the seat control switch knob.

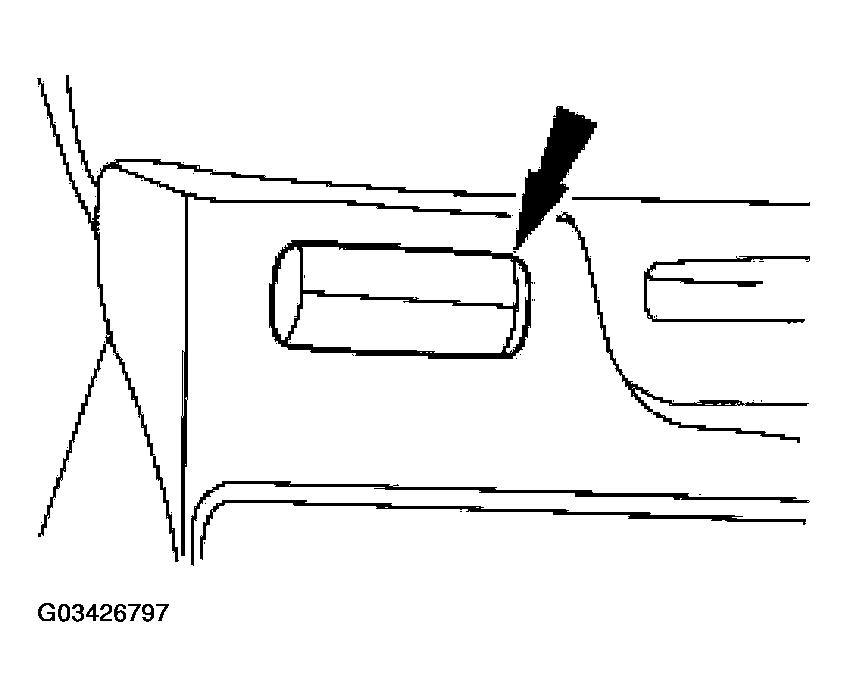

    Fig 5: Removing Seat Control Switch Knob
    G03426797Courtesy of FORD MOTOR CO.
  7. Remove the screws and the seat control switch.

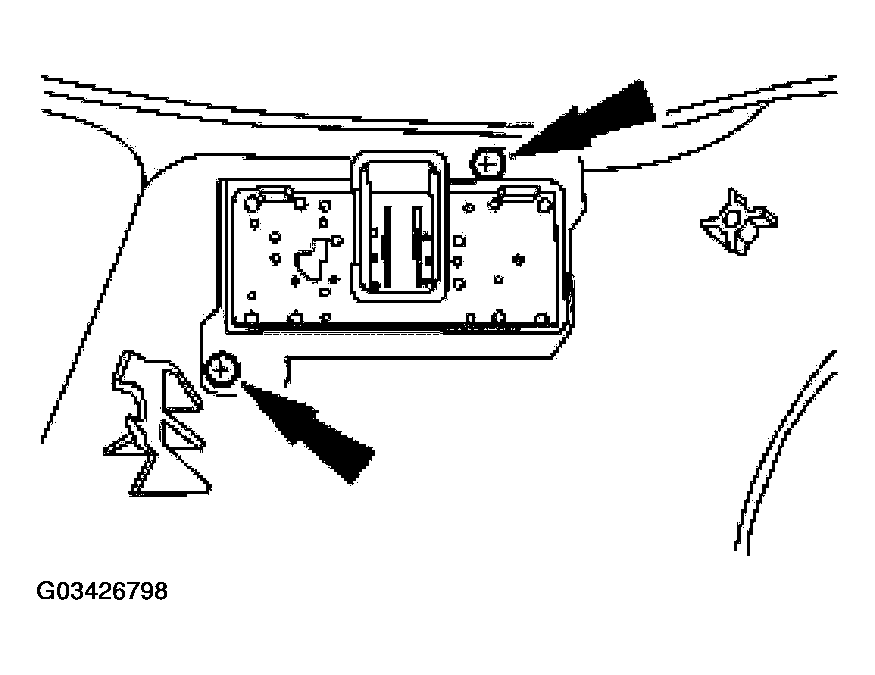

    Fig 6: Removing Screws And Seat Control Switch
    G03426798Courtesy of FORD MOTOR CO.
