Anti-Lock Brake System (ABS) Module: Removal

CAUTION: Prior to removal of module, it is necessary to upload module configuration information to the diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery.
Raise and support the vehicle.
Remove the hydraulic control unit (HCU) dust shield.
1. Remove the screw.
2. Remove the bolts.

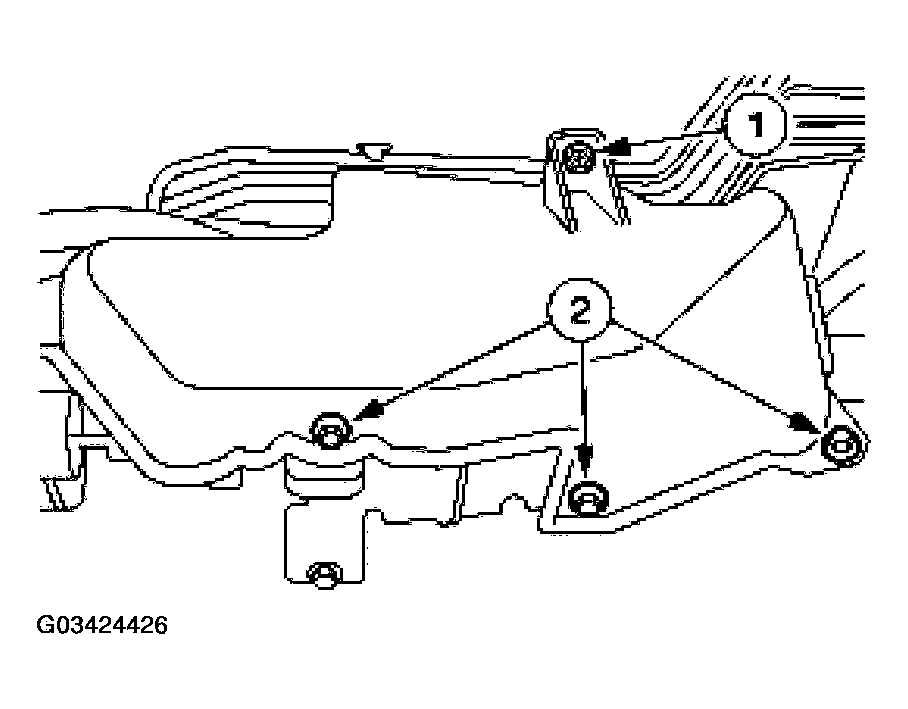

  Fig 1: Removing Hydraulic Control Unit (HCU) Dust Shield
  Courtesy of FORD MOTOR CO.
Disconnect the ABS module electrical connector.
- Slide the connector lock rearward.

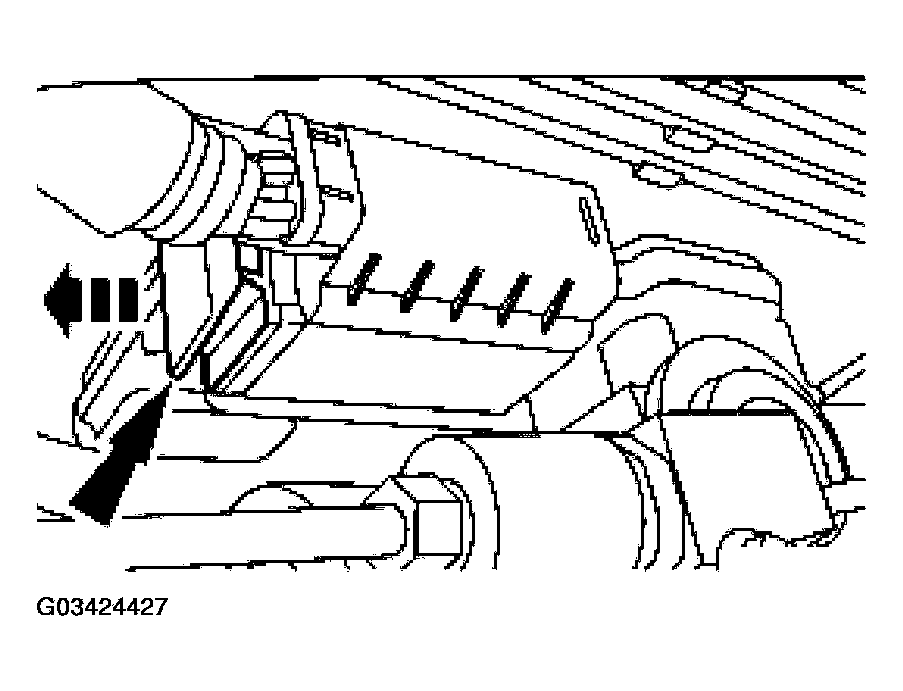

  Fig 2: Disconnecting ABS Module Electrical Connector
  Courtesy of FORD MOTOR CO.
Remove the three HCU bracket to frame bolts.

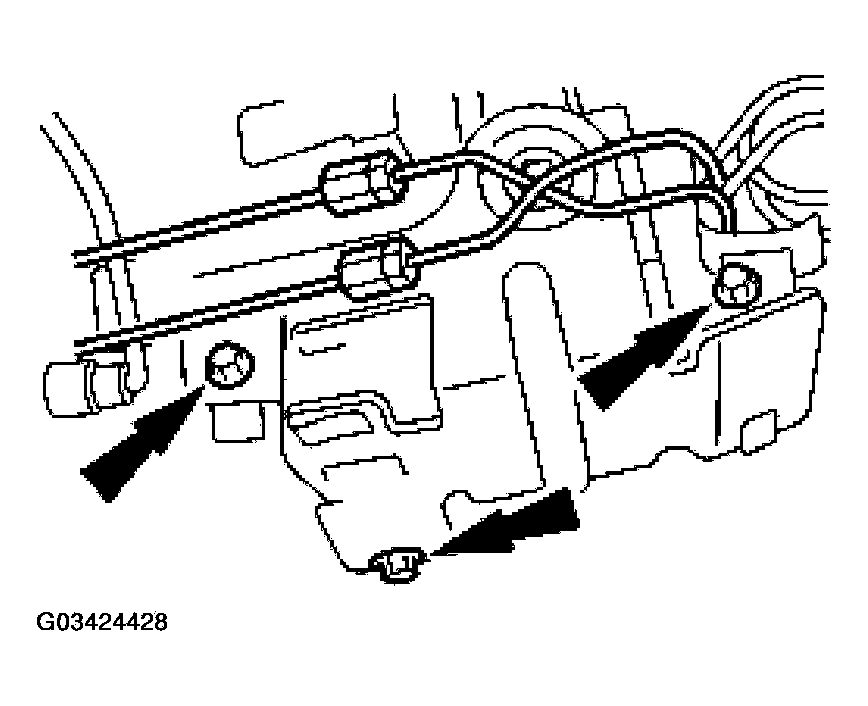

Fig 3: Removing HCU Bracket To Frame Bolts
Courtesy of FORD MOTOR CO.
Lift the bracket hooks from the frame and lower the HCU to access the ABS module.

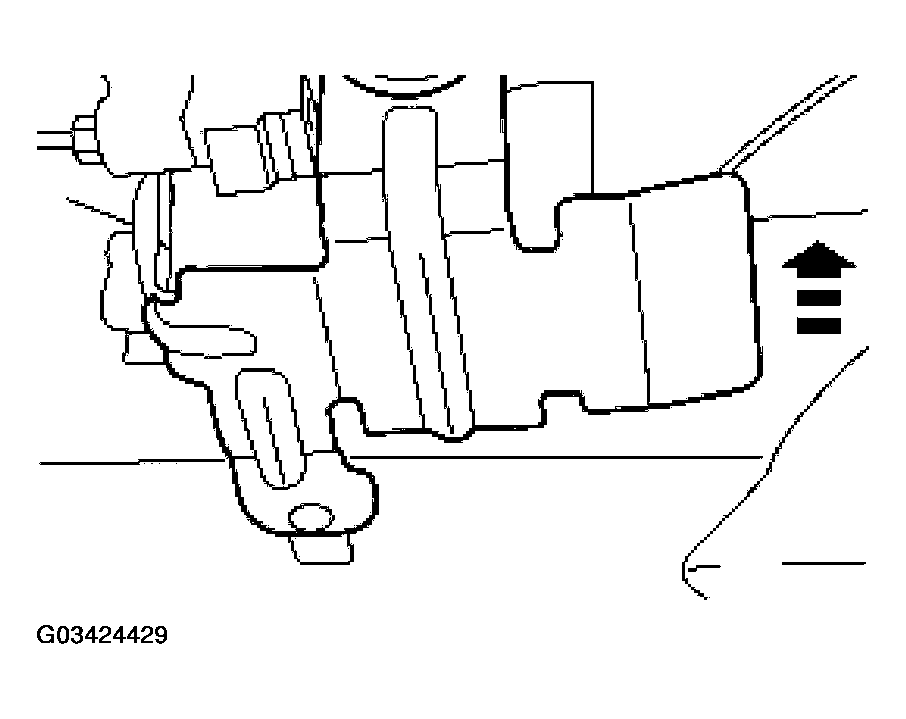

Fig 4: Lifting Bracket Hooks From Frame And Lower HCU To Access ABS Module
Courtesy of FORD MOTOR CO.

CAUTION: Be sure to lift straight up to avoid damage to the HCU components.

Remove the ABS module.
- Remove the bolts.

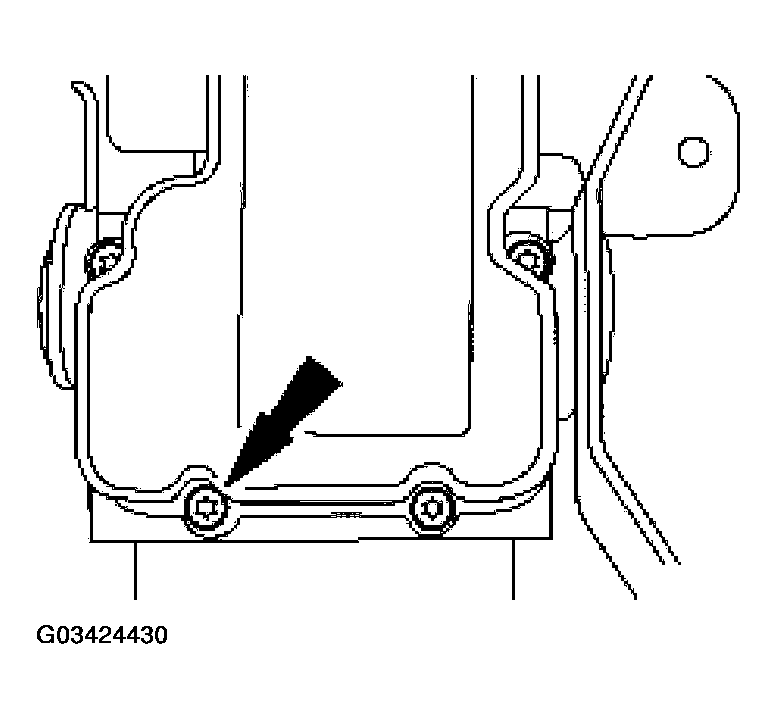

  Fig 5: Removing ABS Module
  Courtesy of FORD MOTOR CO.
