Removal and Installation

NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces and apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford specification ESA-M1C198-A.

Raise and support the vehicle.
Disconnect the anti-lock brake sensor electrical connector.

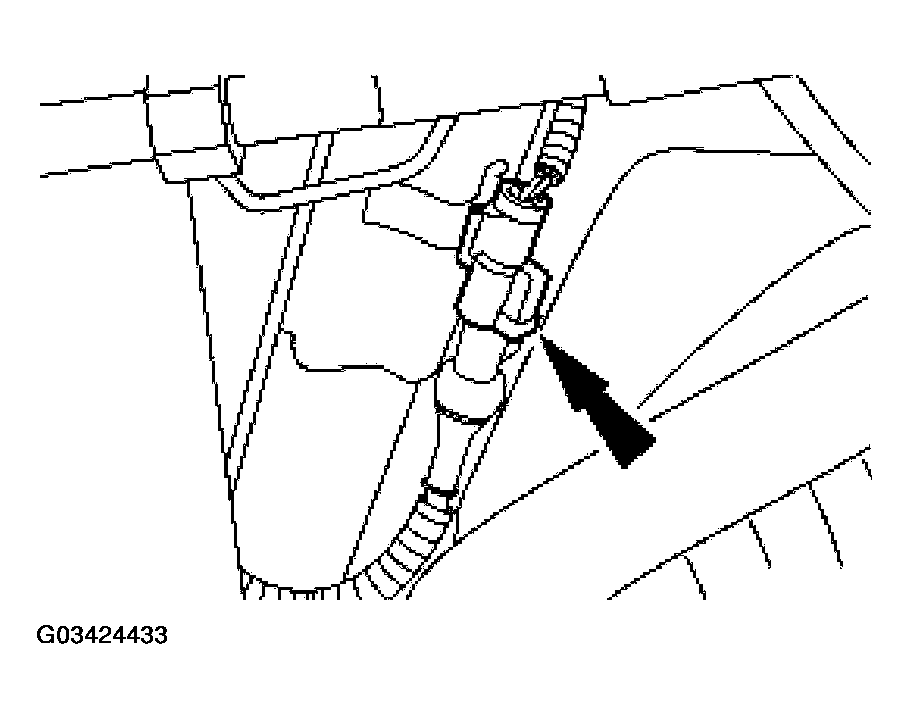

Fig 1: Disconnecting Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor cable clip bolt from the front wheel knuckle.

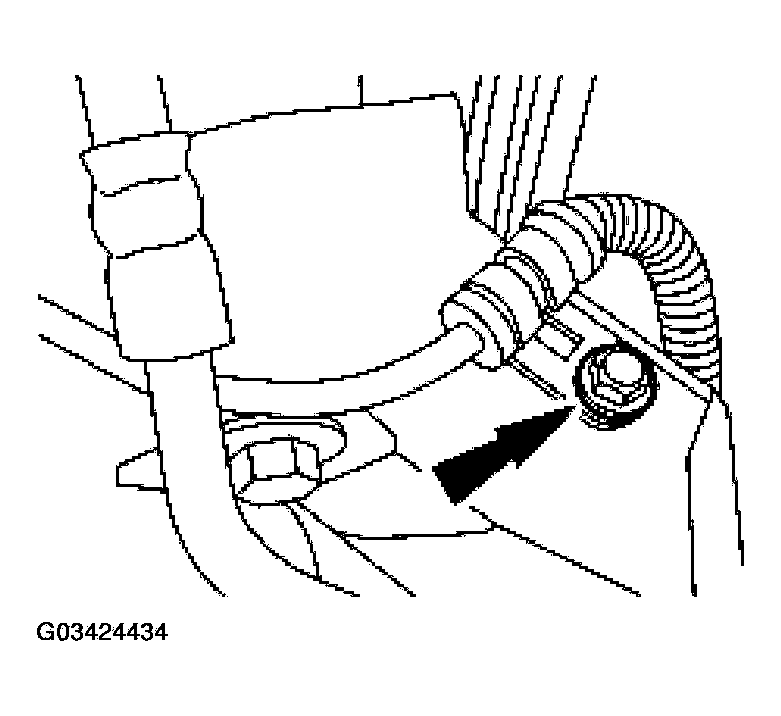

Fig 2: Removing Anti-Lock Brake Sensor Cable Clip Bolt From Front Wheel Knuckle
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor.
1. Remove the bolt.
2. Remove the anti-lock brake sensor.

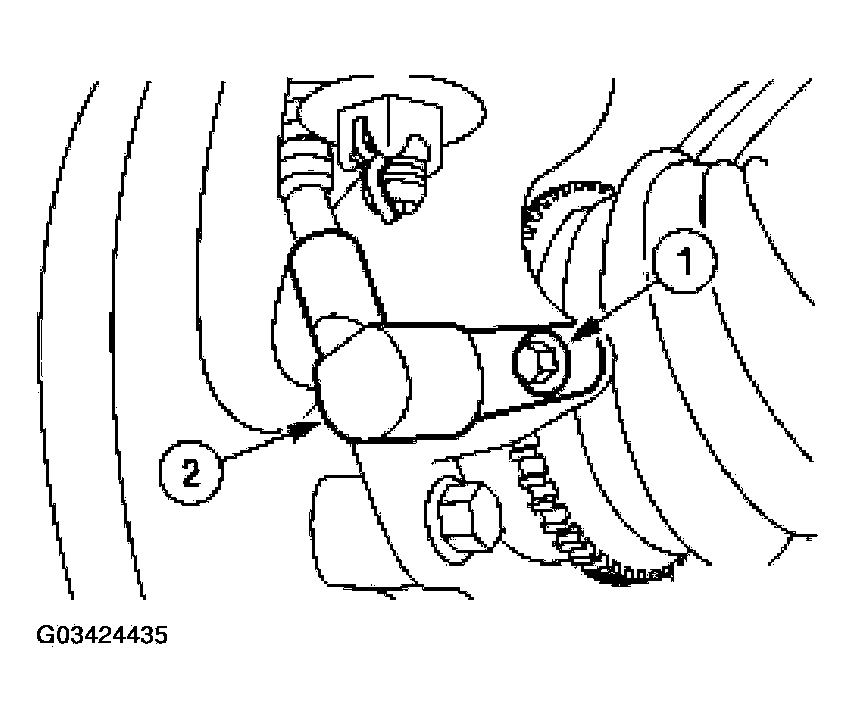

  Fig 3: Removing Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

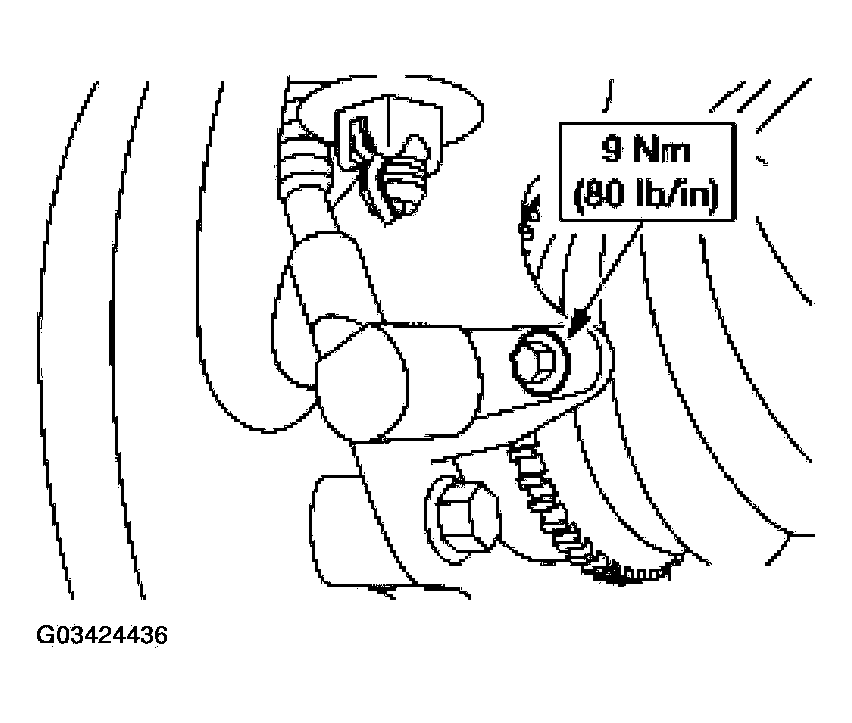

Fig 4: Installing Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.

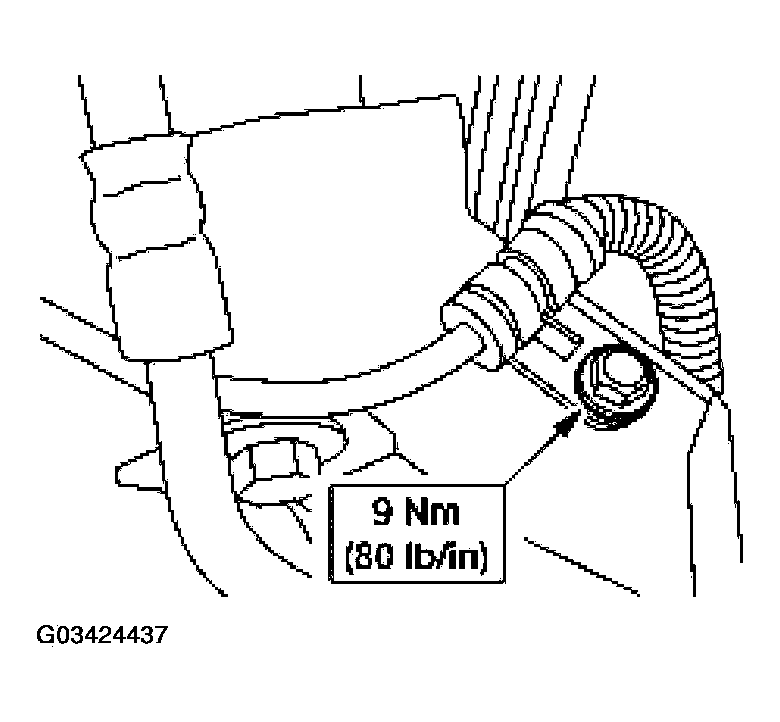

Fig 5: Installing Anti-Lock Brake Sensor Cable Clip Bolt To Front Wheel Knuckle
Courtesy of FORD MOTOR CO.
