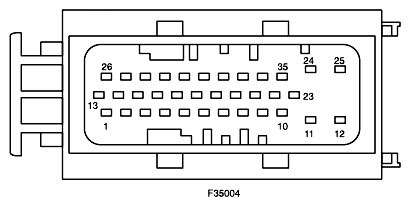

| 1 |
915 (PK/LB) |
SCP Bus |
| 2 |
914 (TN/OG) |
SCP Bus + |
| 3 |
1574 (DB) |
ABS control module (2C219), to, Yaw velocity sensor, Reference voltage |
| 4 |
1576 (TN/BK) |
ABS control module (2C219), to, Yaw velocity sensor, yaw rate |
| 5 |
535 (LB/RD) |
to, Brake differential pressure switch |
| 6 |
1577 (RD/LB) |
ABS control module (2C219), to, Yaw velocity sensor, lateral acceleration |
| 7 |
514 (YE/RD) |
Wheel speed sensor, right front (2C204) + |
| 8 |
516 (YE/BK) |
Wheel speed sensor, right front (2C204) |
| 9 |
523 (RD/PK) |
Wheel speed sensor, right rear + |
| 10 |
524 (PK/BK) |
Wheel speed sensor, right rear |
| 11 |
1205 (BK) |
Ground |
| 12 |
534 (YE/LG) |
Voltage supplied at all times (overload protected) |
| 13 |
1583 (BN/WH) |
ABS control module (2C219), to, Brake booster sensor, Solenoid |
| 14 |
1582 (LG/RD) |
ABS control module (2C219), to, Brake booster sensor, Solenoid, + |
| 15 |
1580 (WH/LG) |
ABS control module (2C219), to, Brake booster sensor, switch |
| 16 |
1573 (YE) |
ABS control module (2C219), to, Steering position sensor (18B015), input, 2 |
| 17 |
1579 (OG/RD) |
ABS control module (2C219), to, Yaw velocity sensor, ring frequency |
| 18 |
1572 (DG) |
ABS control module (2C219), to, Steering position sensor (18B015), input, 1 |
| 19 |
521 (TN/OG) |
Wheel speed sensor, left front (2C205) + |
| 20 |
522 (TB/BK) |
Wheel speed sensor, left front (2C205) |
| 21 |
518 (LG/RD) |
Wheel speed sensor, left rear + |
| 22 |
519 (LG/BK) |
Wheel speed sensor, left rear |
| 23 |
1040 (RD/BK) |
Voltage supplied in Run (overload protected) |
| 24 |
1205 (BK) |
Ground |
| 25 |
601 (LB/PK) |
Voltage supplied in Start and Run (overload protected) |
| 26 |
- |
not used |
| 27 |
|
not used |
| 28 |
|
not used |
| 29 |
|
not used |
| 30 |
1578 (GY/BK) |
ABS control module (2C219), to, Yaw velocity sensor, self test |
| 31 |
1581 (PK/LB) |
ABS control module (2C219), to, Brake booster sensor, switch |
| 32 |
1590 (LB) |
ABS control module (2C219), to, Brake booster sensor, Ground |
| 33 |
|
not used |
| 34 |
1575 (BK/WH) |
ABS control module (2C219), to, Yaw velocity sensor, Sensor, Ground |
| 35 |
1571 (BK) |
ABS control module (2C219), to, Steering position sensor (18B015), return |
