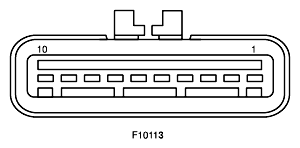

Non... Speed Control Jumper Connector End View (C176)
| Pin | Circuit | Circuit function |
|---|---|---|
| 1 | 914 (TN/OG) | SCP Bus + |
| 2 | 915 (PK/LB) | SCP Bus... |
| 3 | ... | not used |
| 4 | ... | not used |
| 5 | 151 (LB/BK) | Speed control switch, input |
| 6 | 848 (DG/OG) | Speed control switch, Ground |
| 7 | 1040 (RD/BK) | Voltage in Run (overload protected) |
| 8 | ... | not used |
| 9 | 535 (LB/RD) | to, Brake differential pressure switch |
| 10 | 1205 (BK) | Ground |
