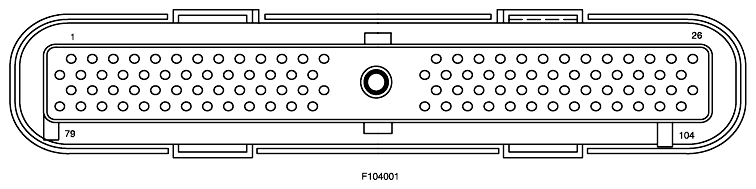

| 1 |
315 (VT/OG) |
Shift solenoid B |
| 2 |
|
not used |
| 3 |
1012 (OG/BK) |
Digital Transmission Range (DTR) sensor, TR1 |
| 4 |
|
not used |
| 5 |
|
not used |
| 6 |
970 (DG/WH) |
Turbine Shaft Speed (TSS) sensor |
| 7 |
|
not used |
| 8 |
659 (OG/WH) |
Inlet Manifold Runner Control (IMRC) module, monitor |
| 9 |
|
not used |
| 10 |
|
not used |
| 11 |
|
not used |
| 12 |
|
not used |
| 13 |
107 (VT) |
Module programming signal |
| 14 |
|
not used |
| 15 |
915 (PK/LB) |
SCP Bus |
| 16 |
914 (TN/OG) |
SCP Bus + |
| 17 |
1216 (GY/OG) |
RX, signal |
| 18 |
1215 (WH/LG) |
TX, signal |
| 19 |
|
not used |
| 20 |
585 (VT) |
generator, monitor |
| 21 |
138 (BK/PK) |
Powertrain Control Module (PCM) (12A650) Crankshaft position sensor (6C315) + |
| 22 |
139 (GY/YE) |
Powertrain Control Module (PCM) (12A650) Crankshaft position sensor (6C315) |
| 23 |
|
not used |
| 24 |
570 (BK/WH) |
Ground |
| 25 |
|
not used |
| 26 |
526 (DB/LG) |
PCM, to, Ignition coil (12029) |
| 27 |
237 (OG/YE) |
Shift solenoid A |
| 28 |
228 (DB) |
Low speed fan control relay, control |
| 29 |
|
not used |
| 30 |
343 (DB/LG) |
Anti theft, indicator, input |
| 31 |
330 (YE/LG) |
Power steering pressure switch, input |
| 32 |
|
not used |
| 33 |
|
not used |
| 34 |
|
not used |
| 35 |
392 (RD/LG) |
Heated Oxygen Sensor (HO2S) #12 (9G444), input |
| 36 |
968 (TN/LB) |
Mass Air Flow (MAF) sensor (12B579), signal, return |
| 37 |
923 (OG/BK) |
Transmission Fluid Temperature (TFT) sensor, input |
| 38 |
354 (LG/RD) |
Engine Coolant Temperature (ECT) sensor (12A648), input |
| 39 |
743 (GY) |
Intake Air Temperature (IAT) sensor (12A697), input |
| 40 |
238 (DG/YE) |
Interior Fuel Shutoff (IFS) switch (9D362), monitor |
| 41 |
347 (BK/YE) |
A/C clutch cycling pressure switch (19D594), input |
| 42 |
367 (BN) |
Intake Manifold Runner Control (IMRC) module |
| 43 |
|
not used |
| 44 |
1419 (LG/YE) |
Starter relay (11450), control |
| 45 |
586 (RD/PK) |
generator, monitor |
| 46 |
639 (LG/VT) |
High speed cooling fan relay, control |
| 47 |
360 (BN/PK) |
EGR Vacuum Regulator (EVR), control |
| 48 |
- |
not used |
| 49 |
1145 (LB/BK) |
Digital Transmission Range (DTR) sensor, TR2 |
| 50 |
1143 (WH/BK) |
Digital Transmission Range (DTR) sensor, TR4 |
| 51 |
570 (BK/WH) |
Ground |
| 52 |
527 (RD/LB) |
PCM, to, Ignition coil (12029) |
| 53 |
971 (PK/BK) |
Shift solenoid C |
| 54 |
473 (RD/LB) |
Torque Converter Clutch (TCC) solenoid |
| 55 |
1119 (RD) |
Power Distribution, Main, feed |
| 56 |
191 (LG/BK) |
Powertrain Control Module (PCM) (12A650), EVAP canister purge valve |
| 57 |
- |
not used |
| 58 |
- |
not used |
| 59 |
- |
not used |
| 60 |
74 (GY/LB) |
Heated Oxygen Sensor (HO2S) #11 (9F472), input |
| 61 |
393 (VT/LG) |
Heated Oxygen Sensor (HO2S) #22 (9G444), input |
| 62 |
791 (RD/PK) |
Fuel tank pressure transducer sensor (9C968) |
| 63 |
- |
not used |
| 64 |
199 (LB/YE) |
Digital Transmission Range (DTR) sensor, to, TR3A |
| 65 |
352 (BN/LG) |
Differentia Pressure Feedback EGR (DPFE) sensor, input |
| 66 |
- |
not used |
| 67 |
91 (VT/WH) |
Canister vent |
| 68 |
- |
not used |
| 69 |
331 (PK/YE) |
A/C clutch relay, control |
| 70 |
- |
not used |
| 71 |
361 (RD) |
Voltage supplied in Start and Run (overload protected) |
| 72 |
- |
not used |
| 73 |
559 (TN/BK) |
Fuel injector 5, control |
| 74 |
557 (BN/YE) |
Fuel injector 3, control |
| 75 |
555 (TN) |
Fuel injector 1, control |
| 76 |
570 (BK/WH) |
Ground |
| 77 |
- |
not used |
| 78 |
528 (PK/WH) |
PCM, to, Ignition coil (12029) |
| 79 |
- |
not used |
| 80 |
926 (LB/OG) |
Fuel pump relay, control |
| 81 |
925 (WH/YE) |
Electronic Pressure Control (EPC) solenoid |
| 82 |
- |
not used |
| 83 |
264 (WH/LB) |
Idle Air Control (IAC) valve (9F715), control |
| 84 |
136 (DB/YE) |
Output Shaft Speed (OSS) sensor (7M101) |
| 85 |
282 (DB/OG) |
Camshaft position sensor (6B288), input |
| 86 |
439 (TN/LG) |
A/C pressure switch, signal |
| 87 |
94 (RD/BK) |
Heated oxygen Sensor (HO2S) #21 (9F472), input |
| 88 |
967 (LB/RD) |
Mass Air Flow (MAF) sensor (12B579), output |
| 89 |
355 (GY/WH) |
Throttle Position Sensor (TPS) (9B989), input |
| 90 |
351 (BN/WH) |
Reference, voltage |
| 91 |
359 (GY/RD) |
signal, return |
| 92 |
- |
not used |
| 93 |
387 (RD/WH) |
Heated Oxygen Sensor (HO2S) #11 (9F472), heater |
| 94 |
388 (YE/LB) |
Heated Oxygen Sensor (HO2S) #21 (9F472), heater |
| 95 |
389 (WH/BK) |
Heated Oxygen Sensor (HO2S) #12 (9G444), heater |
| 96 |
390 (TN/YE) |
Heated Oxygen Sensor (HO2S) #22 (9G444), heater |
| 97 |
- |
not used |
| 98 |
- |
not used |
| 99 |
560 (LG/OG) |
Fuel injector 6, control |
| 100 |
558 (BN/LB) |
Fuel injector 4, control |
| 101 |
556 (WH) |
Fuel injector 2, control |
| 102 |
- |
not used |
| 103 |
570 (BK/WH) |
Ground |
| 104 |
- |
not used |
