Piston - Diameter

  1. Measure the piston diameter 90 degrees from the piston pin and 42 mm down from the top of the piston at the point indicated.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure .

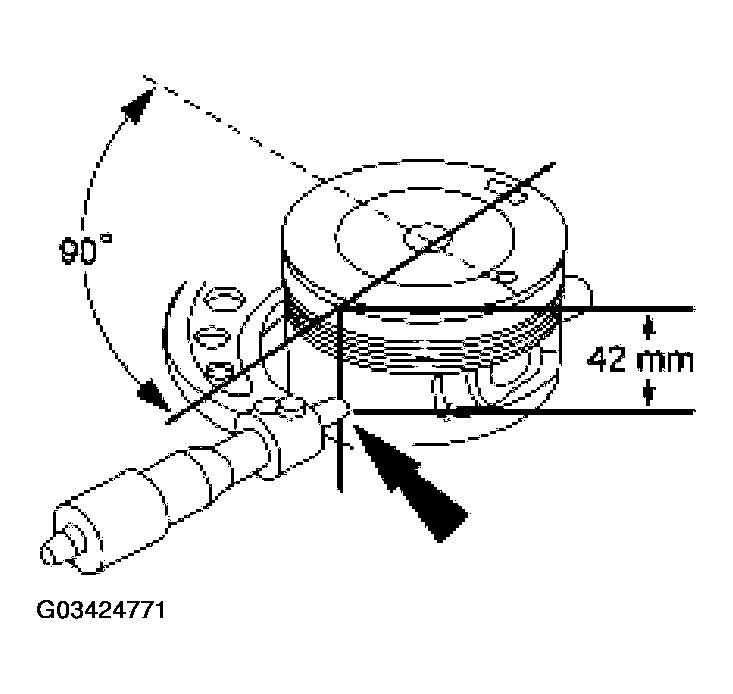

      Fig 1: Measuring Piston Diameter
      G03424771Courtesy of FORD MOTOR CO.
