Piston - Pin Diameter

  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure .

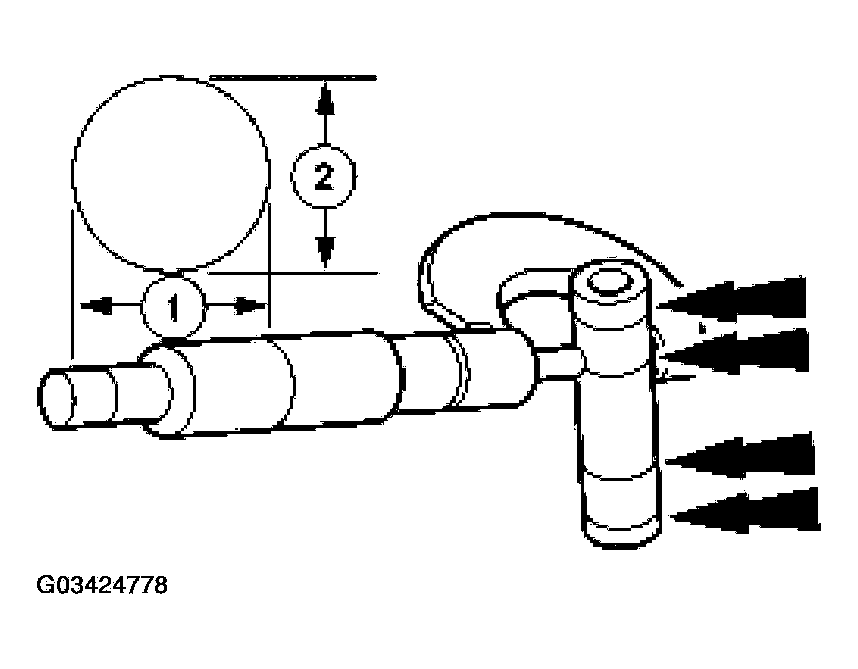

      Fig 1: Measuring Piston Pin Diameter
      G03424778Courtesy of FORD MOTOR CO.
