Valve - Spring Free Length

  1. Measure the free length of each valve spring.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure .

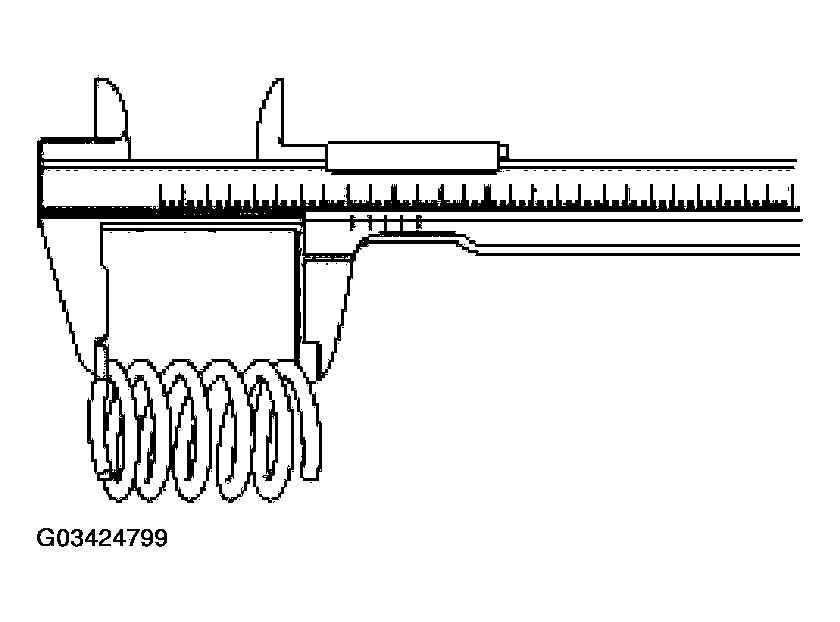

      Fig 1: Measuring Free Length Of Each Valve Spring
      G03424799Courtesy of FORD MOTOR CO.
