Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

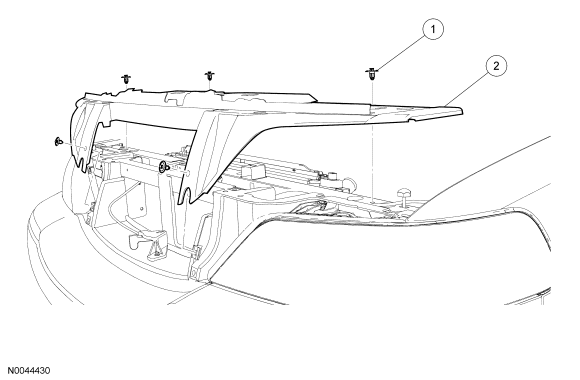

Fig 1: Identifying Headlamp Assembly Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705956	Radiator air deflector pin-type retainers (5 required)
2	8C291	Radiator air deflector

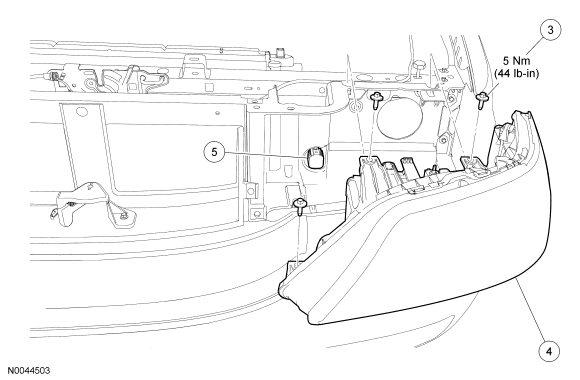

Fig 2: Identifying Headlamp Assembly Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	W503925	Headlamp assembly bolts (3 required)
4	13006/13005	Headlamp assembly (LH/RH)
5	-	Headlamp assembly electrical connector (part of 14290)
