Headlamp Bulb: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

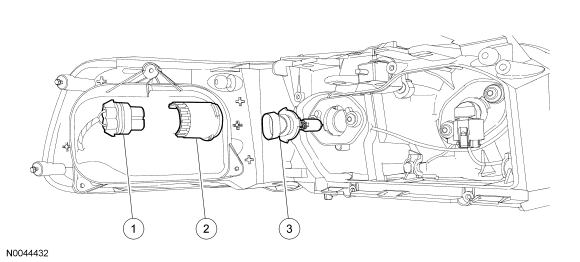

Fig 1: Halogen Low Beam Bulb
GF0019094Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Low beam bulb electrical connector (part of 13006/13005)
2 13N019 Low beam bulb retainer
3 13N021 Low beam bulb

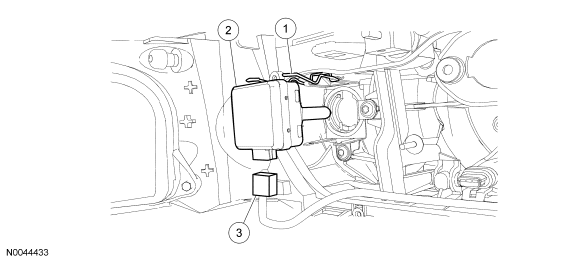

Fig 2: High Intensity Discharge (HID) Low Beam Bulb
GF0019095Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - HID bulb retainer
2 13N021 HID bulb
3 - HID bulb electrical connector (part of 13006/13005)

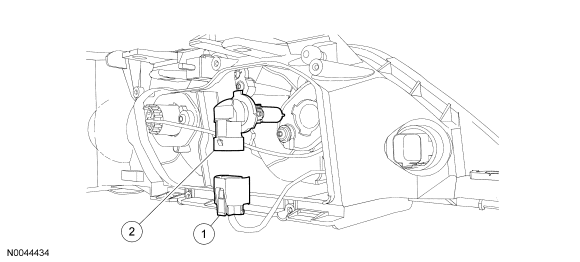

Fig 3: High Beam Bulb
GF0019096Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - High beam bulb electrical connector (part of 13006/13005)
2 13N021 High beam bulb
