Removal And Installation: Resistor: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the wiring harness connector.

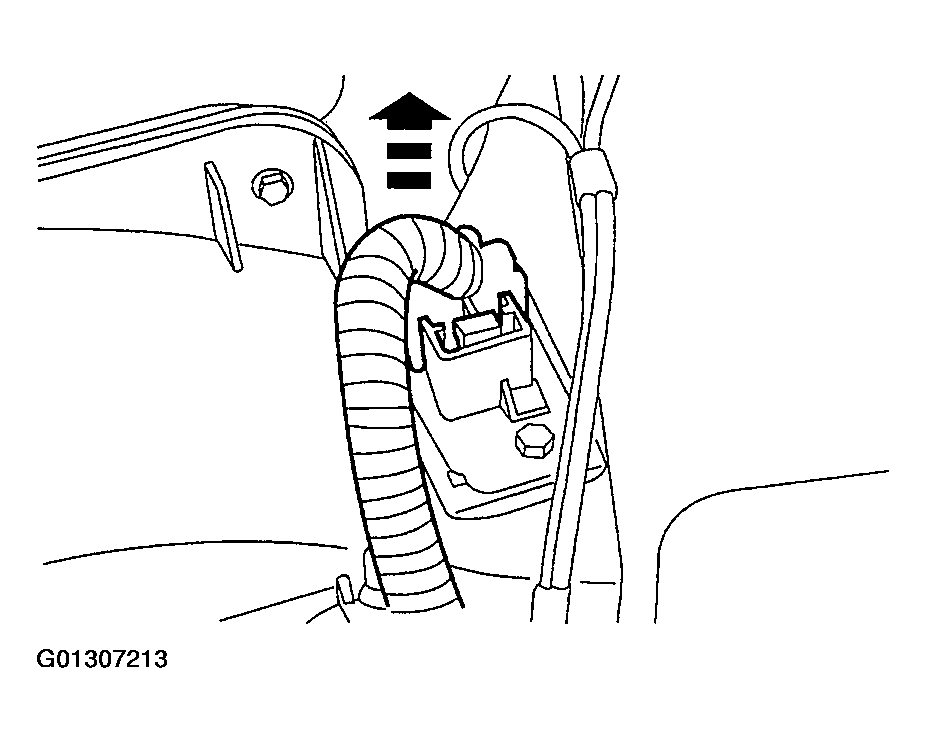

    Fig 1: Disconnecting Wiring Harness Connector
    G01307213Courtesy of FORD MOTOR CO.
  2. Remove the resistor.
    • Remove the screws.

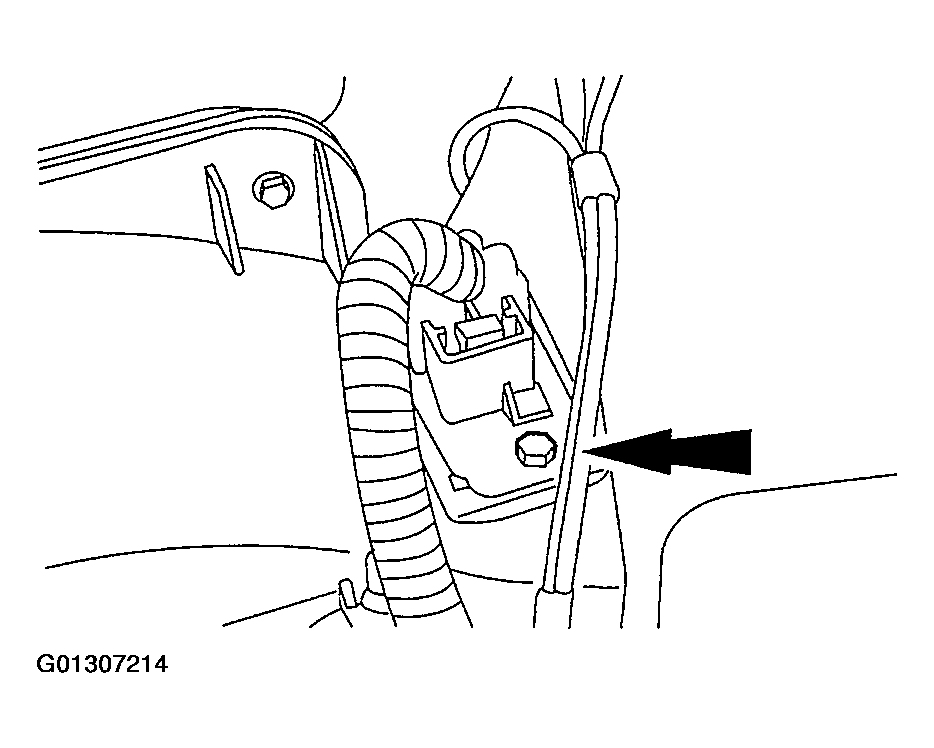

      Fig 2: Removing Resistor
      G01307214Courtesy of FORD MOTOR CO.
  3. Remove the resistor.
