Power Steering Gear Identification

CAUTION: Always use the ID code when ordering service parts.

The steering gear identification code is stamped into the housing.

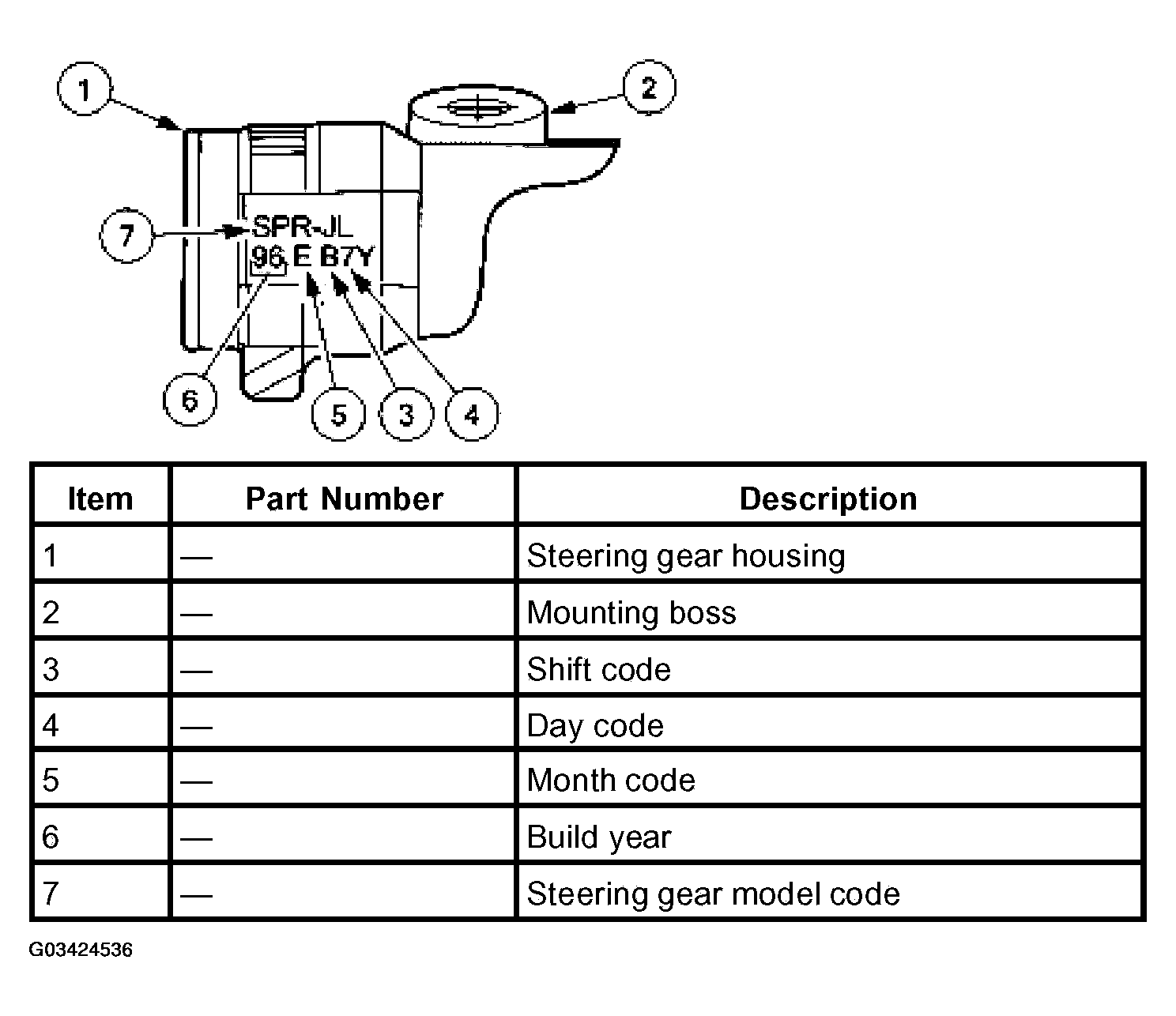

Fig 1: Identifying Steering Gear Identification Code Stamped Into Housing
G03424536Courtesy of FORD MOTOR CO.
