Steering Gear Mounting

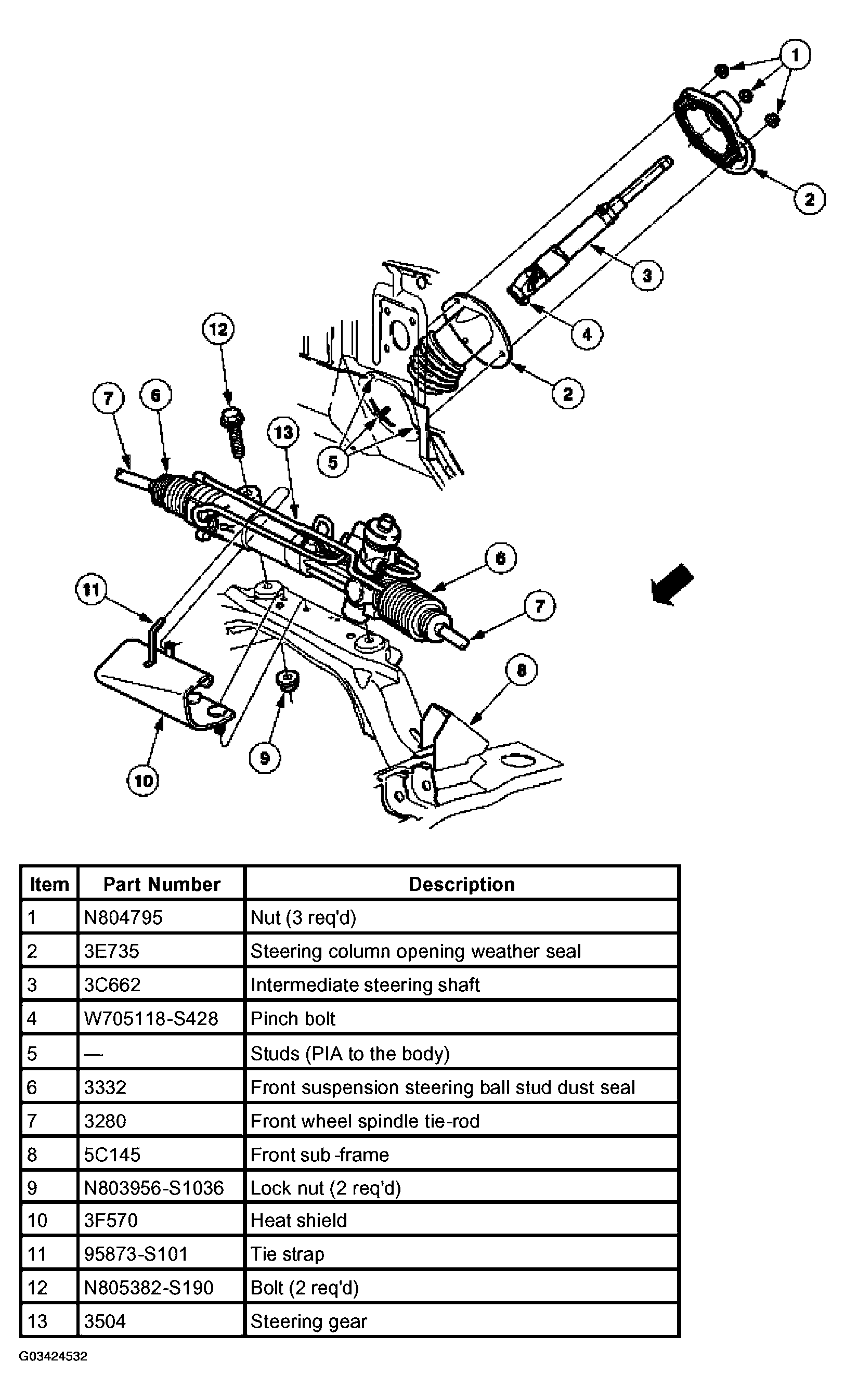

Fig 1: View Of Steering Gear Mounting Component
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
