Cooler - Fluid: Installation

    CAUTION: The power steering hoses and transmission fluid lines must be connected to transmission and power steering fluid cooler assembly as noted during removal to prevent power steering system and transmission failure.

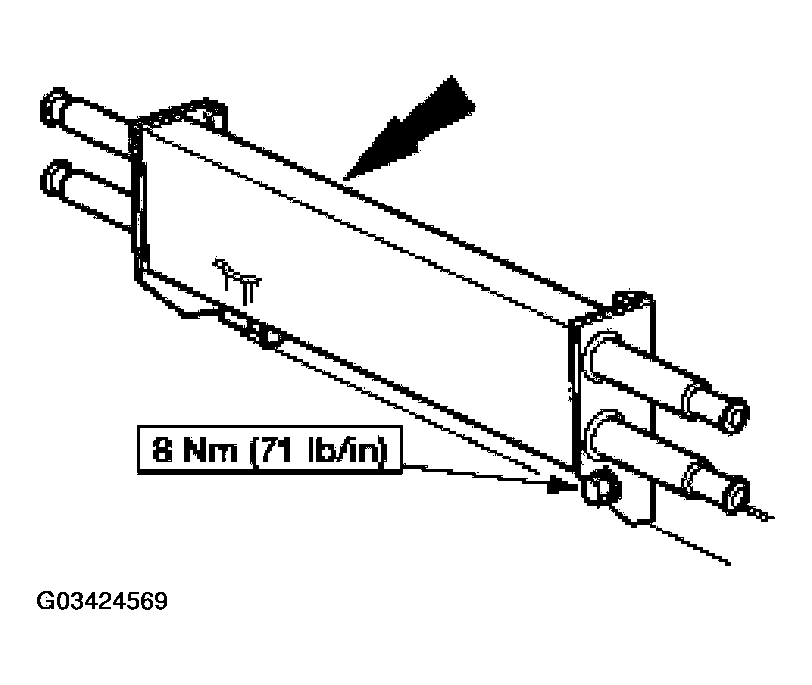

    Fig 1: Installing Transmission And Power Steering Fluid Cooler Assembly
    G03424569Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
  2. Fill and leak check the power steering system and transmission. Refer to STEERING SYSTEM-GENERAL INFORMATION .
