Cooler - Fluid: Removal

NOTE: The transmission and power steering fluid cooler assembly (3F749) is shown in this procedure. The removal and installation of the other power steering fluid cooler (3D746) is similar.
  1. Disconnect the battery ground cable.
  2. Remove the front bumper (17757).
  3. Label and disconnect the power steering hose (3A713), power steering hose (3493) and the transmission fluid lines.

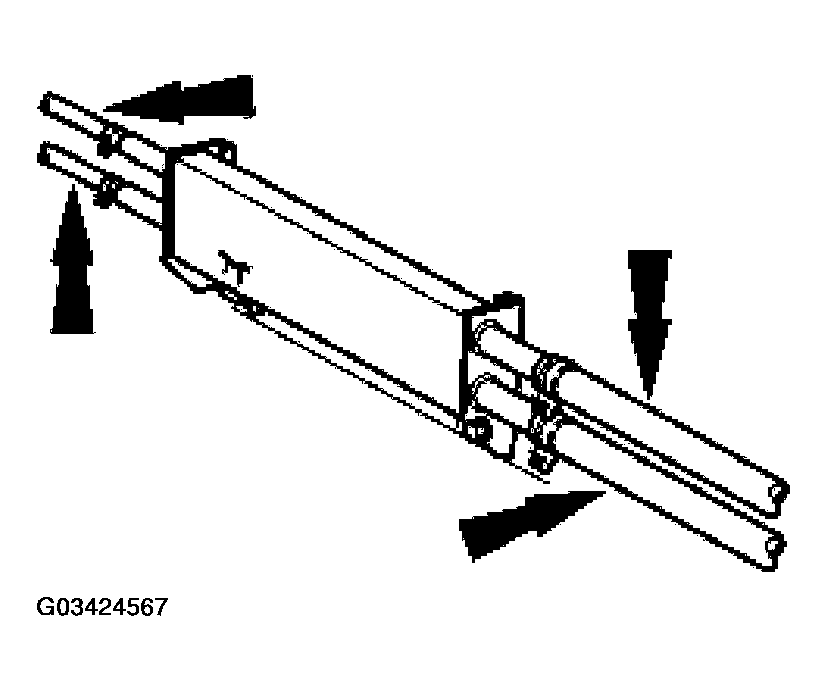

    Fig 1: Disconnecting Power Steering Hose And Transmission Fluid Lines
    G03424567Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the transmission and power steering fluid cooler assembly.

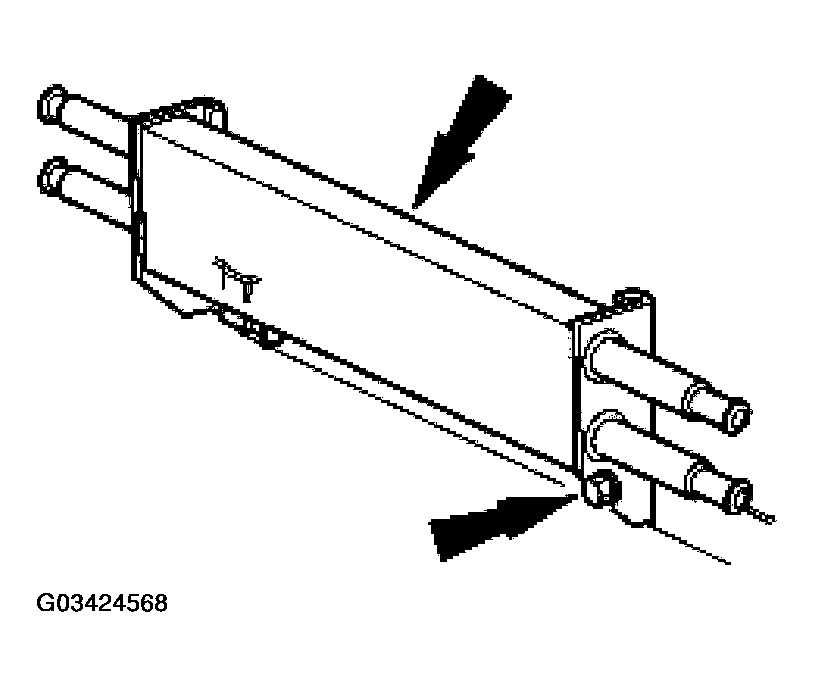

    Fig 2: Identifying Transmission And Power Steering Fluid Cooler Assembly
    G03424568Courtesy of FORD MOTOR CO.
