Removal And Installation: Hose: Installation

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

NOTE: When connecting a fitting with a Teflon(R) seal, a new seal must be installed.

Using the special tool, install a Teflon(R) seal over a fitting.
- Fill and leak check the system. Refer to STEERING SYSTEM-GENERAL INFORMATION .

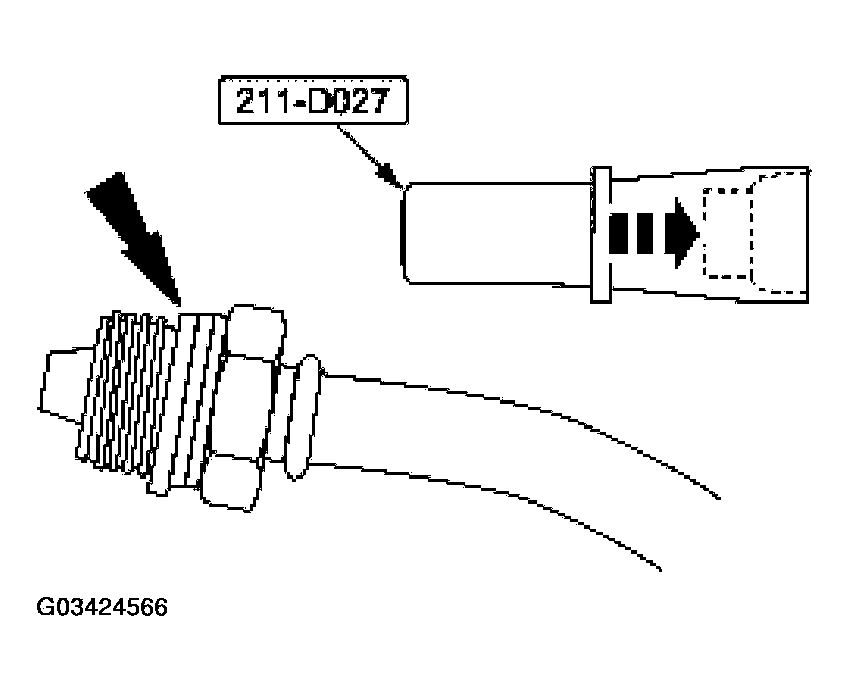

  Fig 1: Installing A Teflon(R) Seal Over A Fitting
  Courtesy of FORD MOTOR CO.
