Pulley - CIII Pump: Installation

  1. Using the special tool, install the power steering pump pulley.
    • Inspect the power steering pump pulley for paint marks in the web area near the hub. If there are two paint marks, discard and install a new power steering pump pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area near the hub.

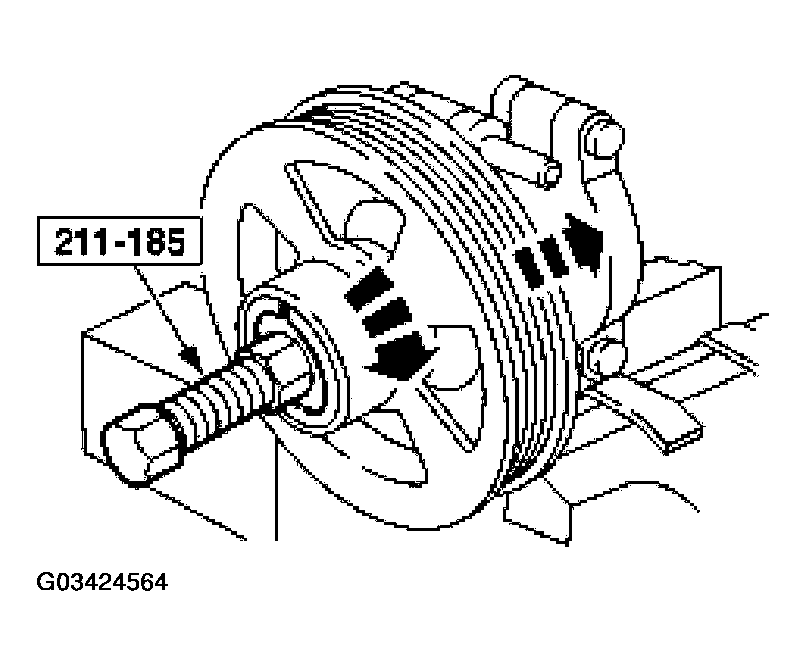

      Fig 1: Installing Power Steering Pump Pulley
      G03424564Courtesy of FORD MOTOR CO.
    • Install the power steering pump. Refer to PUMP - CIII  .
