Pump - CIII: Removal

  1. Remove the drive belt.
  2. Disconnect the power steering reservoir pump hose (3E525).

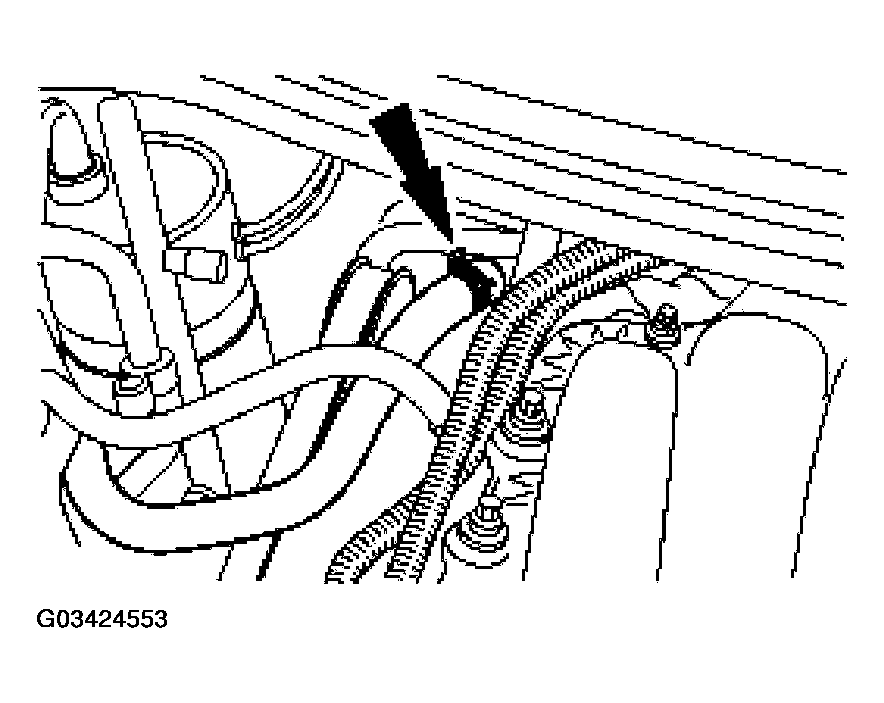

    Fig 1: Disconnecting Power Steering Reservoir Pump Hose (3E525)
    G03424553Courtesy of FORD MOTOR CO.
  3. Disconnect the power steering hose (3A719). Remove and discard the seal.

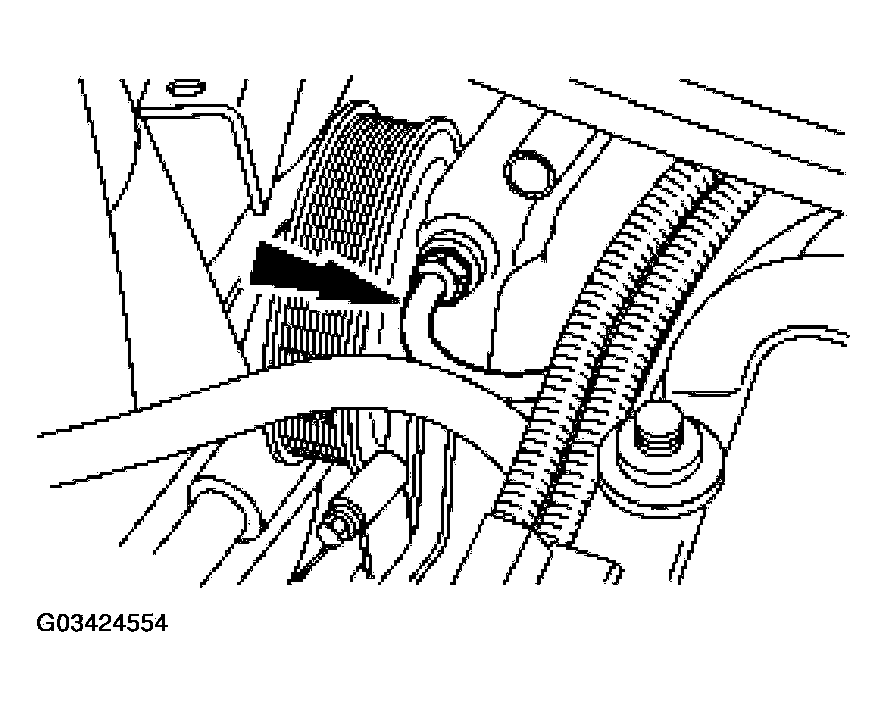

    Fig 2: Disconnecting Power Steering Hose (3A719)
    G03424554Courtesy of FORD MOTOR CO.
  4. Remove the four bolts, two brackets and power steering pump (3A674).

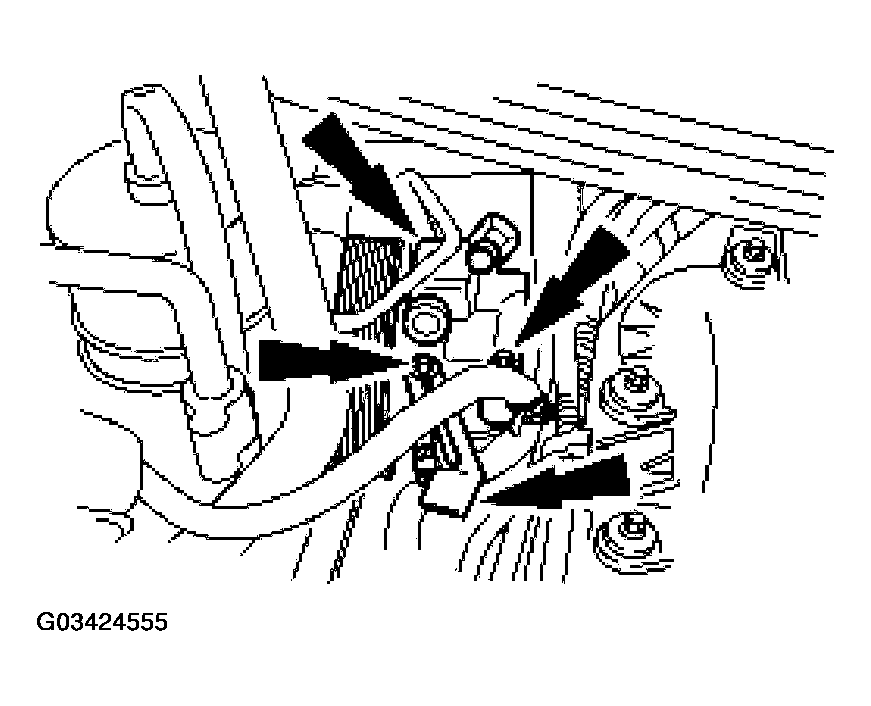

    Fig 3: Removing Bolts, Brackets And Power Steering Pump (3A674)
    G03424555Courtesy of FORD MOTOR CO.
  5. Remove the power steering pump pulley. Refer to PULLEY - CIII PUMP  .
