Pinpoint Test A: Steering System Noise

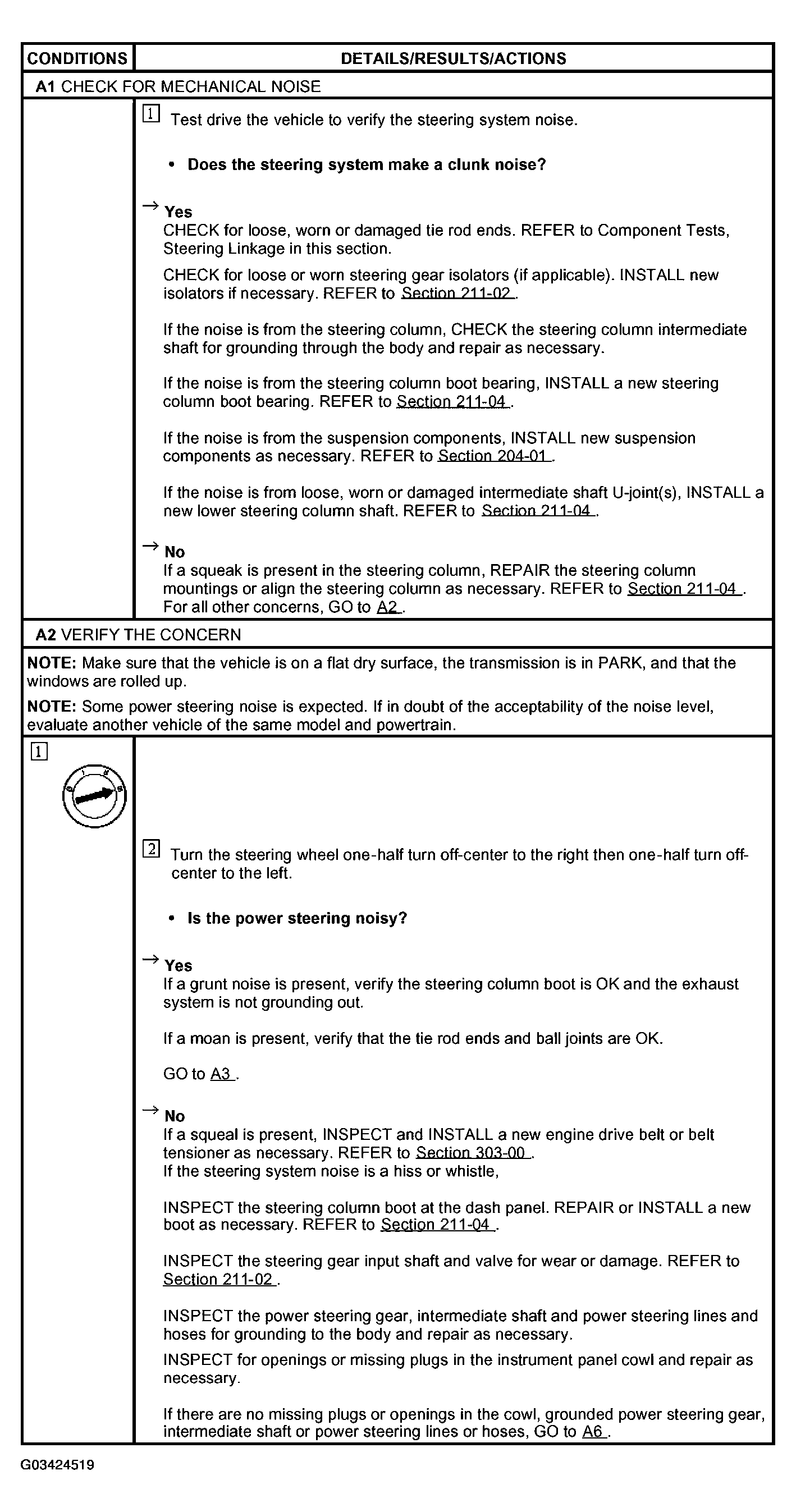

Fig 1: Identifying Pinpoint Test Chart A: Steering System Noise (A1 & A2)
G03424519Courtesy of FORD MOTOR CO.

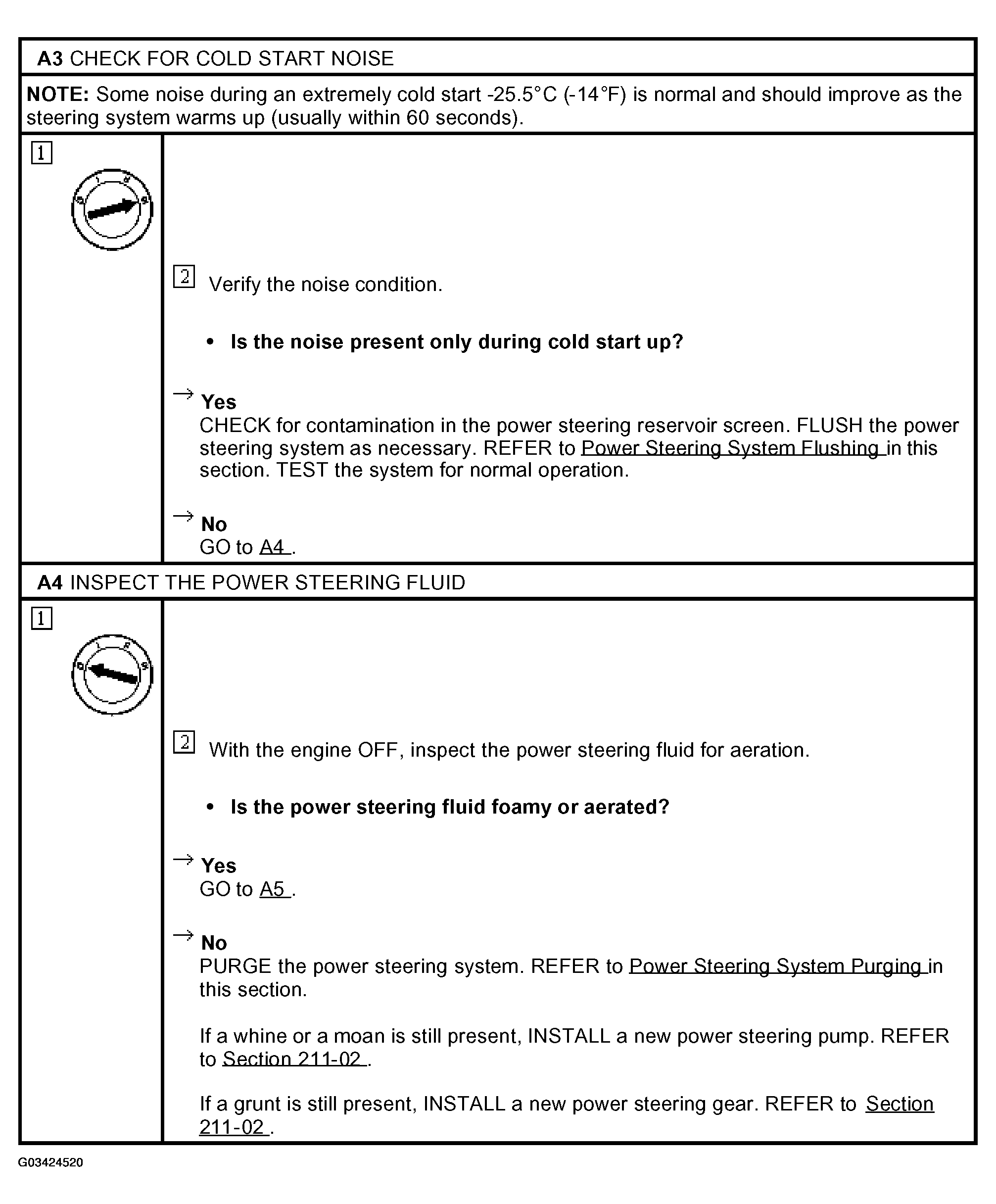

Fig 2: Identifying Pinpoint Test Chart A: Steering System Noise (A3 & A4)
G03424520Courtesy of FORD MOTOR CO.

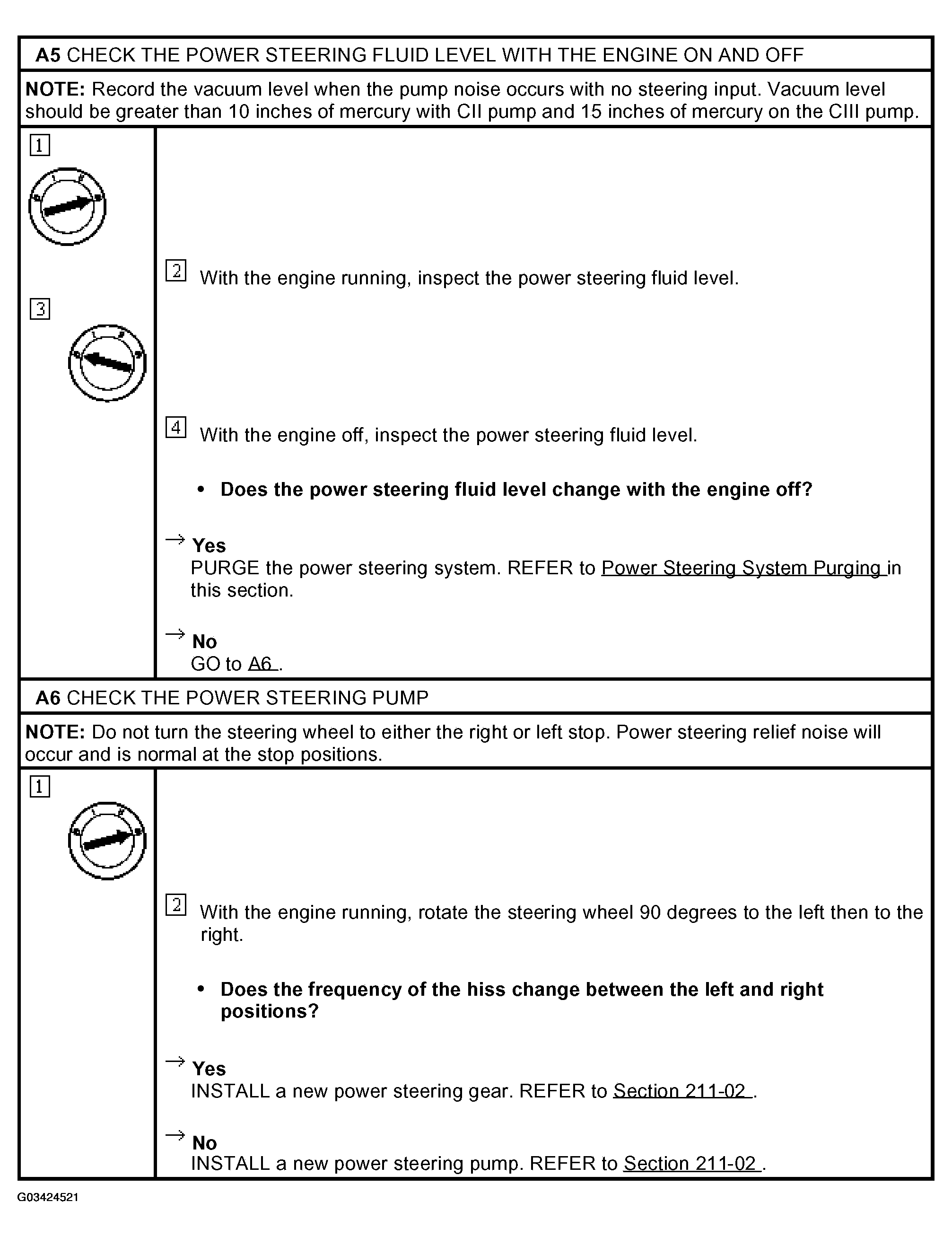

Fig 3: Identifying Pinpoint Test Chart A: Steering System Noise (A5 & A6)
G03424521Courtesy of FORD MOTOR CO.
