Pinpoint Test B: Steering Is Very Difficult/Very Easy

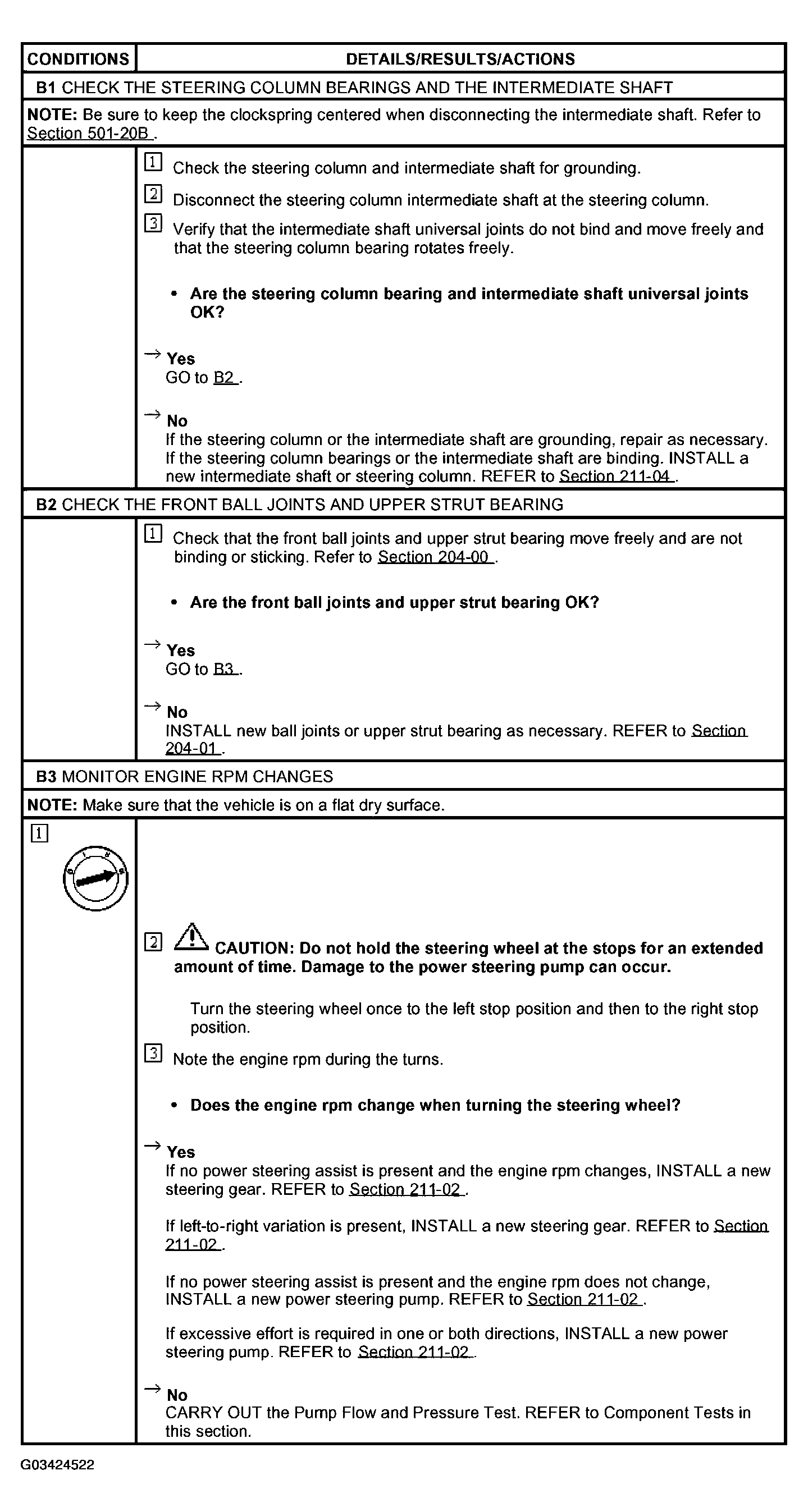

Fig 1: Identifying Pinpoint Test Chart B: Steering Is Very Difficult/Very Easy (B1-B3)
G03424522Courtesy of FORD MOTOR CO.
