Pinpoint Test D: Steering System Drift/Pull/Wander

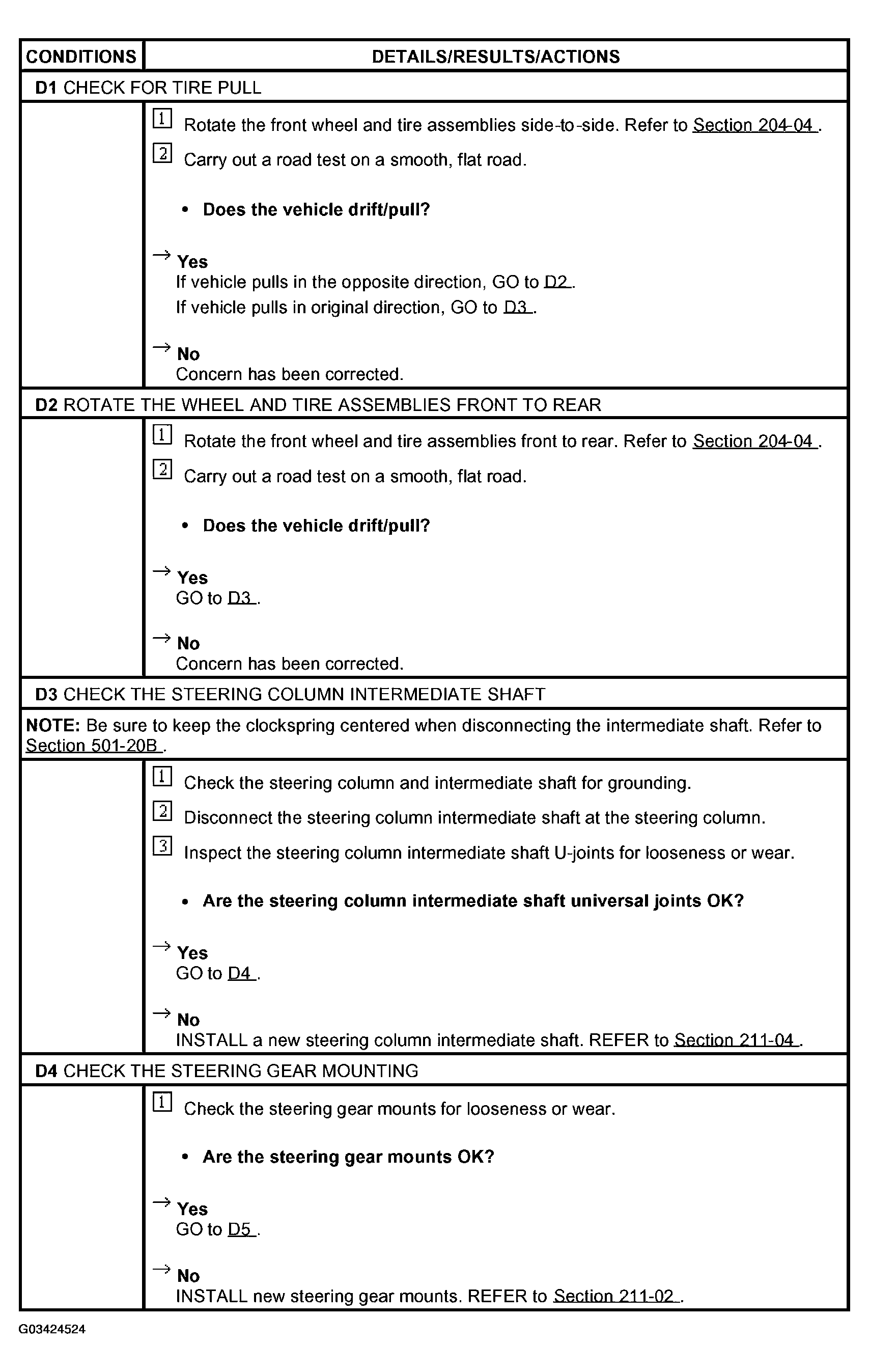

Fig 1: Identifying Pinpoint Test Chart D: Steering System Drift/Pull/Wander (D1-D4))
G03424524Courtesy of FORD MOTOR CO.

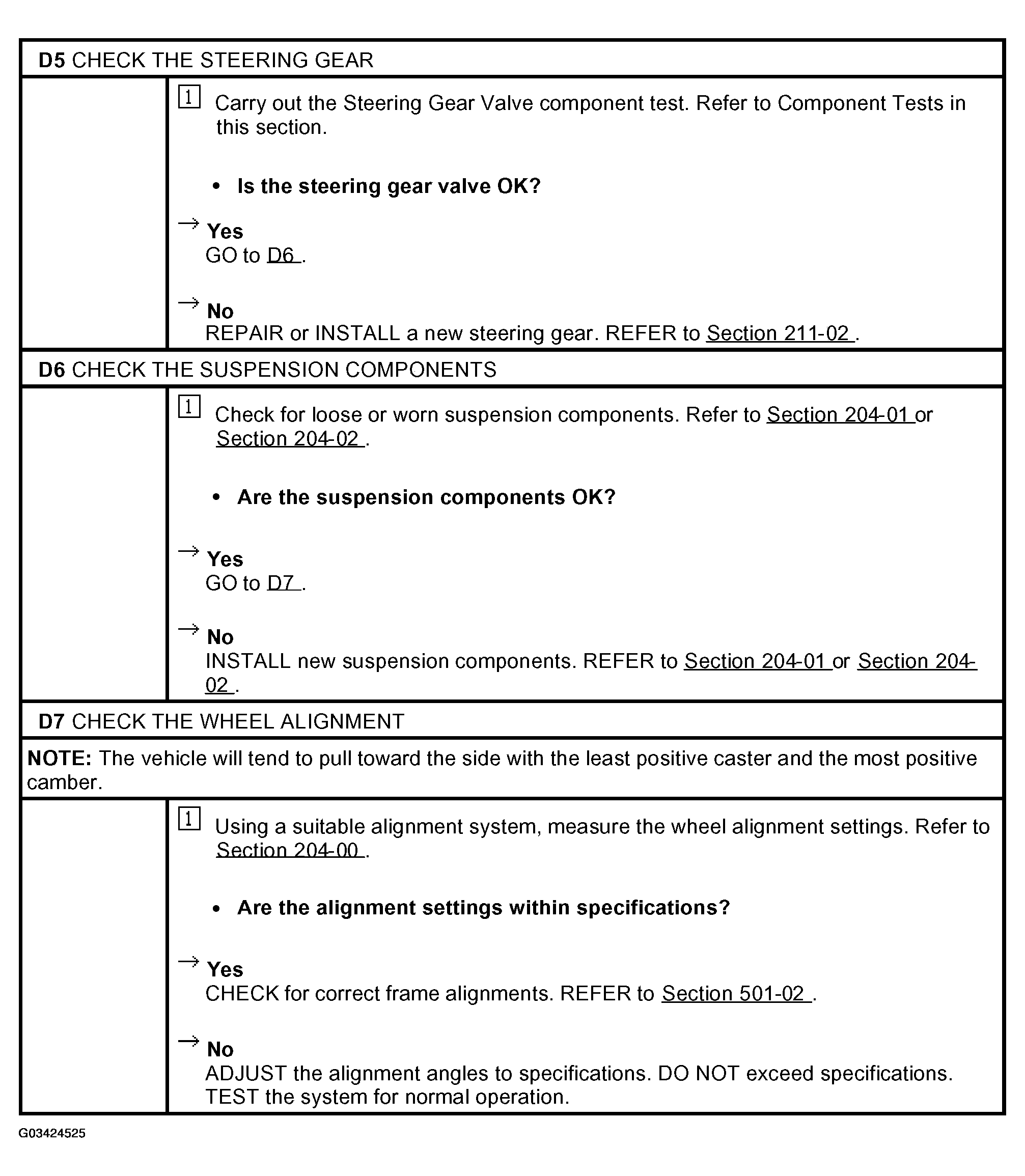

Fig 2: Identifying Pinpoint Test Chart D: Steering System Drift/Pull/Wander (D5-D7)
G03424525Courtesy of FORD MOTOR CO.
