Transaxle Connector Layouts

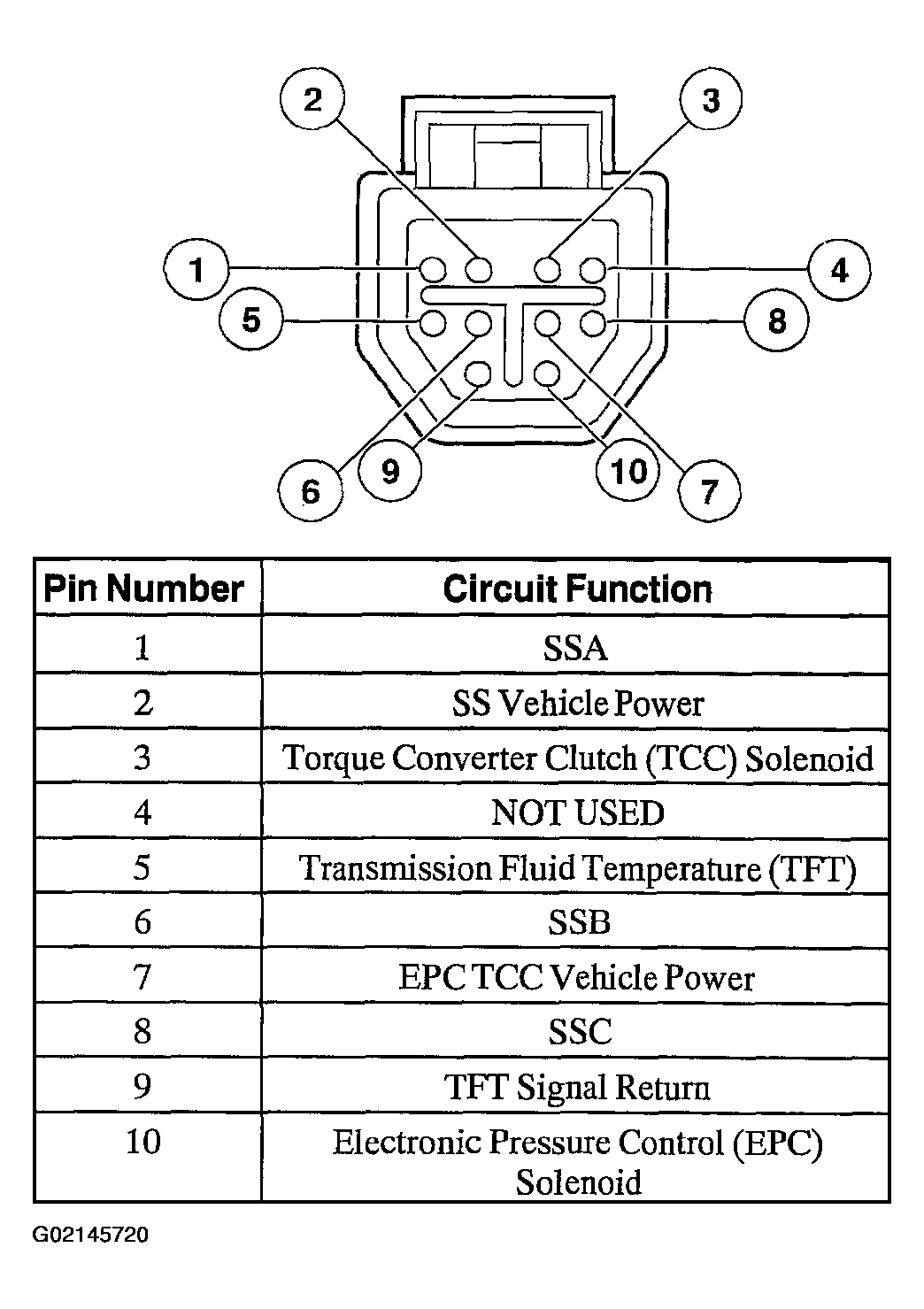

Fig 1: Locating Transaxle Vehicle Harness Connector Terminals

Courtesy of FORD MOTOR CO.

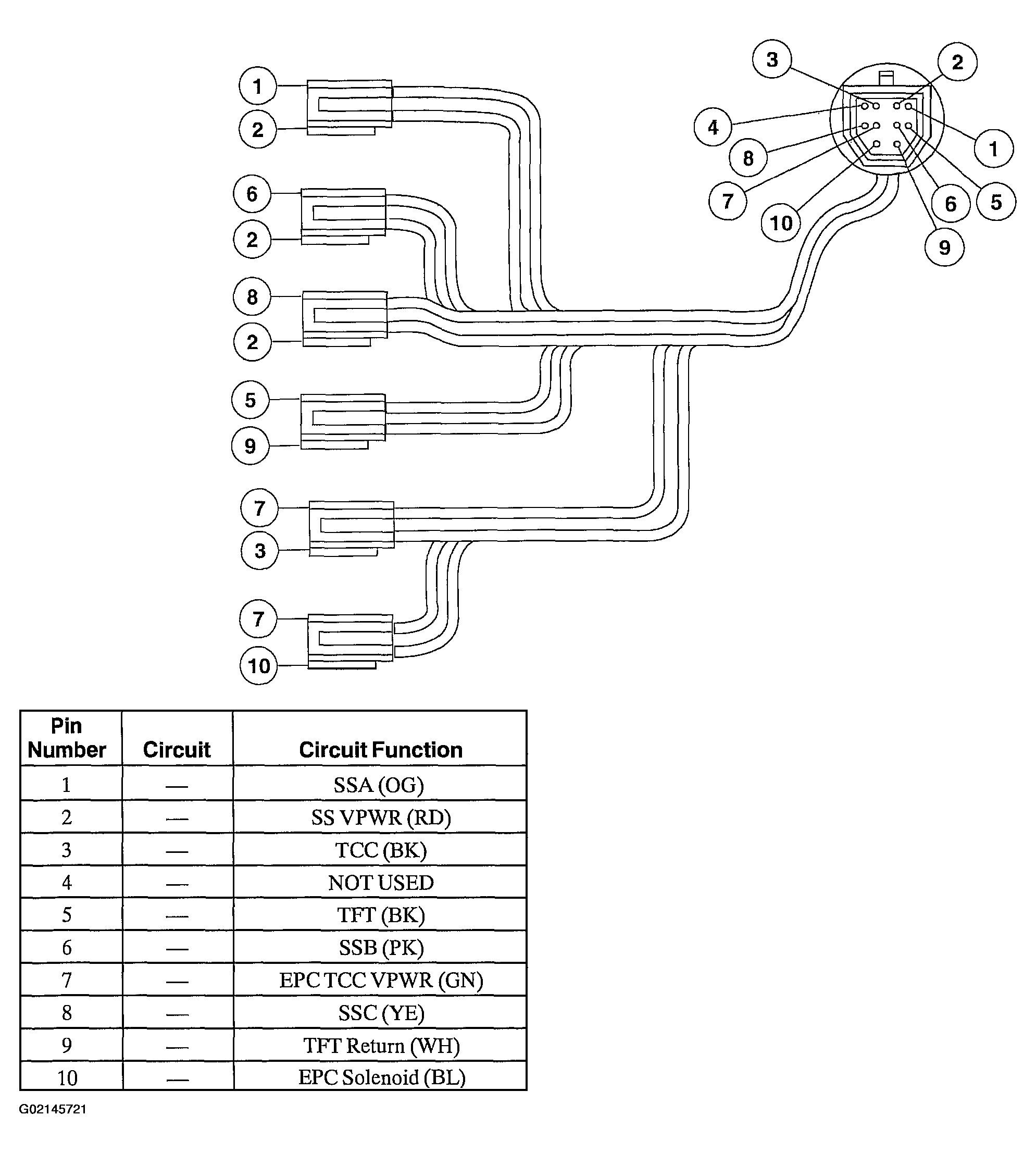

Fig 2: Transaxle Internal Harness Diagram

Courtesy of FORD MOTOR CO.

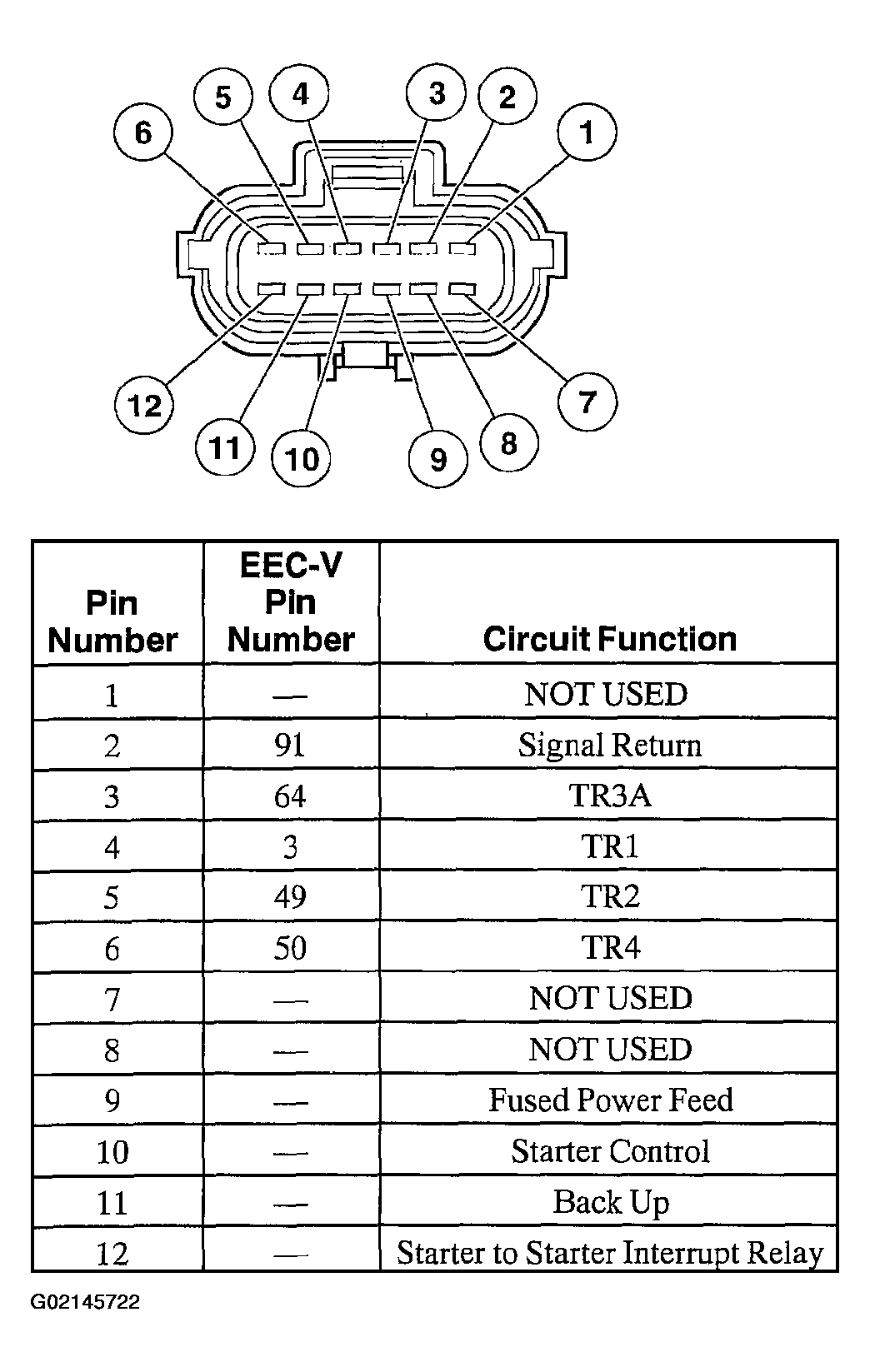

Fig 3: Locating Digital Transmission Range (TR) Sensor Connector Terminals

Courtesy of FORD MOTOR CO.

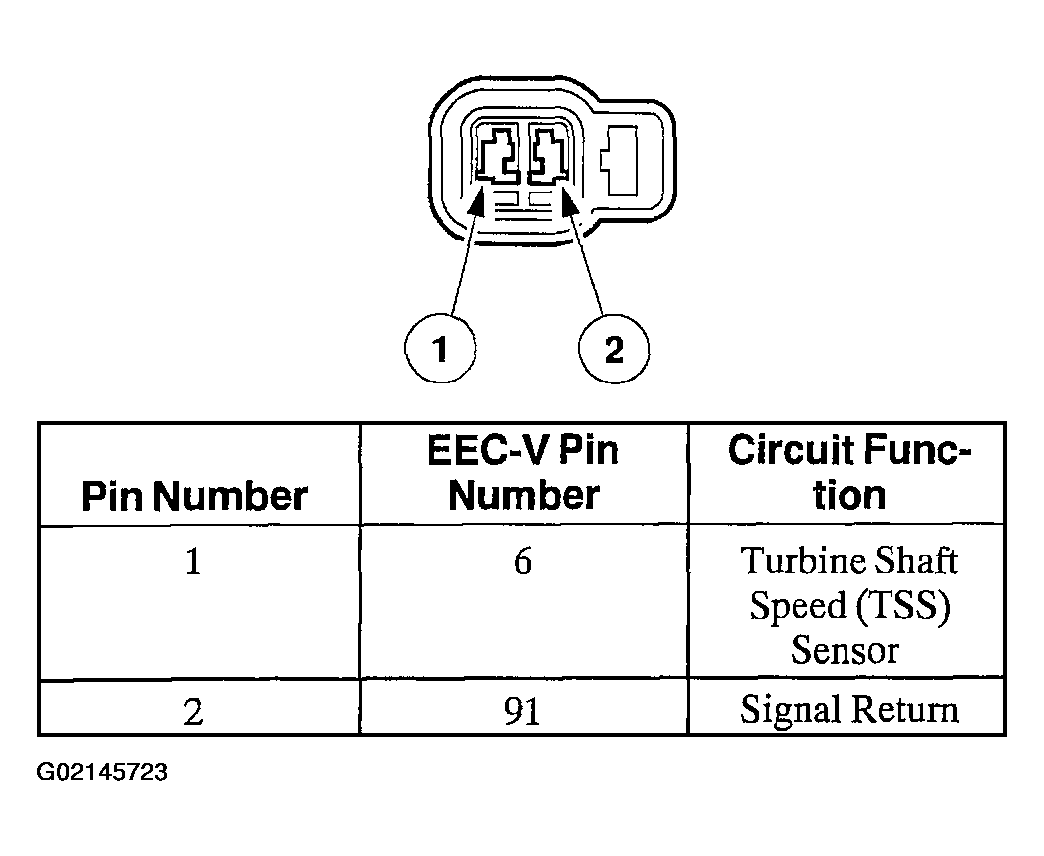

Fig 4: Locating Turbine Shaft Speed Sensor Connector Terminals

Courtesy of FORD MOTOR CO.

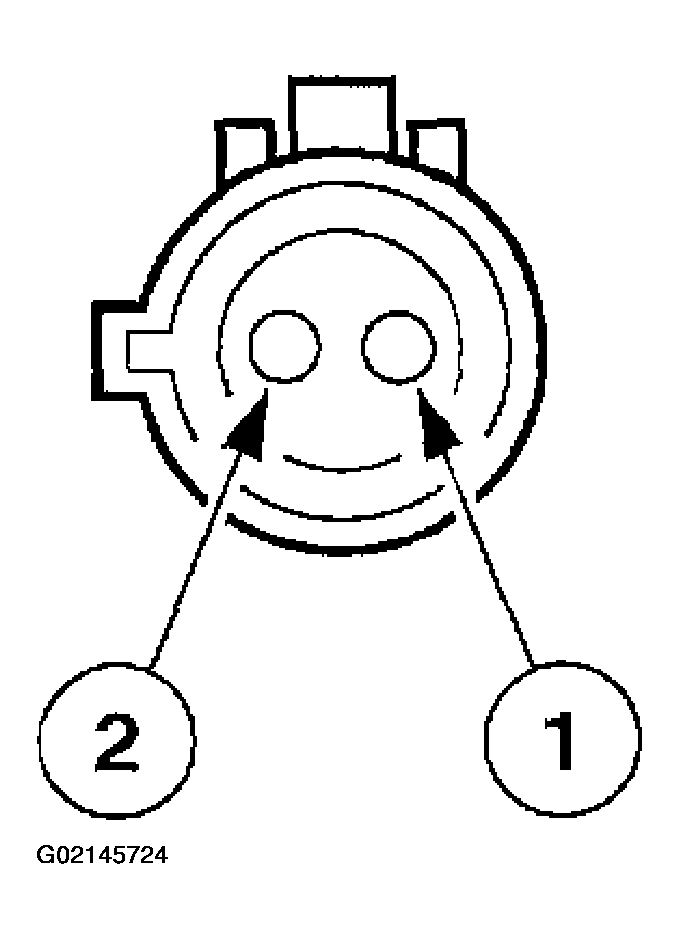

Fig 5: Locating Output Shaft Speed Sensor Connector Terminals

Courtesy of FORD MOTOR CO.

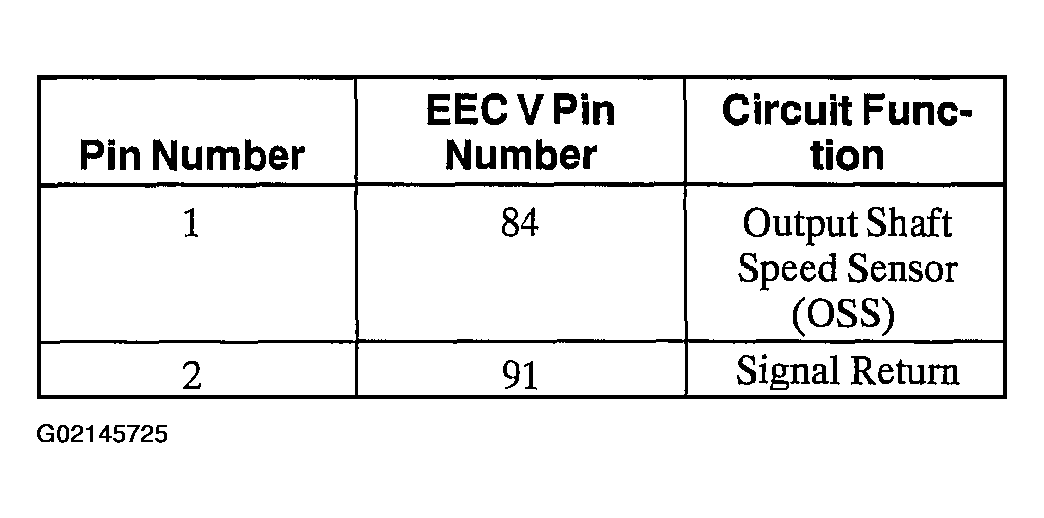

Fig 6: Output Shaft Speed Sensor Connector Pin Number And Circuit Functions Chart

Courtesy of FORD MOTOR CO.
