Low-Intermediate One-Way Clutch: Assembly

NOTE: Before installing, clean and inspect the low-intermediate one-way clutch rollers and cage for cracks, brinelling, or scoring. Install new components if necessary.

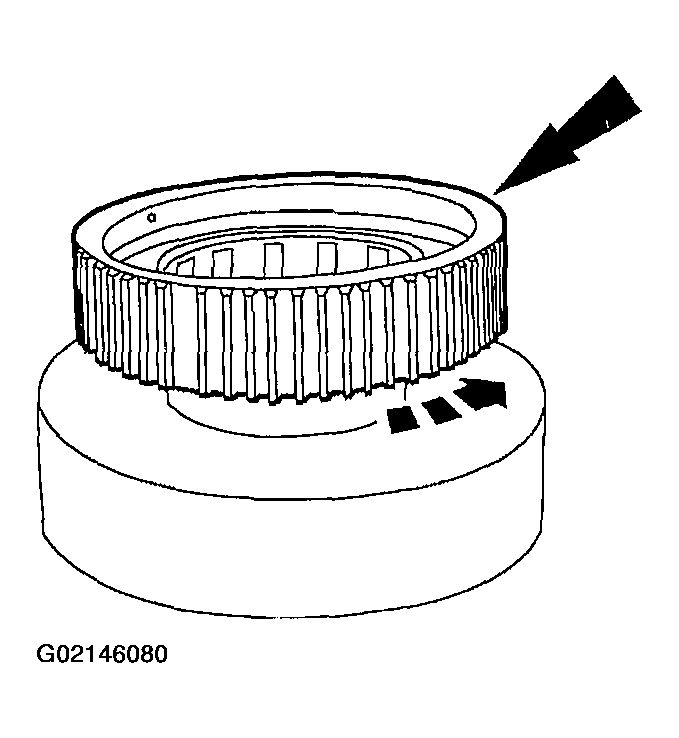

Fig 1: Installing Low-Intermediate One-Way Clutch Roller And Cage

Courtesy of FORD MOTOR CO.

Install the low-intermediate one-way clutch roller and cage. Rotate counterclockwise to lock in place.
Clean and inspect the rear sun gear assembly.
1. Inspect the bushing.
2. Inspect the inner race.
3. Inspect the bearing.

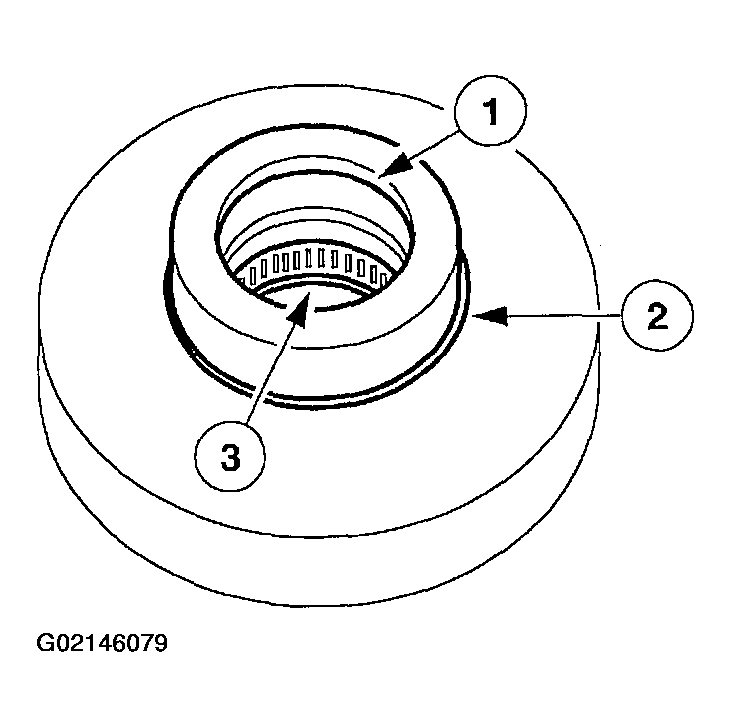

Fig 2: Inspecting Rear Sun Gear Assembly
Courtesy of FORD MOTOR CO.

NOTE: The outer splined race should rotate counterclockwise and hold clockwise.

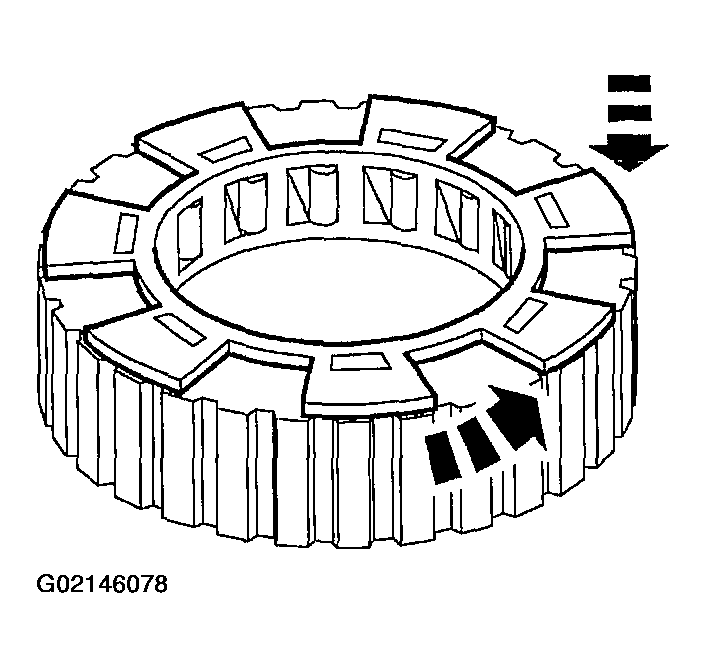

Fig 3: Installing Low-Intermediate One-Way Clutch Outer Race

Courtesy of FORD MOTOR CO.

Install the low-intermediate one-way clutch outer race.
